Technical Details
| Case/Package | TO-252-3 |
| Continuous Drain Current (ID) | 9.4A |
| Current Rating | -9.4A |
| Drain to Source Breakdown Voltage | -100V |
| Drain to Source Resistance | 290mΩ |
| Drain to Source Voltage (Vdss) | 100V |
| Element Configuration | Single |
| Fall Time | 60ns |
| Gate to Source Voltage (Vgs) | 30V |
| Input Capacitance | 800pF |
| Lead Free | Lead Free |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 50W |
| Min Breakdown Voltage | 100V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Power Dissipation | 2.5W |
| Rds On Max | 290mΩ |
| REACH SVHC | No |
| Rise Time | 160ns |
| RoHS | Compliant |
| Turn-Off Delay Time | 35ns |
| Voltage Rating (DC) | -100V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

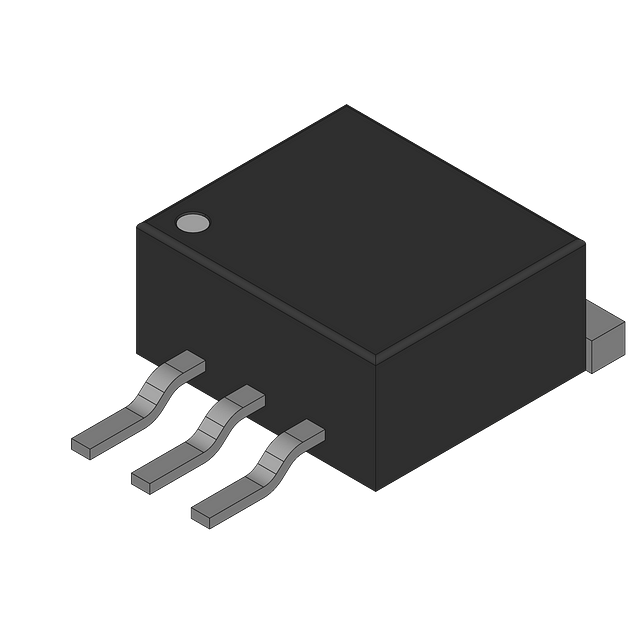

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| Fairchild Semiconductor | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| Fairchild Semiconductor | Obsolete | ||
| Fairchild Semiconductor | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | EOL | ||
| Diodes Inc. | Obsolete |
