Technical Details
| Breakdown Voltage | -25V |
| Case/Package | TO-92 |
| Contact Plating | Tin |
| Continuous Drain Current (ID) | 100mA |
| Country of Origin | Mainland China |
| Current Rating | 100mA |
| Drain to Source Resistance | 8Ω |
| Drain to Source Voltage (Vdss) | 25V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Gate to Source Voltage (Vgs) | -25V |
| Height | 5.33mm |
| Introduction Date | 1997-01-01 |
| Lead Free | Lead Free |
| Length | 5.2mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 310mW |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Bulk |
| Power Dissipation | 625mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080 |
| Voltage Rating (DC) | 25V |
| Weight | 201mg |
| Width | 4.19mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

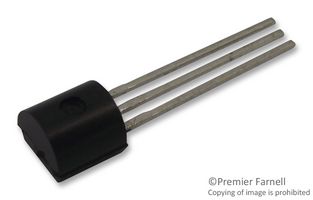

Images
element14 APAC
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| element14 APAC |
SG: 0
|
$ | 0.6253 | 0.5934 | 0.5934 | 0.4515 | 0.3187 | 0.2694 | ||
