J109 - onsemi
Fairchild Semiconductor J109JFET Transistor, Jfet, -25 V, 40 Ma, 6 V, TO-92, Jfet
Technical Details
| Breakdown Voltage | -25V |
| Case/Package | TO-92-3 |
| China RoHS | Compliant |
| Continuous Drain Current (ID) | 40mA |
| Country of Origin | Mainland China |
| Current Rating | 40mA |
| Drain to Source Resistance | 12Ω |
| Drain to Source Voltage (Vdss) | 25V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Gate to Source Voltage (Vgs) | -25V |
| Height | 5.33mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.21.00.95 |
| Introduction Date | 1987-01-01 |
| Lead Free | Lead Free |
| Length | 4.58mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 400mW |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Bulk |
| Power Dissipation | 625mW |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Voltage Rating (DC) | 25V |
| Weight | 201mg |
| Width | 3.86mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

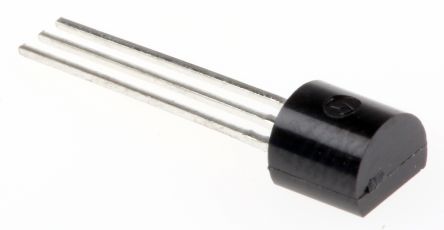

Images
RS
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| Vishay | Obsolete | ||
| onsemi | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| InterFET | Unknown | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete |
