Technical Details
| Breakdown Voltage | -25V |
| Case/Package | TO-92 |
| China RoHS | Non-Compliant |
| Color | Orange |
| Continuous Drain Current (ID) | 60mA |
| Country of Origin | Thailand |
| Current Rating | 10mA |
| Drain to Source Breakdown Voltage | 25V |
| Drain to Source Voltage (Vdss) | 25V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Frequency | 450MHz |
| Gain | 12dB |
| Gate to Source Voltage (Vgs) | -25V |
| Height | 5.33mm |
| Introduction Date | 1994-10-01 |
| Lead Free | Lead Free |
| Length | 5.2mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 625mW |
| Min Breakdown Voltage | 25V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Noise Figure | 3dB |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Bulk |
| Power Dissipation | 350mW |
| REACH SVHC | No |
| RoHS | Compliant |
| Termination | Through Hole |
| Test Current | 10mA |
| Test Voltage | 10V |
| Voltage Rating | 25V |
| Voltage Rating (DC) | 25V |
| Weight | 201mg |
| Width | 4.19mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

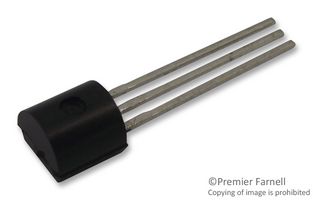

Images
element14 APAC
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| element14 APAC |
SG: 0
|
$ | 0.5388 | 0.3415 | 0.2239 | 0.1093 | 0.1093 | |||
