Circuit Protection > TVS Diodes

LC03-6R2G - onsemi

LC03-6R2 Series 6.8 V 2000 W Low Capacitance TVS for High-Speed Data Interface

Technical Details

Breakdown Voltage	6.8V
Capacitance	25pF
Case/Package	SOIC
China RoHS	Compliant
Clamping Voltage	20V
Contact Plating	Tin
Depth	4mm
Direction	Unidirectional
Element Configuration	Dual
ESD Protection	Yes
Height	1.5mm
Lead Free	Lead Free
Leakage Current	20µA
Length	5mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Operating Temperature	150°C
Max Power Dissipation	2kW
Max Reverse Leakage Current	20µA
Min Breakdown Voltage	6.8V
Min Operating Temperature	-55°C
Number of Bidirectional Channels	2
Number of Elements	1
Number of Pins	8
Number of Terminals	8
Operating Supply Voltage	6.8V
Packaging	Tape and Reel
Peak Pulse Current	100A
Peak Pulse Power	2kW
Peak Reverse Current	20µA
Polarity	Unidirectional
Power Dissipation	2kW
Power Line Protection	No
Radiation Hardening	No
REACH SVHC	Yes
Reverse Standoff Voltage	5V
RoHS	Compliant
Schedule B	8536300000\|8536300000\|8536300000\|8536300000\|8536300000
Termination	SMD/SMT
Test Current	1mA
Width	4mm
Working Voltage	5V

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

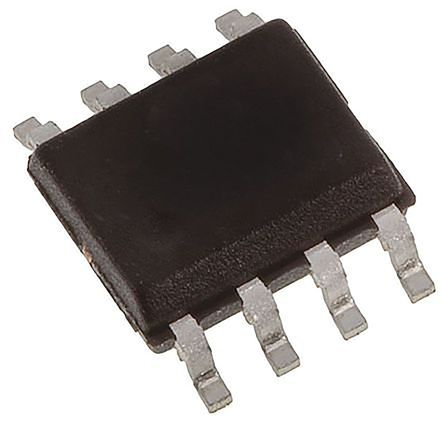

onsemi LC03-6R2G | Future Electronics

Future Electronics

Datasheets

Future Electronics

Future Electronics

Future Electronics

Lifecycle Status Indicator

Production

Symbol

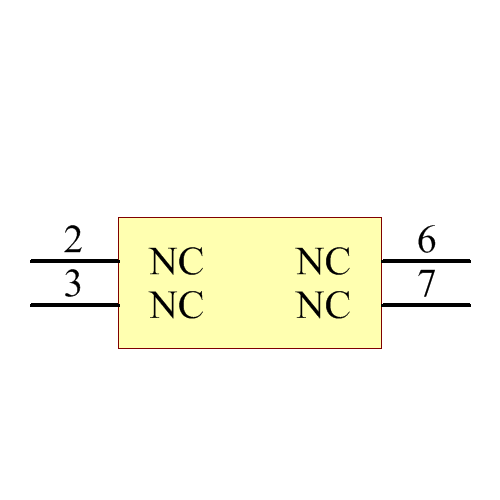

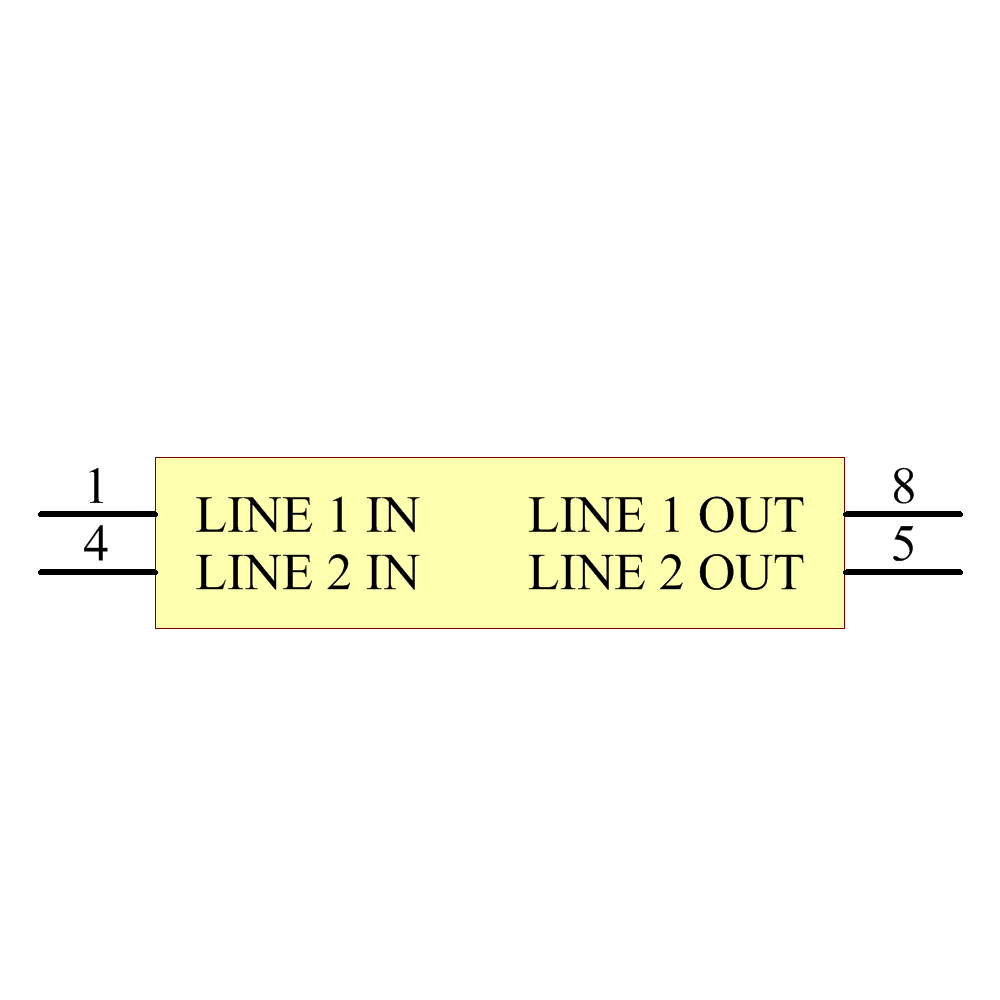

LC03-6R2G Symbol - onsemi

LC03-6R2G Symbol - onsemi

LC03-6R2G Symbol - onsemi

LC03-6R2G Symbol - onsemi

LC03-6R2G Symbol - onsemi

LC03-6R2G Symbol - onsemi

LC03-6R2G Symbol - onsemi

LC03-6R2G Symbol - onsemi

‹ ›

Footprint

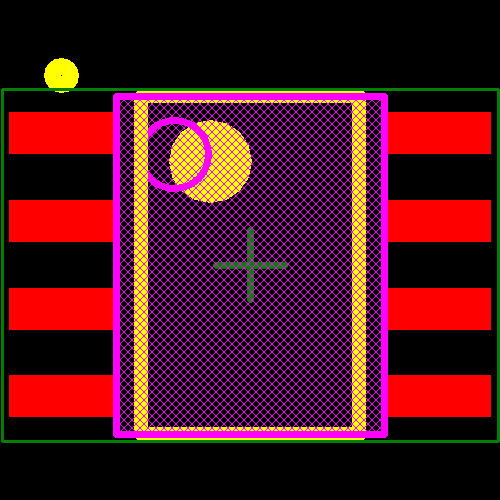

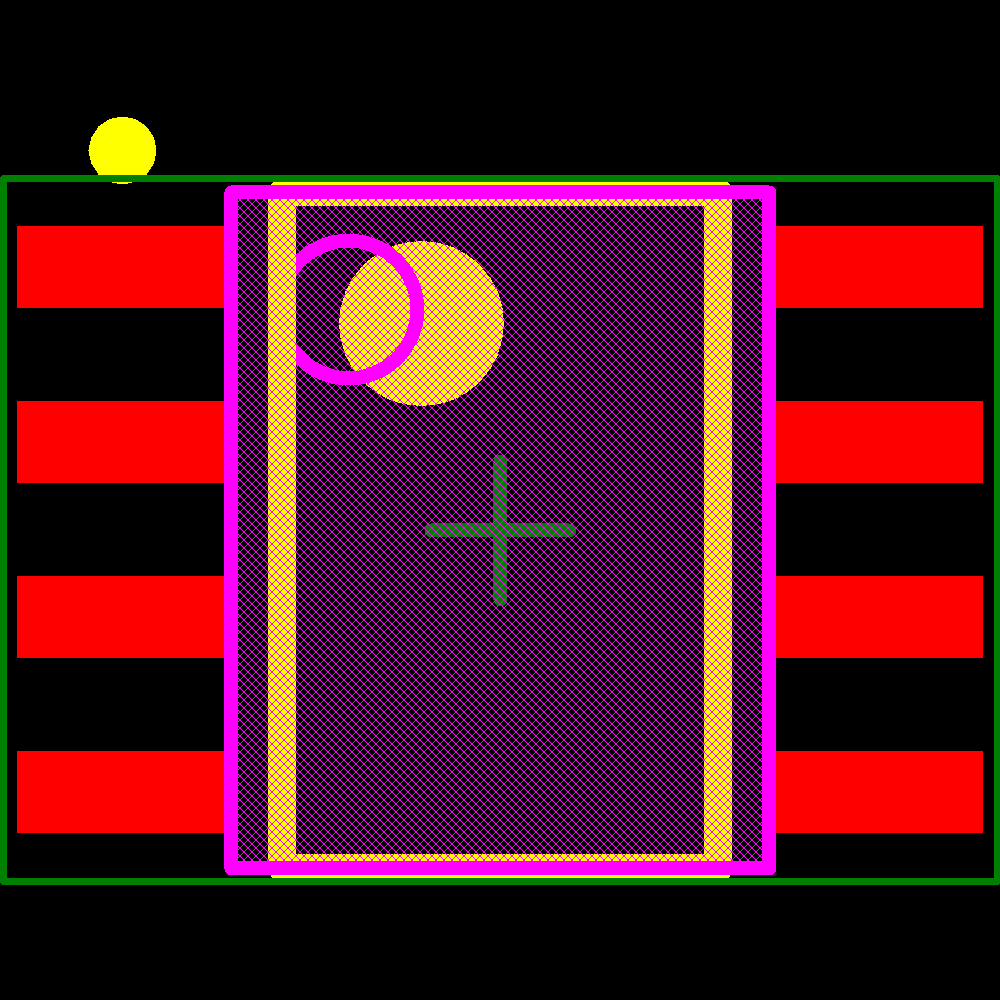

LC03-6R2G Footprint - onsemi
