Integrated Circuits (ICs)  >  Power Management ICs  >  Voltage Regulators - Linear

onsemi - LM2576D2T-005

LM2576D2T-005 - onsemi

Contains Lead BUCK GULL WING Not Qualified Linear Voltage Regulator IC 125C 7.5A 63kHz 10.02mm

 Datasheets

Technical Details

Case/Package TO-263
China RoHS Non-Compliant
Country of Origin Malaysia
Export Control Classification Number (ECCN) Code EAR99
Height - Seated (Max) 4.826mm
Harmonized Tariff Schedule (HTS) Code 8542.39.00.60
Introduction Date 2000-08-27
Lead Free Contains Lead
Length 10.02mm
Lifecycle Status Obsolete
Max Input Voltage 40V
Max Operating Temperature 125°C
Max Output Current 7.5A
Max Output Voltage 5.25V
Max Switching Frequency 63kHz
Min Input Voltage 8V
Min Operating Temperature -40°C
Min Output Voltage 4.75V
Nominal Input Voltage 12V
Nominal Output Voltage 5V
Number of Circuits 1
Number of Terminals 5
REACH SVHC No
RoHS Non-Compliant
Temperature Grade Automotive
Terminal Pitch 1.702mm
Topology Buck
Width 9.1945mm

Compliance

   RoHS : Unconfirmed
   REACH SVHC : No

Images

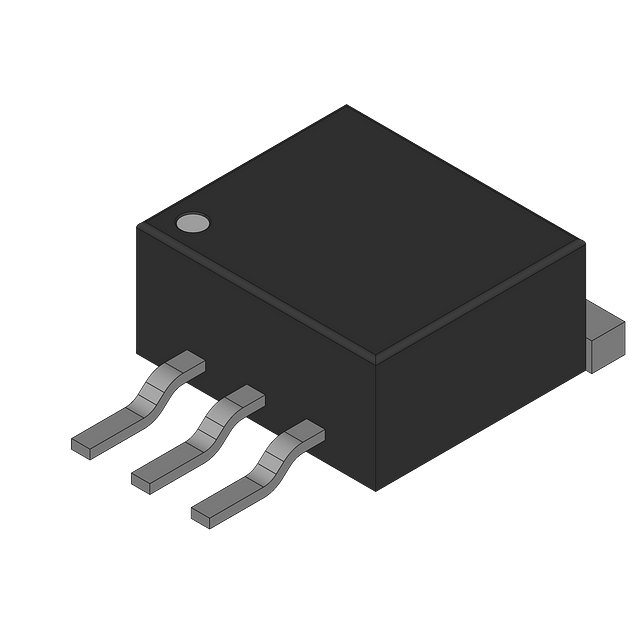

onsemi LM2576D2T-005 | Rochester Electronics

Rochester Electronics

Datasheets

 Rochester Electronics
 Verical
 Verical

Lifecycle Status Indicator

   Obsolete

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
onsemi
LM2576D2T-005G
Production
onsemi
LM2576D2TR4-005
Obsolete
Micrel
LM2576-5.0BU
Obsolete
Microchip
LM2576-5.0WU-TR
Production
onsemi
LM2576D2TR4-5G
Production
onsemi
LM2576TV-5G
Production
Texas Instruments
LM2576HVT-5.0/LF03
Production
Texas Instruments
LM2576T-5.0/LF03
Production
Texas Instruments
LM2576T-5.0/LB03
Production
Texas Instruments
LM2576HVT-5.0/LB03
Production

See more alternatives See less alternatives

Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Rochester Electronics
LM2576D2T-005
US: 23853
 $ 1.49 1.24 1.10
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
LM2576D2T-005
US: 17140
 $ 1.55 1.375
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
LM2576D2T-005
US: 6713
 $ 1.55 1.375
 Historical Pricing  Historical Stock Levels
Quantity
Location

Non-Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Microchip USA
LM2576D2T-005
US: 149
 $ 9.982 9.951
 Historical Pricing  Historical Stock Levels
Quantity
Location
Win Source
181781-LM2576D2T-005
CN: 2530
 $ 1.2913 1.2913 0.8605 0.8605
 Historical Pricing  Historical Stock Levels
Quantity
Location
Worldway Electronics
LM2576D2T-005
HK: 50100
 $ 0.3088 0.3088 0.2994 0.2836 0.2836
 Historical Pricing  Historical Stock Levels
Quantity
Location
Fmall Co., Limited
LM2576D2T-005
HK: 23800
 $ 0.9449 0.9449 0.9449 0.8839 0.8331 0.762
 Historical Pricing  Historical Stock Levels
Quantity
Location
Aztech
LM2576D2T-005
IT: 595
 $ 22.24 22.24 22.24 22.24 22.24 22.24
 Historical Pricing  Historical Stock Levels
Quantity
Location
Bettlink
LM2576D2T-005
HK: 23994
 $ 1.5886 1.3935 1.3935 1.2668 1.1169 1.0537
 Historical Pricing  Historical Stock Levels
Quantity
Location
Ansinor
LM2576D2T-005
CN: 23924
 $ 1.3859 1.3859
 Historical Pricing  Historical Stock Levels
Quantity
Location
SHENGYU ELECTRONICS
LM2576D2T-005
CN: 14666
 $ 1.2879 1.2621 1.2621 1.22 1.18 1.13
 Historical Pricing  Historical Stock Levels
Quantity
Location
VNN Services
LM2576D2T-005
EU: 7773
 $ 4.38 4.29 4.29 4.20 4.12 4.12
 Historical Pricing  Historical Stock Levels
Quantity
Location
Lixinc
LM2576D2T-005
CN: 3548
 $ 1.18 1.18 1.18 1.18 1.18 1.18
 Historical Pricing  Historical Stock Levels
Quantity
Location
XingHuan International
LM2576D2T-005
CN: 55000
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Digi-ic_SMART PIONEER
LM2576D2T-005
HK: 9286
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
