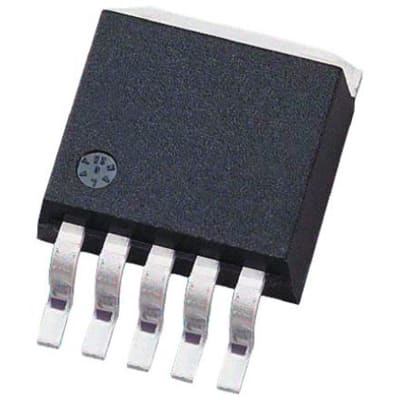

LM2596DSADJG - onsemi
Conv DC-DC 4.5V to 40V Step Down Single-Out 1.23V to 37V 3A 6-Pin(5+Tab) D2PAK Tube
Technical Details
| Case/Package | D2PAK |
| China RoHS | Non-Compliant |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Efficiency | 73% |
| Halogen Free | Halogen Free |
| Height | 4.826mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2008-09-24 |
| Lead Free | Lead Free |
| Length | 10.02mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Duty Cycle | 95% |
| Max Input Voltage | 40V |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 125°C |
| Max Output Current | 7.5A |
| Max Output Voltage | 37V |
| Max Supply Voltage | 40V |
| Max Switching Frequency | 180kHz |
| Min Input Voltage | 4.5V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 1.23V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Input Voltage | 12V |
| Nominal Output Voltage | 5V |
| Nominal Supply Current | 5mA |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 5 |
| Number of Terminals | 5 |
| Operating Supply Voltage | 40V |
| Output Current | 3A |
| Output Type | Adjustable |
| Output Voltage | 37V |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Switching Frequency | 150Hz |
| Synchronous Rectifier | No |
| Temperature Grade | Automotive |
| Terminal Pitch | 1.702mm |
| Topology | Buck |
| Width | 9.1945mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

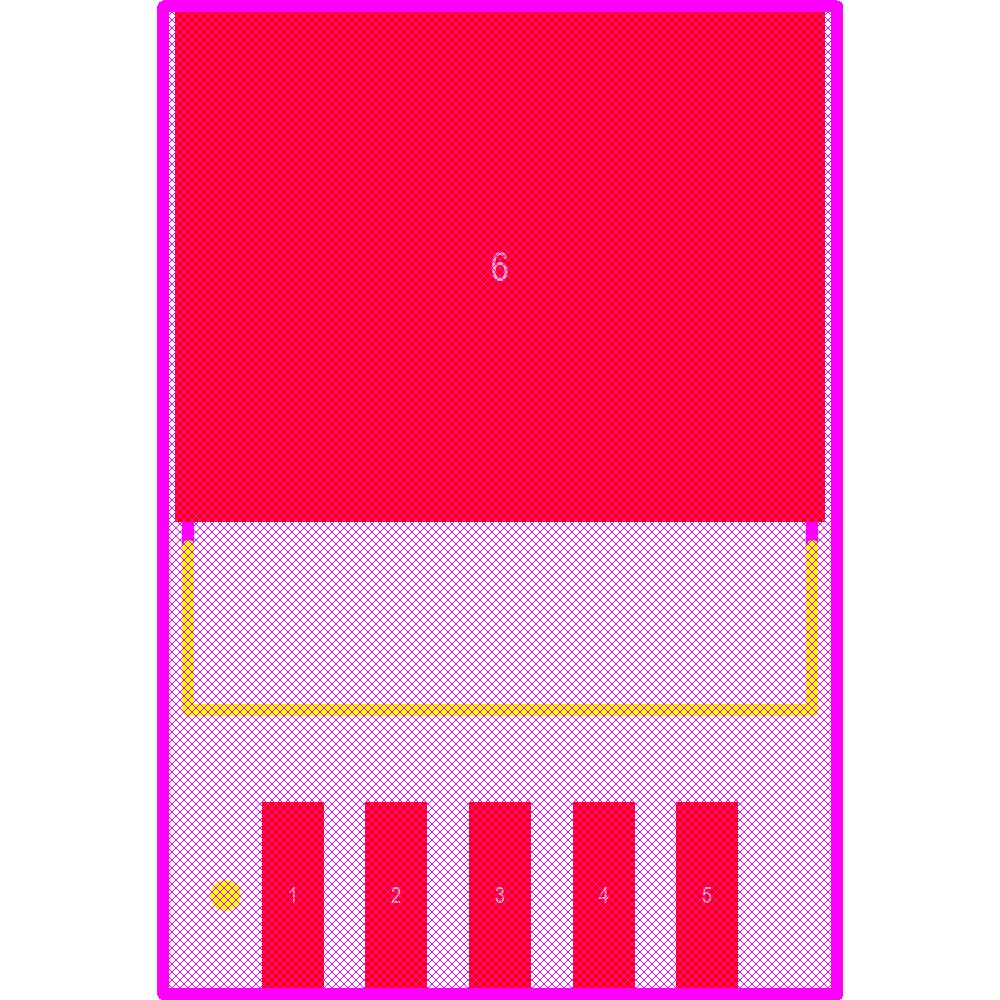

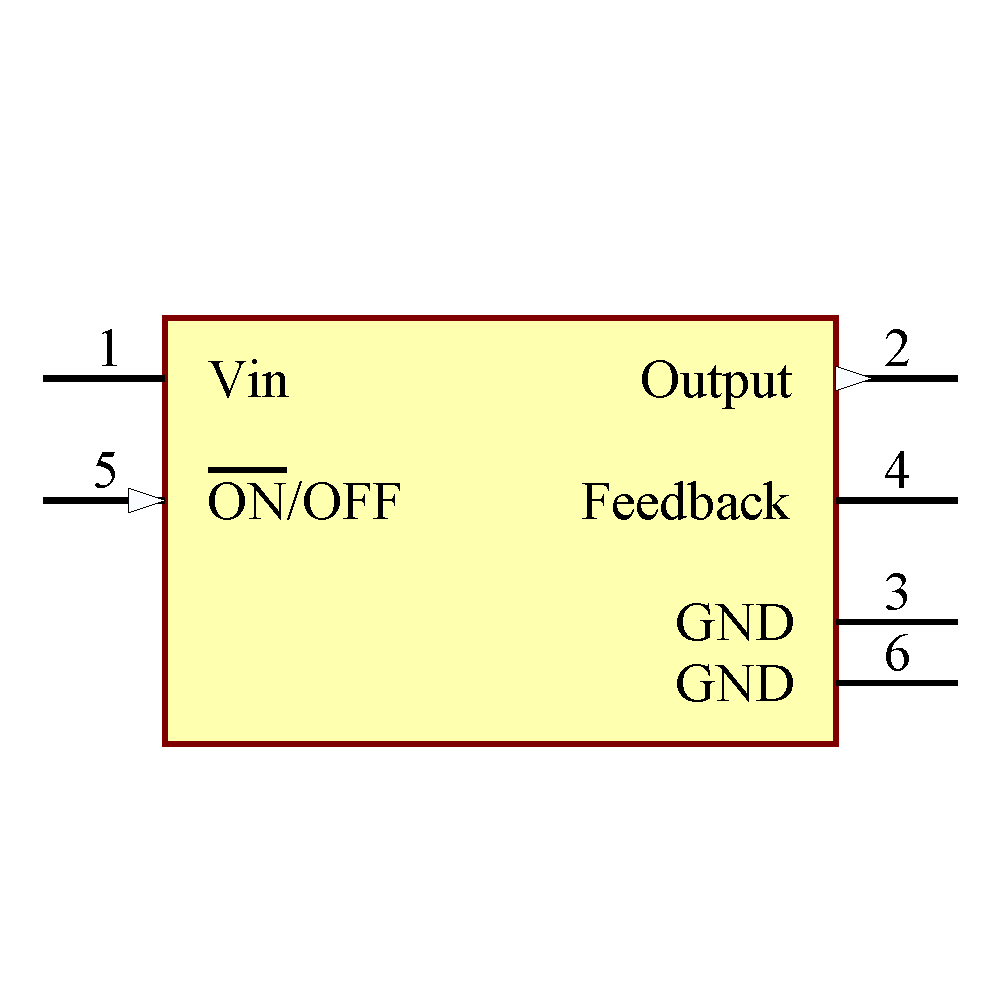

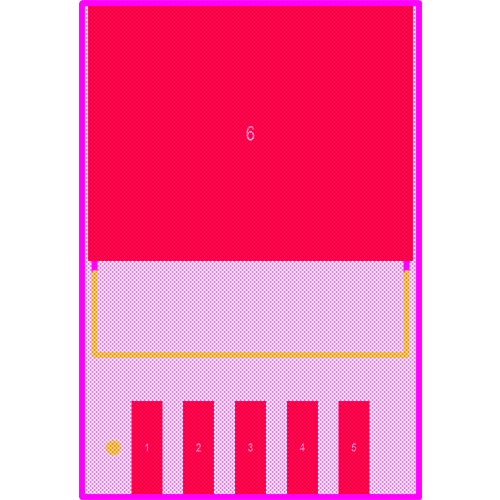

Images
Future Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Production | ||
| onsemi | Obsolete | ||
| Diodes Inc. | Obsolete | ||
| Diodes Inc. | Obsolete | ||
| Texas Instruments | Unknown | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| Texas Instruments | Unknown | ||
| onsemi | Obsolete | ||
| Texas Instruments | Unknown |
