LM285D-2.5R2G - onsemi

LM385 Series 2.5 V 20 mA SMT Micropower Voltage Reference Diode - SOIC-8

Technical Details

Case/Package	SOP
Cathode Current	30µA
China RoHS	Compliant
Country of Origin	Philippines
Current Rating	20mA
Export Control Classification Number (ECCN) Code	EAR99
Halogen Free	Halogen Free
Height - Seated (Max)	1.75mm
Harmonized Tariff Schedule (HTS) Code	8542.39.00.60
Introduction Date	1993-01-01
Lead Free	Lead Free
Length	4.9mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Operating Temperature	85°C
Max Output Current	20mA
Max Output Voltage	2.538V
Min Operating Temperature	-40°C
Min Output Voltage	2.462V
Mount	Surface Mount
Nominal Output Voltage	2.5V
Number of Channels	1
Number of Circuits	1
Number of Outputs	1
Number of Pins	8
Number of Terminals	8
Output Current	20mA
Output Type	Fixed
Output Voltage	2.5V
Radiation Hardening	No
REACH SVHC	Yes
Reference Type	Shunt
Reference Voltage	2.5V
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000, 8542390000\|8542390000\|8542390000, 8542390000\|8542390000\|8542390000\|8542390000
Temperature Coefficient	80ppm/°C
Temperature Grade	Industrial
Terminal Pitch	1.27mm
Tolerance	1.5%
Voltage Tolerance	1.5%
Width	3.9mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

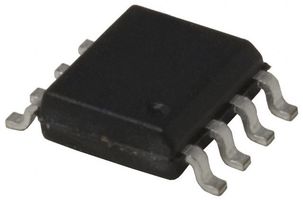

onsemi LM285D-2.5R2G | Future Electronics

Future Electronics

Datasheets

Lifecycle Status Indicator

Production

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Texas Instruments	LM385BD-2.5	Unknown
Texas Instruments	LM385BDG4-2-5	Unknown
onsemi	LM385D-2.5R2	Obsolete
onsemi	LM285D-2.5R2	Obsolete
onsemi	LM385BD-2.5R2	Obsolete
onsemi	LM385BD-2.5G	Production
onsemi	LM285D-2.5	Obsolete
onsemi	LM385D-2.5	Obsolete
onsemi	LM385BD-2.5	Obsolete
Texas Instruments	LM385BDRE4-2-5	Unknown

See more alternatives See less alternatives
