Average Rectified Current	15A
Breakdown Voltage	45V

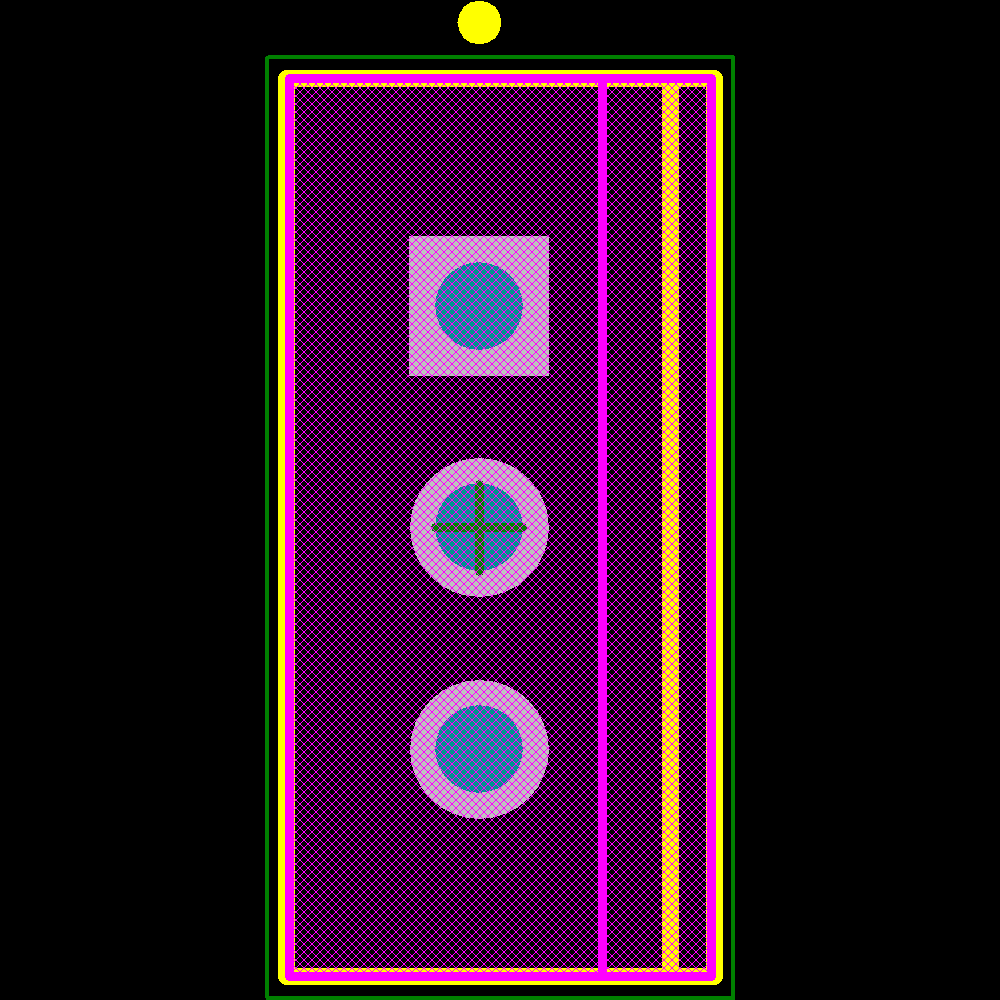

Case/Package	TO-220AB
China RoHS	Non-Compliant
Country of Origin	Mainland China
Current Rating	15A
Export Control Classification Number (ECCN) Code	EAR99

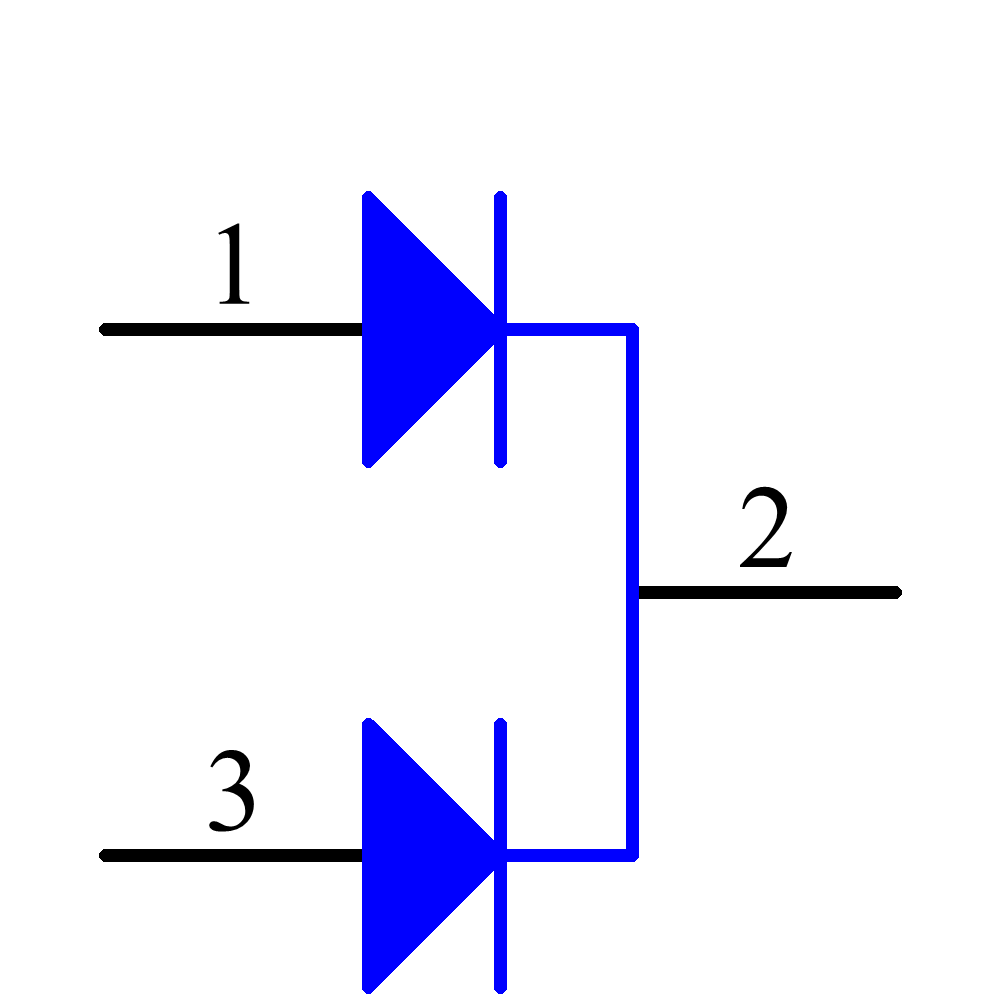

Element Configuration	Common Cathode
Forward Current	15A
Forward Voltage	840mV
Height	16.51mm
Harmonized Tariff Schedule (HTS) Code	8541.10.00.80
Introduction Date	1982-12-01
Lead Free	Lead Free
Length	10.67mm
Lifecycle Status	Obsolete
Max Forward Surge Current (Ifsm)	150A
Max Operating Temperature	150°C
Max Output Current	7.5A
Max Power Dissipation	41.7W
Max Repetitive Reverse Voltage (Vrrm)	45V
Max Reverse Leakage Current	100µA
Max Reverse Voltage (DC)	45V
Max Surge Current	150A
Min Operating Temperature	-65°C
Mount	Through Hole
Number of Elements	2
Number of Pins	3
Number of Terminals	3
Peak Non-Repetitive Surge Current	150A
Peak Reverse Current	100µA
Radiation Hardening	No
REACH SVHC	No
Reverse Standoff Voltage	45V
RoHS	Compliant
Voltage Rating (DC)	45V
Weight	1.8g
Width	4.83mm

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
onsemi	MBR1545CTP	Obsolete
Taiwan Semiconductor	MBR1545CT-Y C0G	Production
Taiwan Semiconductor	MBR1545CT C0G	Unknown
MCC	MBR1545CT-BP	Obsolete
Vishay	VS-MBR1545CTPBF	Obsolete
Vishay	VS-MBR1545CT-N3	Obsolete
STMicroelectronics	STPS1545CT	Production
NXP Semiconductors	PBYR1545CT	Obsolete
Taiwan Semiconductor	MBR1545CTC0	Production
Vishay	MBR1545CT-E3/45	Production

MBR1545CT - onsemi

Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 45V V(RRM), Silicon, TO-220AB
