onsemi - MBR1560CT

MBR1560CT - onsemi

Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 60V V(RRM), Silicon, TO-220AB

 Datasheets

Technical Details

Average Rectified Current 15A
Case/Package TO-220AB
China RoHS Non-Compliant
Current Rating 15A
Element Configuration Common Cathode
Forward Current 15A
Forward Voltage 750mV
Height 6.35mm
Lead Free Lead Free
Length 6.35mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Forward Surge Current (Ifsm) 150A
Max Operating Temperature 150°C
Max Output Current 15A
Max Power Dissipation 41.7W
Max Repetitive Reverse Voltage (Vrrm) 60V
Max Reverse Leakage Current 1mA
Max Reverse Voltage (DC) 60V
Max Surge Current 150A
Min Operating Temperature -65°C
Mount Through Hole
Number of Elements 2
Number of Pins 3
Number of Terminals 3
Peak Non-Repetitive Surge Current 150A
Peak Reverse Current 1mA
Radiation Hardening No
REACH SVHC No
Reverse Standoff Voltage 60V
RoHS Compliant
Schedule B 8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
Voltage Rating (DC) 60V
Weight 1.8g
Width 6.35mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

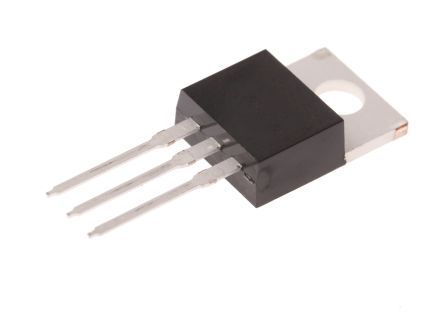

onsemi MBR1560CT | RS

RS

Datasheets

 RS
 RS
 RS

Lifecycle Status Indicator

   Production

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Diodes Inc.
MBR2060CT
Obsolete
Sangdest Microelectronics
MBR1560CT
Production
Diodes Inc.
MBR1560CT
Obsolete
KEC
MBR1560CT
Obsolete
Vishay
VT760-E3/4W
Production
Lite-On
G20S63CDW
Unknown
Vishay
VIT760-E3/4W
Production
onsemi
MBRB2060CTG
Obsolete

Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
RS
1867726P
DE: 130
 $ 1.9354 1.9354 1.9354 1.9354 1.9354
 Historical Pricing  Historical Stock Levels
Quantity
Location
RS
1867726
DE: 130
 $ 1.9354 1.9354 1.9354 1.9354 1.9354
 Historical Pricing  Historical Stock Levels
Quantity
Location
RS
1867480
DE: 130
 $ 1.3215 1.1612 1.0737 1.0737
 Historical Pricing  Historical Stock Levels
Quantity
Location
Rochester Electronics
MBR1560CT
US: 79
 $ 0.8481 0.7039 0.6276
 Historical Pricing  Historical Stock Levels
Quantity
Location
Rochester Electronics
MBR1560CT
US: 70
 $ 0.8481 0.7039 0.6276
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet
MBR1560CT
US: 600
 $ 0.6593
 Historical Pricing  Historical Stock Levels
Quantity
Location
Arrow Electronics
MBR1560CT
US: 12
 $ 0.3517 0.3517 0.3517 0.3517 0.3517 0.3517
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
MBR1560CT-ND
DE: 30
 $ 1.9724 1.9724 1.1243 1.9724 0.7663 0.7213
 Historical Pricing  Historical Stock Levels
Quantity
Location
Mouser
512-MBR1560CT
US: 220
 $ 1.85 1.08 1.08 1.05 0.714 0.714
 Historical Pricing  Historical Stock Levels
Quantity
Location
EBV Elektronik
MBR1560CT
EU: 750
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet Silica
MBR1560CT
EU: 0
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Onlinecomponents.com
MBR1560CT
US: 0
 $ 0.746 0.746 0.664 0.604
 Historical Pricing  Historical Stock Levels
Quantity
Location
Master Electronics
MBR1560CT
US: 0
 $ 0.746 0.746 0.664 0.604
 Historical Pricing  Historical Stock Levels
Quantity
Location
Newark
MBR1560CT
US: 0
 $ 1.01 1.01
 Historical Pricing  Historical Stock Levels
Quantity
Location

Non-Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Win Source
220651-MBR1560CT
CN: 11100
 $ 0.1809 0.1517
 Historical Pricing  Historical Stock Levels
Quantity
Location
Worldway Electronics
MBR1560CT
HK: 56677
 $ 0.2284 0.2284 0.2214 0.2098 0.2098
 Historical Pricing  Historical Stock Levels
Quantity
Location
Fmall Co., Limited
MBR1560CT
HK: 31930
 $ 1.235 1.235 1.235 1.1554 1.089 0.996
 Historical Pricing  Historical Stock Levels
Quantity
Location
UnikeyIC
MBR1560CT
SG: 130
 $ 1.2104 1.1742 1.1389 1.1389
 Historical Pricing  Historical Stock Levels
Quantity
Location
Lixinc
MBR1560CT
CN: 14364
 $ 1.55 1.55 1.326 1.326 1.326 1.326
 Historical Pricing  Historical Stock Levels
Quantity
Location
Bettlink
MBR1560CT
HK: 658
 $ 1.6465 1.4443 1.4443 1.313 1.1577 1.0921
 Historical Pricing  Historical Stock Levels
Quantity
Location
Ansinor
MBR1560CT
CN: 606
 $ 1.736 1.736 0.9197 0.6761 0.6362
 Historical Pricing  Historical Stock Levels
Quantity
Location
Quest
MBR1560CT
US: 200
 $ 1.45 1.334 1.16 0.87 0.783 0.783
 Historical Pricing  Historical Stock Levels
Quantity
Location
Chipsmall Limited
MBR1560CT
CN: 155
 $ 0.7953 0.5302 0.5302 0.3181 0.2651 0.2651
 Historical Pricing  Historical Stock Levels
Quantity
Location
Fly-Wing Technology
MBR1560CT
HK: 87
 $ 1.4608 1.1766 1.1766 0.9323 0.6437 0.6437
 Historical Pricing  Historical Stock Levels
Quantity
Location
Classic Components
MBR1560CT
US: 900
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
XingHuan International
MBR1560CT
CN: 80000
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
XingHuan International
MBR1560CT
CN: 55000
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Rebound Electronics
MBR1560CT
GB: 205
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Lingto Electronic Ltd.
MBR1560CT
CN: 10041
 $ 1.75 1.6625 1.6625 1.575 1.5575 1.54
 Historical Pricing  Historical Stock Levels
Quantity
Location
TME
MBR1560CT-ONS
PL: 0
 $ 1.8245 1.4546 1.1588 1.0478 0.8383 0.8383
 Historical Pricing  Historical Stock Levels
Quantity
Location
Sourcengine
MBR1560CT
US: 750
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Abacus Technologies
MBR1560CT
US: 0
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
NAC Semi
MBR1560CT
US: 600
 $ 3.78 3.40 3.40
 Historical Pricing  Historical Stock Levels
Quantity
Location
