Average Rectified Current	20A
Breakdown Voltage	45V

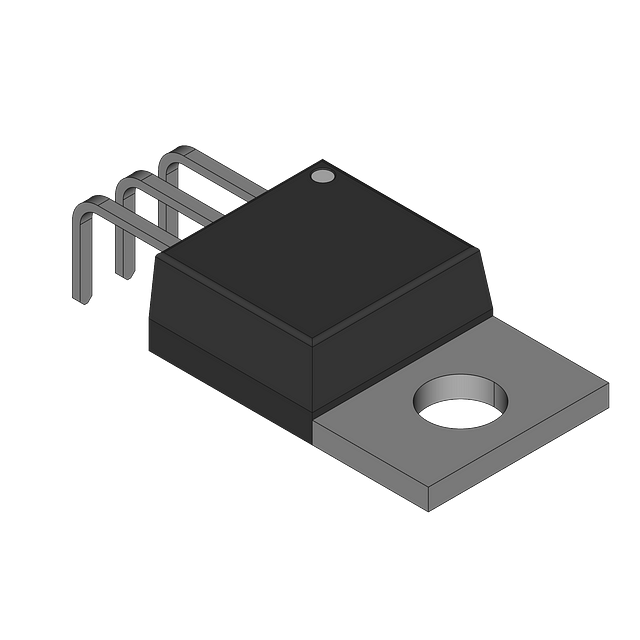

Case/Package	TO-220AB
Country of Origin	Mainland China
Current Rating	20A
Export Control Classification Number (ECCN) Code	EAR99

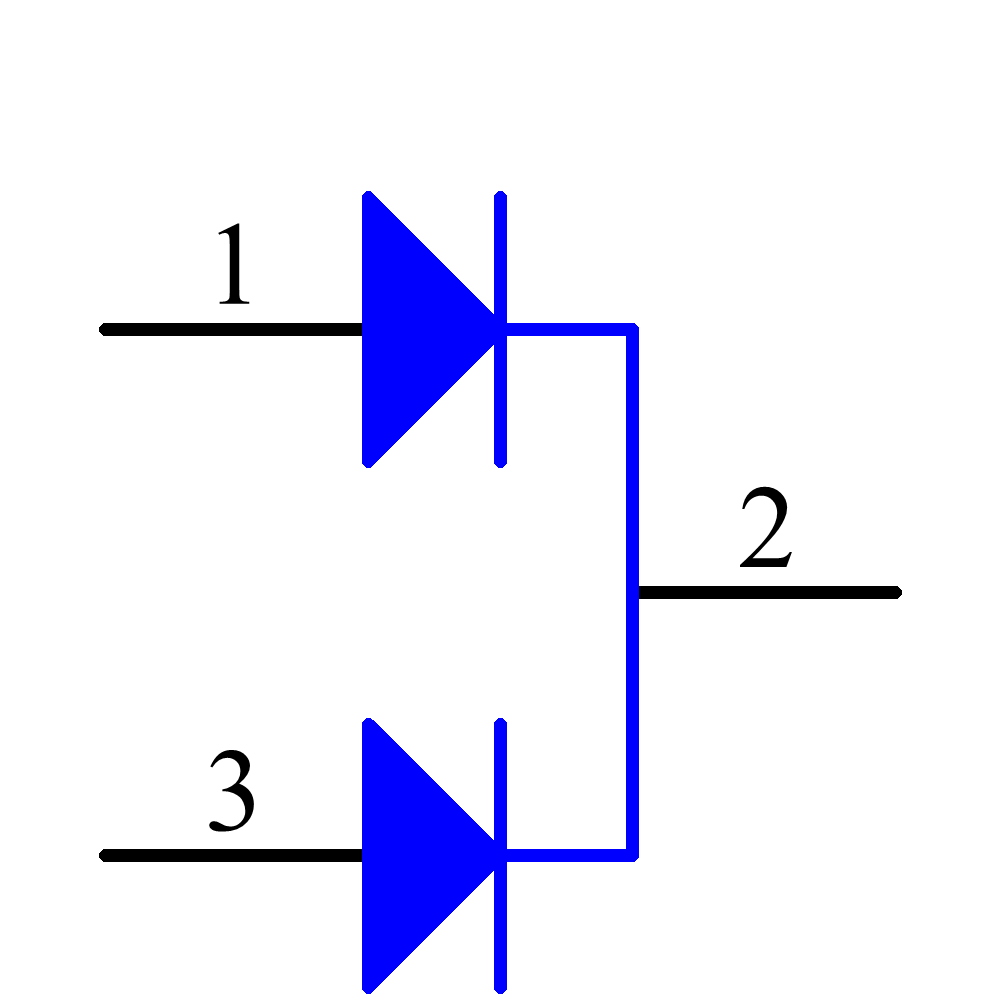

Element Configuration	Common Cathode
Forward Current	20A
Forward Voltage	840mV
Harmonized Tariff Schedule (HTS) Code	8541.10.00.80
Introduction Date	1982-12-01
Lead Free	Lead Free
Lifecycle Status	Obsolete
Max Forward Surge Current (Ifsm)	150A
Max Operating Temperature	150°C
Max Output Current	10A
Max Power Dissipation	2W
Max Repetitive Reverse Voltage (Vrrm)	45V
Max Reverse Leakage Current	100µA
Max Reverse Voltage (DC)	45V
Max Surge Current	150A
Min Operating Temperature	-65°C
Mount	Through Hole
Number of Elements	2
Number of Pins	3
Number of Terminals	3
Peak Non-Repetitive Surge Current	150A
Peak Reverse Current	100µA
Radiation Hardening	No
REACH SVHC	No
Reverse Standoff Voltage	45V
RoHS	Compliant
Voltage Rating (DC)	45V
Weight	1.8g

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
NXP Semiconductors	PBYR2045CT	Obsolete
Taiwan Semiconductor	MBR2045CT	Production
Vishay	MBR20H45CTHE3/45	Obsolete
Sangdest Microelectronics	MBR2045CTP	Production
Taiwan Semiconductor	MBR2045CTHC0	Production
Taiwan Semiconductor	MBR2045CTC0	Production
Diotec	SBCT2045	Production
Taiwan Semiconductor	MBR2045CT C0G	Production
Vishay	MBR2045CT	Obsolete
onsemi	MBR2045CTG	Obsolete

MBR2045CT - onsemi

Rectifier Diode, Schottky, 1 Phase, 2 Element, 20A, 45V V(RRM), Silicon, TO-220AB
