Discrete Semiconductors  >  Diodes  >  Schottky Diodes

onsemi - MBR2045CTG

MBR2045CTG - onsemi

Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 45V V(RRM), Silicon, TO-220AB

 Datasheets

Technical Details

Average Rectified Current 10A
Breakdown Voltage 45V
Capacitance 500pF
Case/Package TO-220-3
China RoHS Non-Compliant
Country of Origin Mainland China
Current Rating 20A
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Common Cathode
Forward Current 20A
Forward Voltage 840mV
Height 15.748mm
Harmonized Tariff Schedule (HTS) Code 8541.10.00.80
Introduction Date 1997-05-05
Lead Free Lead Free
Length 10.287mm
Lifecycle Status Obsolete
Manufacturer Lifecycle Status OBSOLETE
Max Forward Surge Current (Ifsm) 150A
Max Operating Temperature 175°C
Max Output Current 10A
Max Repetitive Reverse Voltage (Vrrm) 45V
Max Reverse Leakage Current 100µA
Max Reverse Voltage (DC) 45V
Max Surge Current 150A
Min Operating Temperature -65°C
Number of Elements 2
Number of Pins 3
Number of Terminals 3
Peak Non-Repetitive Surge Current 150A
Peak Reverse Current 100µA
REACH SVHC No
Reverse Standoff Voltage 45V
RoHS Compliant
Voltage Rating (DC) 45V
Width 4.826mm

Compliance

   RoHS : Unconfirmed
   REACH SVHC : No

Images

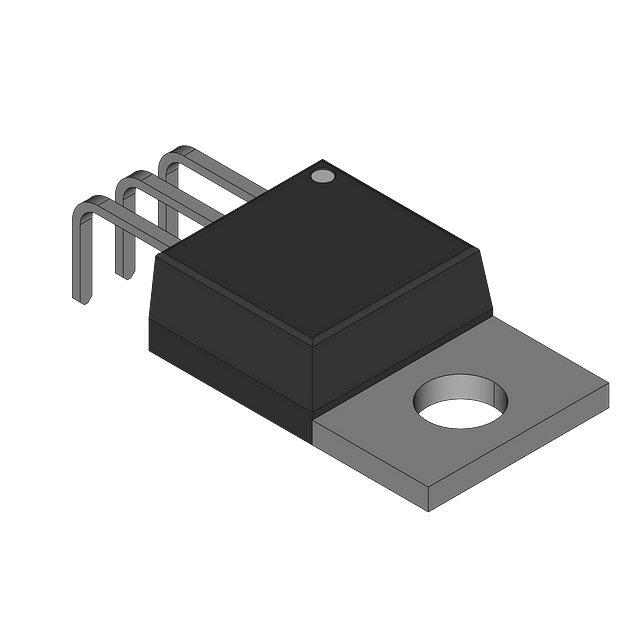

onsemi MBR2045CTG | Rochester Electronics

Rochester Electronics

Datasheets

 Rochester Electronics
 Verical
 Verical

Lifecycle Status Indicator

   Obsolete

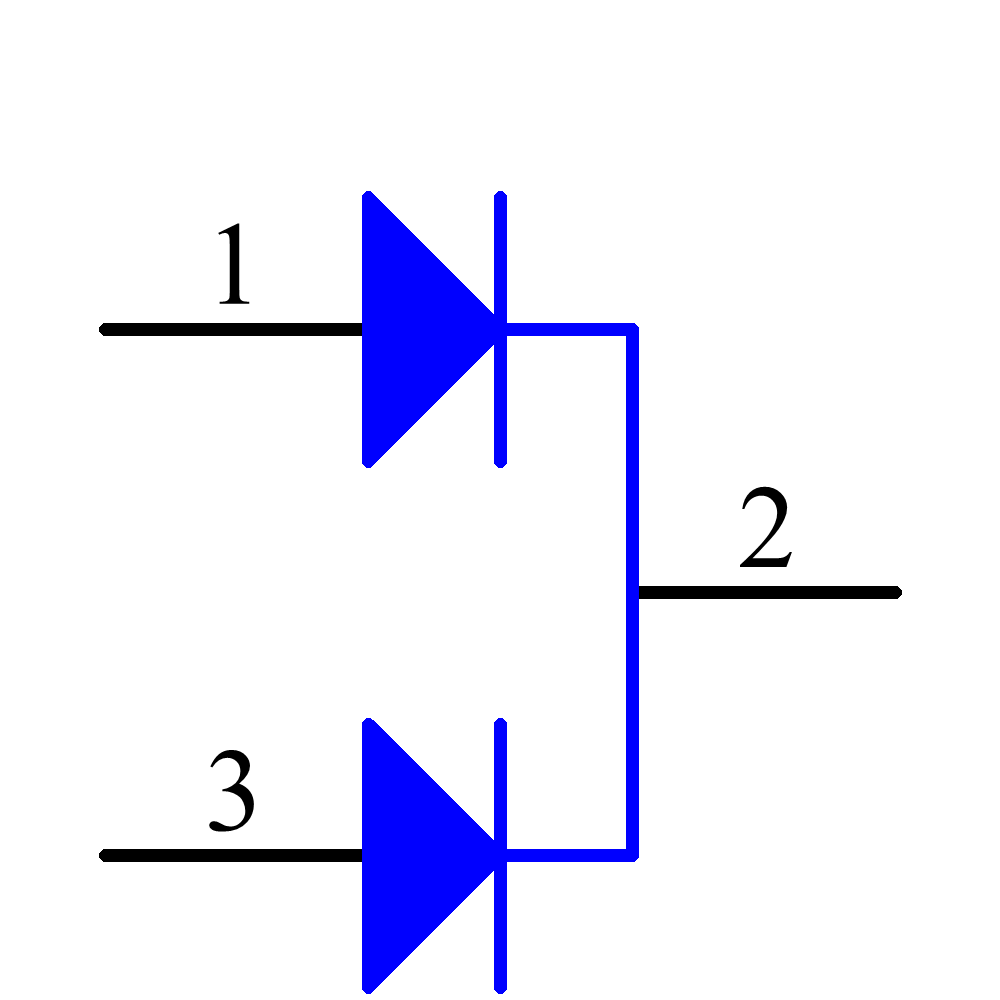

Symbol

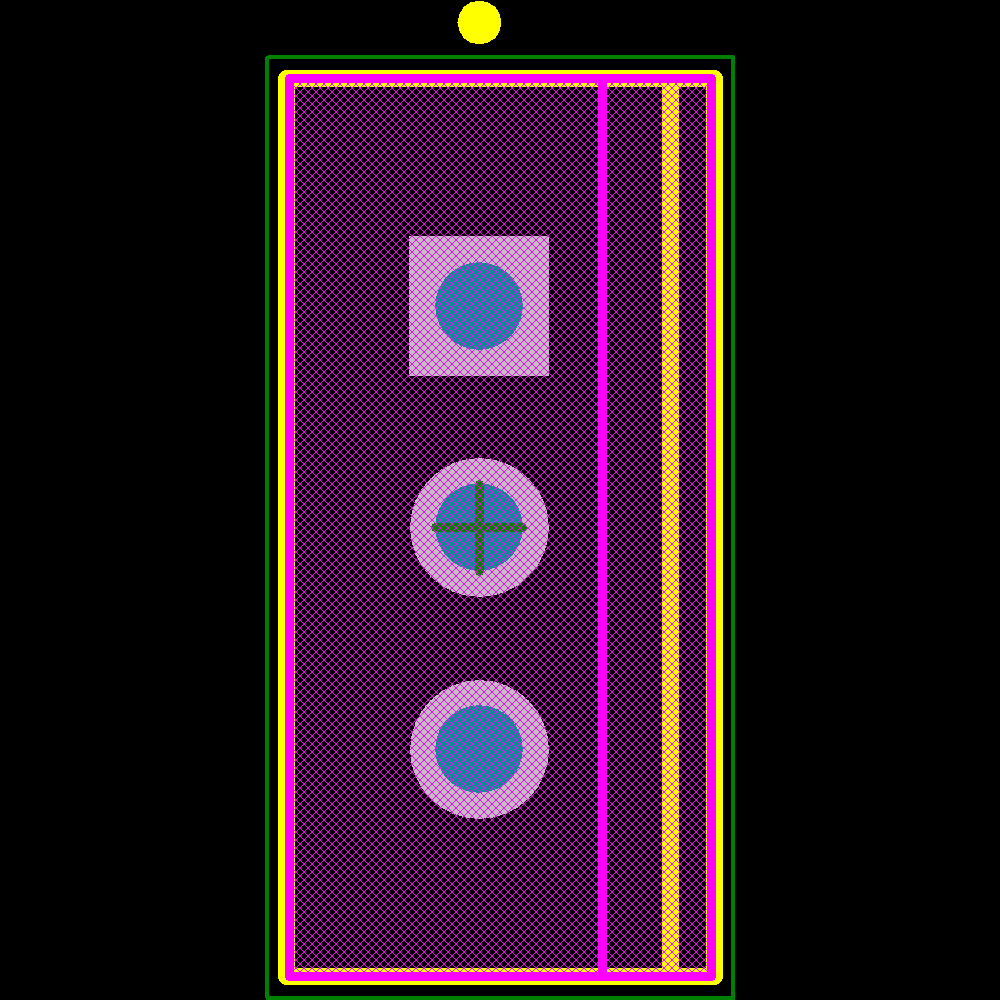

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
NXP Semiconductors
PBYR2045CT
Obsolete
Taiwan Semiconductor
MBR2045CT
Production
Vishay
MBR20H45CTHE3/45
Obsolete
Sangdest Microelectronics
MBR2045CTP
Production
Taiwan Semiconductor
MBR2045CTHC0
Production
Taiwan Semiconductor
MBR2045CTC0
Production
Diotec
SBCT2045
Production
Taiwan Semiconductor
MBR2045CT C0G
Production
Vishay
MBR2045CT
Obsolete
onsemi
MBR2045CT
Obsolete

See more alternatives See less alternatives

Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Rochester Electronics
MBR2045CTG
US: 63021
 $ 0.5152 0.4276 0.3812
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
MBR2045CTG
US: 48989
 $ 0.5345 0.4765
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
MBR2045CTG
US: 11330
 $ 0.5345 0.4765
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
MBR2045CTG
US: 2612
 $ 0.5345 0.4765
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet
MBR2045CTG
US: 0
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
element14 APAC
9557261
SG: 0
 $ 0.3961 0.3415 0.3415 0.3233 0.2656 0.2428
 Historical Pricing  Historical Stock Levels
Quantity
Location

Non-Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Microchip USA
MBR2045CTG
US: 2495
 $ 3.4776 3.4668
 Historical Pricing  Historical Stock Levels
Quantity
Location
Win Source
488372-MBR2045CTG
CN: 2200
 $ 0.9516 0.6345 0.6345
 Historical Pricing  Historical Stock Levels
Quantity
Location
Worldway Electronics
MBR2045CTG
HK: 59295
 $ 0.1139 0.1139 0.1104 0.1046 0.1046
 Historical Pricing  Historical Stock Levels
Quantity
Location
Fmall Co., Limited
MBR2045CTG
HK: 24210
 $ 0.3274 0.3274 0.3274 0.3062 0.2886 0.264
 Historical Pricing  Historical Stock Levels
Quantity
Location
Bettlink
MBR2045CTG
HK: 63262
 $ 0.7584 0.6595 0.6595 0.5888 0.5503 0.4944
 Historical Pricing  Historical Stock Levels
Quantity
Location
Ansinor
MBR2045CTG
CN: 60190
 $ 0.7877 0.7877 0.6116 0.5663 0.4993
 Historical Pricing  Historical Stock Levels
Quantity
Location
SHENGYU ELECTRONICS
MBR2045CTG
CN: 25721
 $ 0.4717 0.4623 0.4623 0.45 0.43 0.42
 Historical Pricing  Historical Stock Levels
Quantity
Location
Lixinc
MBR2045CTG
CN: 5862
 $ 0.41 0.41 0.41 0.41 0.41 0.41
 Historical Pricing  Historical Stock Levels
Quantity
Location
Chipsmall Limited
MBR2045CTG
CN: 5000
 $ 0.924 0.616 0.616 0.3696 0.308 0.308
 Historical Pricing  Historical Stock Levels
Quantity
Location
ODG (Origin Data Global)
MBR2045CTG
CN: 408
 $ 0.6569 0.5255 0.5255
 Historical Pricing  Historical Stock Levels
Quantity
Location
Classic Components
MBR2045CTG
US: 72
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
IC Components Ltd.
MBR2045CTG
HK: 16870
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
YIC International
MBR2045CTG
HK: 16770
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
XingHuan International
MBR2045CTG
CN: 55000
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Abacus Technologies
MBR2045CTG
US: 137
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Sourcengine
MBR2045CTG
US: 72
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
