MBR2535CT - onsemi
Rectifier Diode, Schottky, 1 Phase, 2 Element, 25A, 35V V(RRM), Silicon, TO-220AB
Technical Details
| Average Rectified Current | 30A |
| Capacitance | 700pF |
| Case/Package | TO-220AB |
| Country of Origin | Mainland China |
| Current Rating | 30A |
| Export Control Classification Number (ECCN) Code | EAR99 |

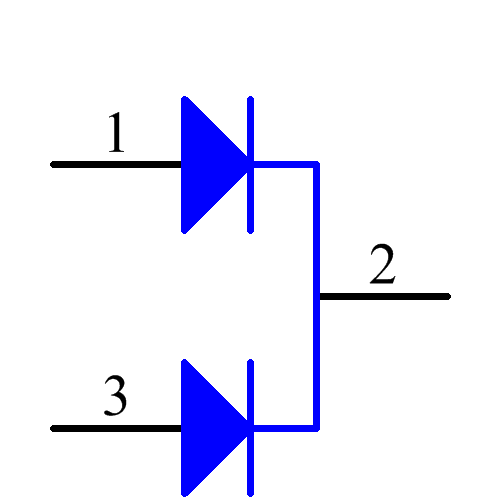

| Element Configuration | Common Cathode |
| Forward Current | 30A |
| Forward Voltage | 820mV |
| Height | 4.83mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.80 |
| Introduction Date | 1982-12-01 |
| Lead Free | Lead Free |
| Length | 10.29mm |
| Lifecycle Status | Obsolete |
| Max Forward Surge Current (Ifsm) | 150A |
| Max Operating Temperature | 150°C |
| Max Output Current | 25A |
| Max Power Dissipation | 2W |
| Max Repetitive Reverse Voltage (Vrrm) | 35V |
| Max Reverse Leakage Current | 200µA |
| Max Reverse Voltage (DC) | 35V |
| Max Surge Current | 200A |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount, Through Hole |
| Number of Elements | 2 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Peak Non-Repetitive Surge Current | 150A |
| Peak Reverse Current | 200µA |
| REACH SVHC | No |
| Reverse Standoff Voltage | 35V |
| RoHS | Compliant |
| Voltage Rating (DC) | 30V |
| Weight | 1.8g |
| Width | 9.66mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Taiwan Semiconductor | Production | ||
| Vishay | Obsolete | ||
| onsemi | Production | ||
| Diodes Inc. | Obsolete | ||
| Vishay | Production | ||
| Diodes Inc. | Obsolete | ||
| Panjit | Production | ||
| IXYS | Obsolete | ||
| Diodes Inc. | Obsolete | ||
| NXP Semiconductors | Obsolete |
