MBR2535CTG - onsemi

Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 35V V(RRM), Silicon, TO-220AB

Technical Details

Average Rectified Current	30A
Capacitance	500pF
Case/Package	TO-220-3
China RoHS	Non-Compliant
Contact Plating	Tin
Country of Origin	Vietnam
Current Rating	25A
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Common Cathode
Forward Current	30A
Forward Voltage	820mV
Height	15.748mm
Harmonized Tariff Schedule (HTS) Code	8541.10.00.80
Introduction Date	1982-12-01
Lead Free	Lead Free
Length	10.2616mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Forward Surge Current (Ifsm)	150A
Max Operating Temperature	175°C
Max Output Current	30A
Max Repetitive Reverse Voltage (Vrrm)	35V
Max Reverse Leakage Current	200µA
Max Reverse Voltage (DC)	35V
Max Surge Current	150A
Min Operating Temperature	-65°C
Number of Elements	2
Number of Pins	3
Number of Terminals	3
Peak Non-Repetitive Surge Current	150A
Peak Reverse Current	200µA
Radiation Hardening	No
REACH SVHC	No
Reverse Standoff Voltage	35V
RoHS	Compliant
Voltage Rating (DC)	35V
Weight	4.535924g
Width	4.826mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

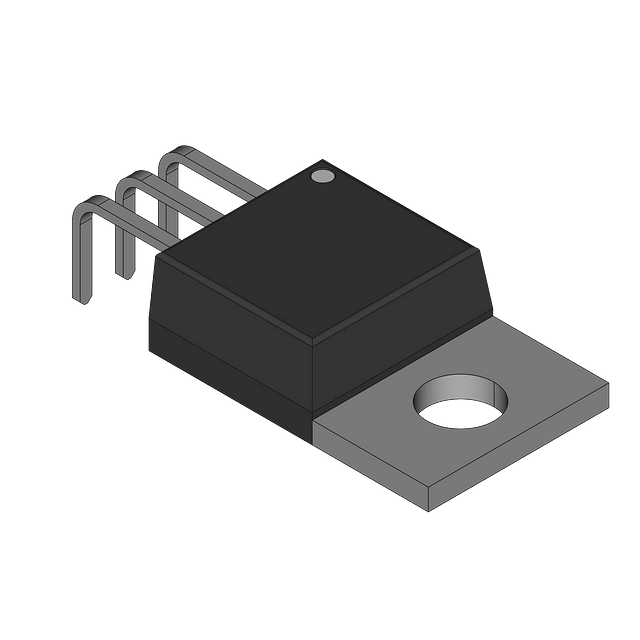

onsemi MBR2535CTG | Rochester Electronics

Rochester Electronics

Datasheets

Rochester Electronics

Lifecycle Status Indicator

Production

Symbol

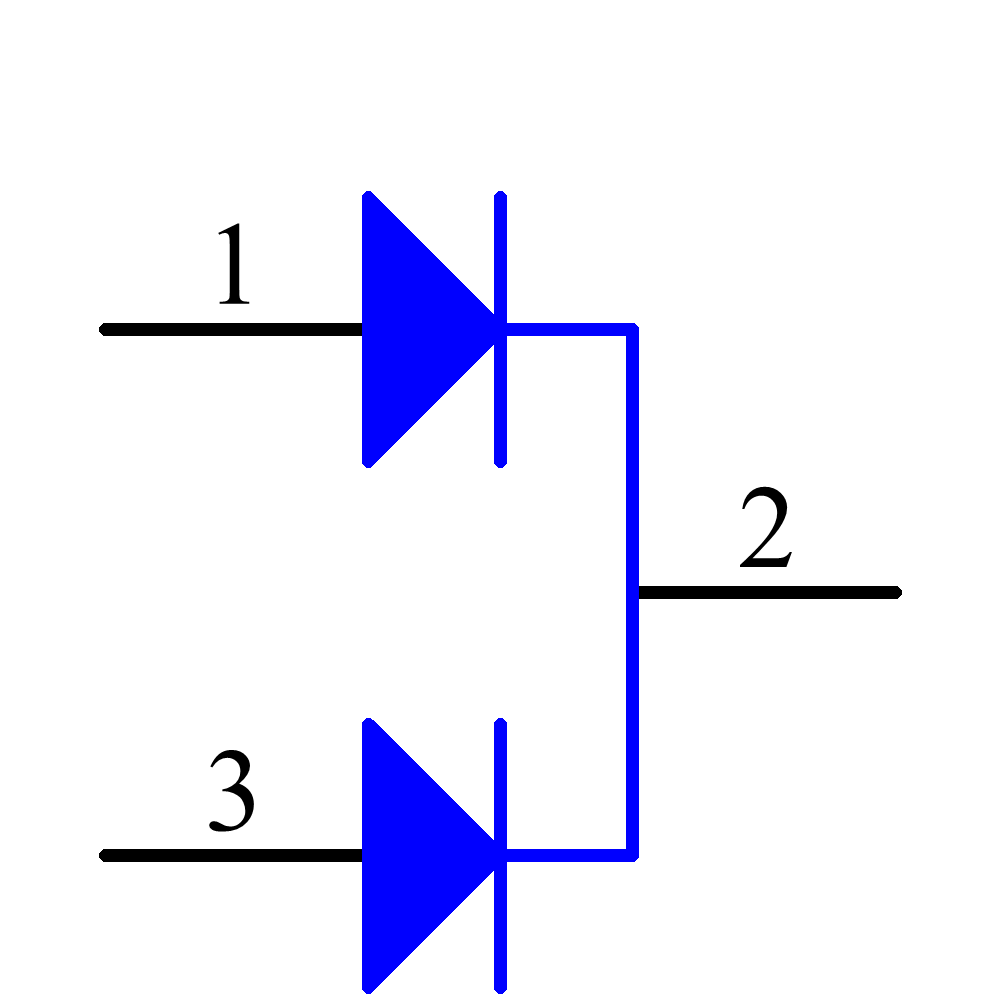

MBR2535CTG Symbol - onsemi

MBR2535CTG Symbol - onsemi

MBR2535CTG Symbol - onsemi

MBR2535CTG Symbol - onsemi

‹ ›

Footprint

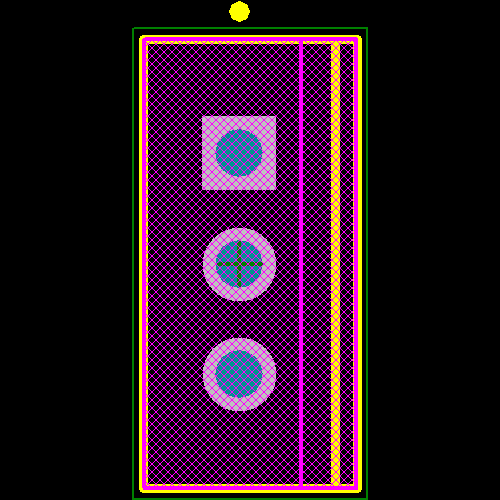

MBR2535CTG Footprint - onsemi

MBR2535CTG Footprint - onsemi

MBR2535CTG Footprint - onsemi

MBR2535CTG Footprint - onsemi

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Taiwan Semiconductor	MBR2535CT	Production
Vishay	30CTQ035PBF	Obsolete
Diodes Inc.	MBR2535CT	Obsolete
onsemi	MBR2535CT	Obsolete
Vishay	VS-30CTQ035-M3	Production
Diodes Inc.	SBL1035CT	Obsolete
Panjit	SB1660CT	Production
IXYS	DSSK20-0045A	Obsolete
Diodes Inc.	SBL1045CT	Obsolete
NXP Semiconductors	PBYR2045CT	Obsolete
