Technical Details
| Case/Package | DIP |
| China RoHS | Non-Compliant |
| Country of Origin | Indonesia |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height - Seated (Max) | 5.33mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 1993-01-01 |
| Lead Free | Contains Lead |
| Length | 9.25mm |
| Lifecycle Status | Obsolete |
| Max Input Voltage | 40V |
| Max Operating Temperature | 70°C |
| Max Output Current | 1.5A |
| Max Supply Current | 4mA |
| Max Switching Frequency | 100kHz |
| Min Input Voltage | 3V |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Nominal Input Voltage | 5V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Number of Terminals | 8 |
| Output Current | 1.5A |
| Output Type | Adjustable |
| Output Voltage | 40V |
| REACH SVHC | No |
| RoHS | Non-Compliant |
| Switching Frequency | 100kHz |
| Synchronous Rectifier | No |
| Temperature Grade | Commercial |
| Terminal Pitch | 2.54mm |
| Topology | Buck-Boost |
| Width | 7.62mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
Images

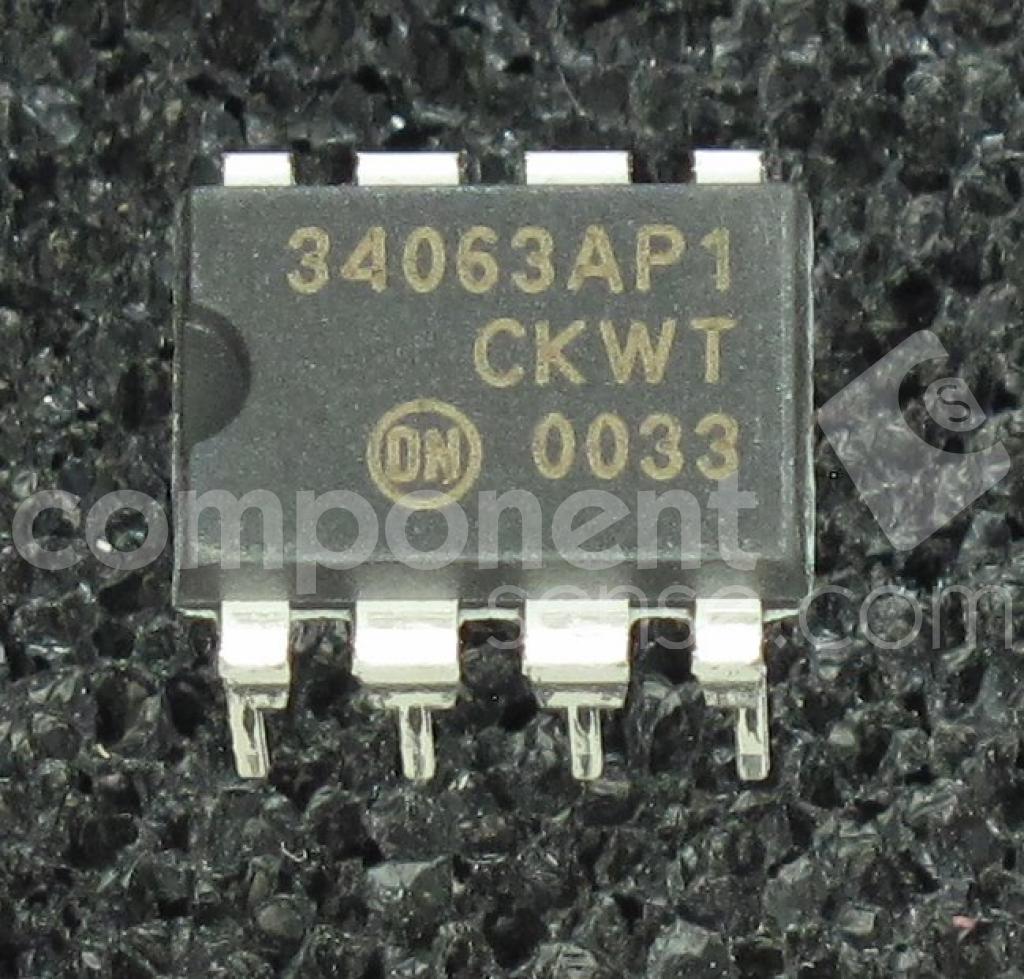

Component Sense
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| STMicroelectronics | Production | ||
| Semelab | Unknown | ||
| STMicroelectronics | Production | ||
| onsemi | Production | ||
| STMicroelectronics | Production | ||
| STMicroelectronics | Production | ||
| Texas Instruments | Production | ||
| Diodes Inc. | Obsolete | ||
| Texas Instruments | Production | ||
| Motorola | Obsolete |
