Technical Details
| Case/Package | SOP |
| China RoHS | Non-Compliant |
| Height - Seated (Max) | 1.75mm |
| High Level Output Current | 24mA |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 1990-07-01 |
| Lead Free | Contains Lead |
| Length | 8.65mm |
| Lifecycle Status | Obsolete |
| Load Capacitance | 50pF |
| Logic Function | OR, XOR |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Gates | 4 |
| Number of Inputs | 2 |
| Number of Pins | 14 |
| Number of Terminals | 14 |
| Operating Supply Voltage | 5V |
| Packaging | Cut Tape (CT) |
| Propagation Delay | 10.5ns |
| Quiescent Current | 4µA |
| REACH SVHC | No |
| RoHS | Non-Compliant |
| Schmitt Trigger Input | No |
| Temperature Grade | Industrial |
| Terminal Pitch | 1.27mm |
| Width | 3.9mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

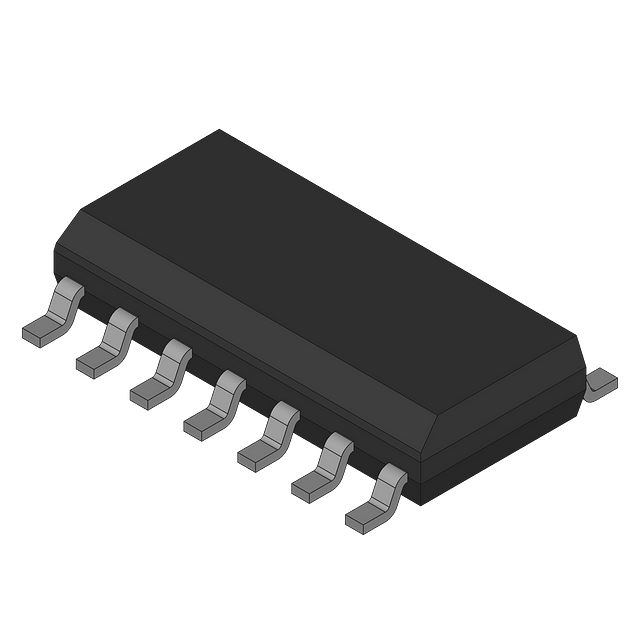

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Production | ||
| onsemi | Obsolete | ||
| Toshiba | Obsolete | ||
| Texas Instruments | Unknown | ||
| onsemi | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 14771
|
$ | 0.1189 | 0.0987 | 0.088 | |||||
| Verical |
US: 5000
|
$ | 0.11 | |||||||
| Verical |
US: 5000
|
$ | 0.11 | |||||||
| Verical |
US: 4771
|
$ | 0.11 | |||||||
| Avnet |
US: 0
|
$ | ||||||||
