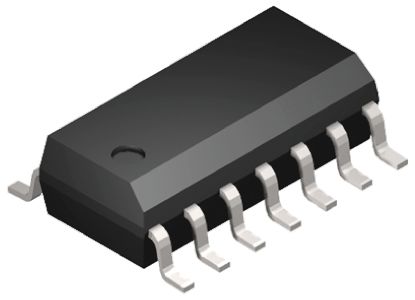

MC74HC74ADR2G - onsemi
74HC Series 2 to 6 V SMT Dual D-Type Flip-Flop with Set and Reset - SOIC-14
Technical Details
| Case/Package | SOP |
| China RoHS | Compliant |
| Clock Edge Trigger Type | Positive Edge |
| Contact Plating | Tin |
| Country of Origin | Mainland China, Philippines, Thailand |
| Current Rating | 4µA |
| Frequency | 20MHz |
| Halogen Free | Halogen Free |
| Height | 1.75mm |
| Height - Seated (Max) | 1.75mm |
| High Level Output Current | -5.2mA |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 1995-10-01 |
| Lead Free | Lead Free |
| Length | 8.65mm |
| Lifecycle Status | Production |
| Load Capacitance | 50pF |
| Logic Function | AND, D-Type, Flip-Flop |
| Low Level Output Current | 4mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Frequency | 24MHz |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 6V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 1 |
| Number of Bits per Element | 1 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Input Lines | 1 |
| Number of Inputs | 2 |
| Number of Output Lines | 1 |
| Number of Outputs | 4 |
| Number of Pins | 14 |
| Number of Terminals | 14 |
| Operating Supply Voltage | 3V |
| Output Current | 5.2mA |
| Packaging | Cut Tape |
| Polarity | Non-Inverting |
| Propagation Delay | 150ns |
| Quiescent Current | 2µA |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|85 |
| Temperature Grade | Military |
| Terminal Pitch | 1.27mm |
| Turn-On Delay Time | 17ns |
| Width | 3.9mm |
