Technical Details
| Case/Package | SOP |
| China RoHS | Non-Compliant |
| Height - Seated (Max) | 1.75mm |
| High Level Output Current | -8mA |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 1999-10-12 |
| Length | 8.65mm |
| Lifecycle Status | Obsolete |
| Load Capacitance | 50pF |
| Logic Function | XOR |
| Low Level Output Current | 8mA |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Inputs | 2 |
| Number of Outputs | 1 |
| Number of Pins | 14 |
| Number of Terminals | 14 |
| Operating Supply Voltage | 3.3V |
| Propagation Delay | 10ns |
| Quiescent Current | 2µA |
| REACH SVHC | No |
| RoHS | Non-Compliant |
| Schmitt Trigger Input | No |
| Terminal Pitch | 1.27mm |
| Width | 3.9mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

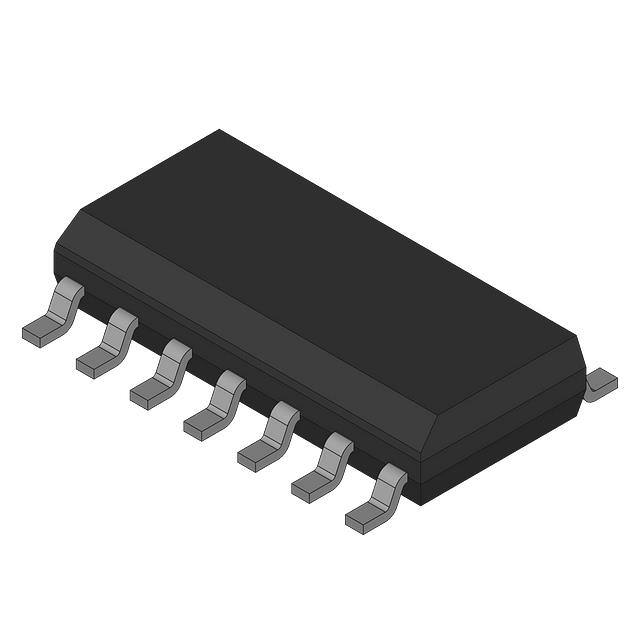

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| onsemi | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| Texas Instruments | Unknown | ||
| onsemi | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| Texas Instruments | Unknown | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| Texas Instruments | Unknown |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 13310
|
$ | 0.0663 | 0.055 | 0.0491 | |||||
| Verical |
US: 13310
|
$ | 0.0614 | |||||||
