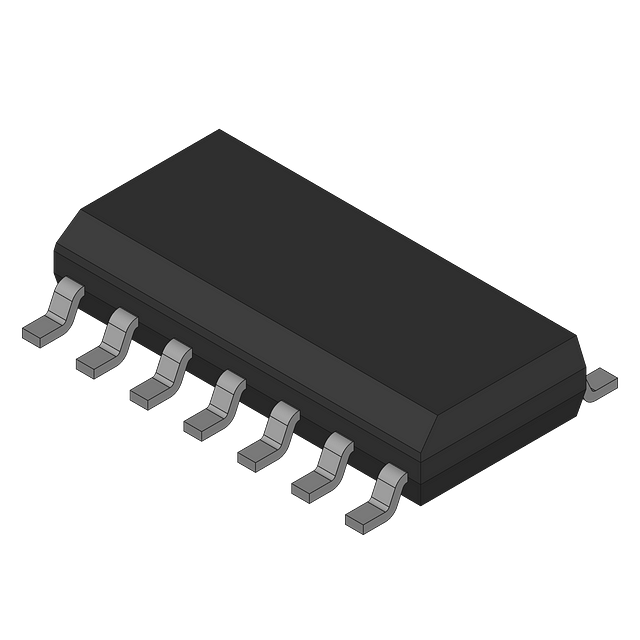

MC74VHCT86ADR2 - onsemi

XOR Gate 4-Element 2-IN CMOS 14-Pin SOIC N T/R

Case/Package	SOP
China RoHS	Non-Compliant
Height - Seated (Max)	1.75mm
High Level Output Current	8mA
Harmonized Tariff Schedule (HTS) Code	8542.39.00.60
Introduction Date	1999-10-12
Lead Free	Contains Lead
Length	8.65mm
Lifecycle Status	Obsolete
Load Capacitance	50pF
Logic Function	OR, XOR
Low Level Output Current	8mA
Max Operating Temperature	85°C
Max Supply Voltage	5.5V
Min Operating Temperature	-55°C
Min Supply Voltage	2V
Mount	Surface Mount
Number of Circuits	4
Number of Gates	4
Number of Inputs	2
Number of Pins	14
Number of Terminals	14
Operating Supply Voltage	3.3V
Packaging	Tape & Reel (TR)
Propagation Delay	10ns
Quiescent Current	2µA
REACH SVHC	No
RoHS	Non-Compliant
Schmitt Trigger Input	No
Terminal Pitch	1.27mm
Width	3.9mm

RoHS : Unconfirmed

REACH SVHC : No
