Technical Details
| Case/Package | SOP |
| China RoHS | Non-Compliant |
| Current Rating | 100mA |
| Dropout Voltage | 1.7V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height - Seated (Max) | 1.75mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 1990-01-01 |
| Lead Free | Contains Lead |
| Length | 4.9mm |
| Lifecycle Status | Obsolete |
| Max Input Voltage | 20V |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 125°C |
| Min Input Voltage | 7V |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Number of Regulators | 1 |
| Number of Terminals | 8 |
| Output Current | 100mA |
| Output Type | Fixed |
| Output Voltage | 5V |
| Polarity | Positive |
| REACH SVHC | No |
| RoHS | Non-Compliant |
| Terminal Pitch | 1.27mm |
| Voltage Tolerance | 5% |
| Width | 3.9mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

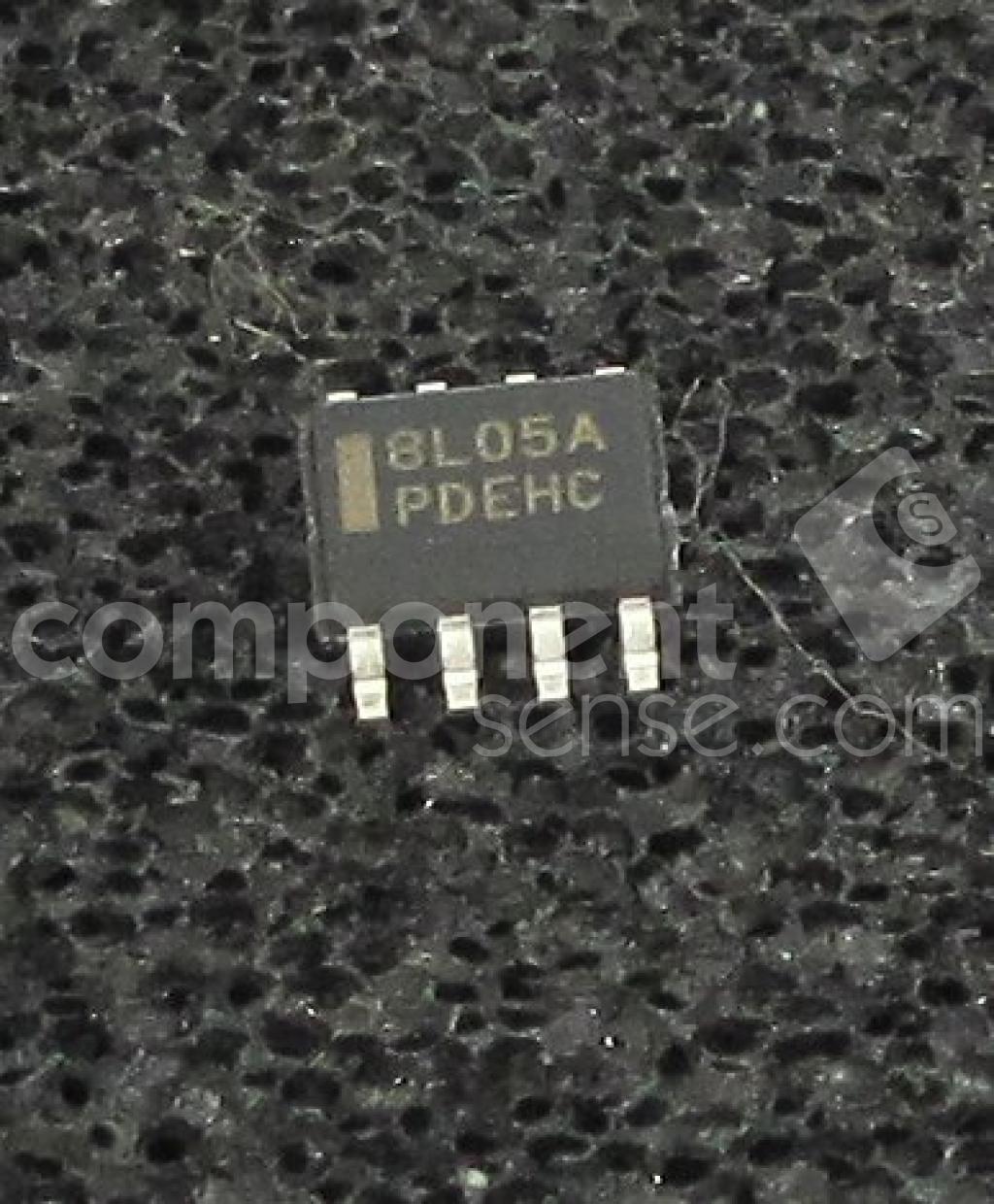

Images
Component Sense
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Production | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| Nisshinbo Micro Devices Inc. | Unknown | ||
| onsemi | Obsolete | ||
| Diodes Inc. | Obsolete | ||
| Texas Instruments | Unknown | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| Texas Instruments | Unknown |
