Discrete Semiconductors > Transistors > BJTs

MJ11028G - onsemi

50 A, 60 V NPN Darlington Bipolar Power Transistor

Technical Details

Body Material	Metal
Case/Package	TO-204-3
China RoHS	Non-Compliant
Collector Base Voltage (VCBO)	60V
Collector Emitter Breakdown Voltage	60V
Collector Emitter Saturation Voltage	2.5V
Collector Emitter Voltage (VCEO)	60V
Continuous Collector Current	50A
Country of Origin	Mexico
Current Rating	50A
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Emitter Base Voltage (VEBO)	5V
hFE Min	400
Introduction Date	1991-06-01
Lead Free	Lead Free
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Collector Current	50A
Max Operating Temperature	200°C
Max Power Dissipation	300W
Min Operating Temperature	-55°C
Number of Elements	1
Number of Pins	2
Number of Terminals	2
Polarity	NPN
Power Dissipation	300mW
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8541290080, 8541290080\|8541290080\|8541290080\|8541290080\|8541290080
Voltage Rating (DC)	50V

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

onsemi MJ11028G | Rochester Electronics

Rochester Electronics

Datasheets

Rochester Electronics

Rochester Electronics

Lifecycle Status Indicator

Production

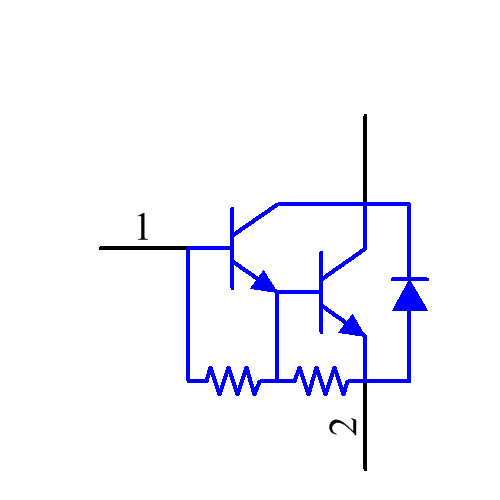

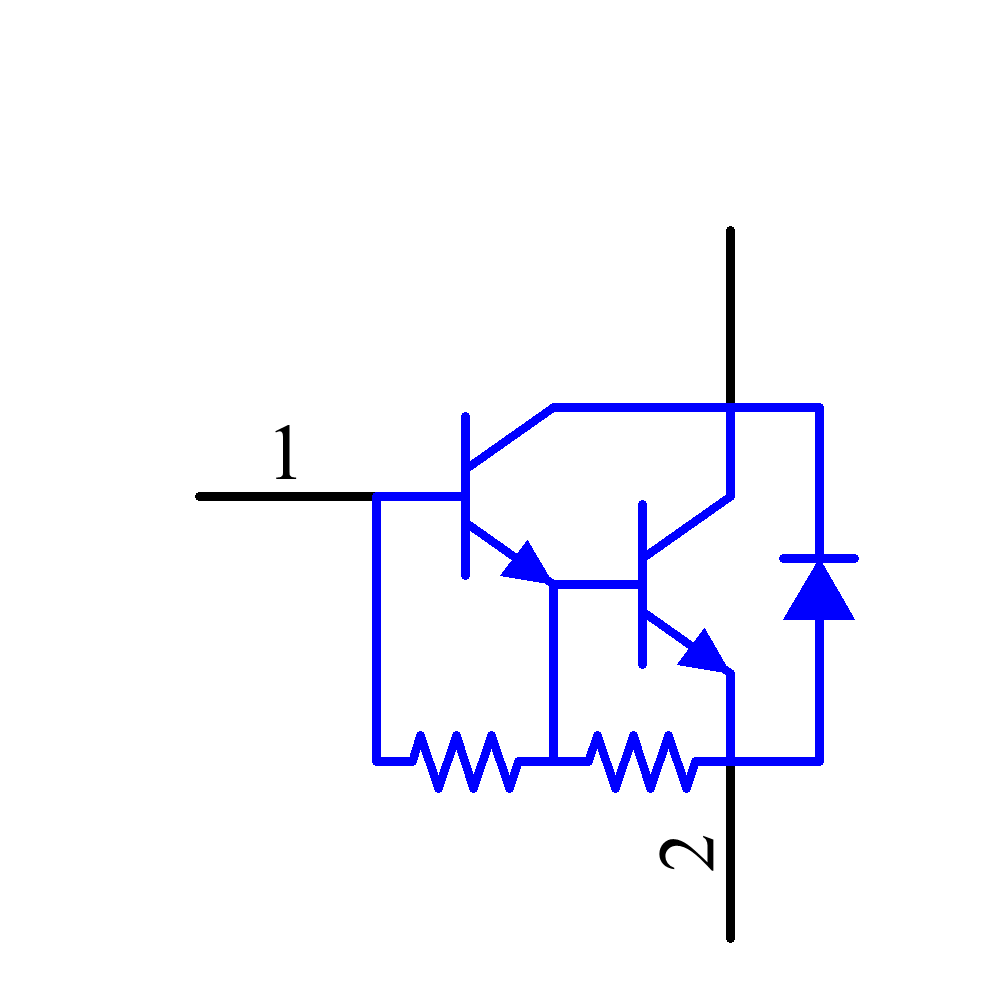

Symbol

MJ11028G Symbol - onsemi

MJ11028G Symbol - onsemi

MJ11028G Symbol - onsemi

MJ11028G Symbol - onsemi

‹ ›

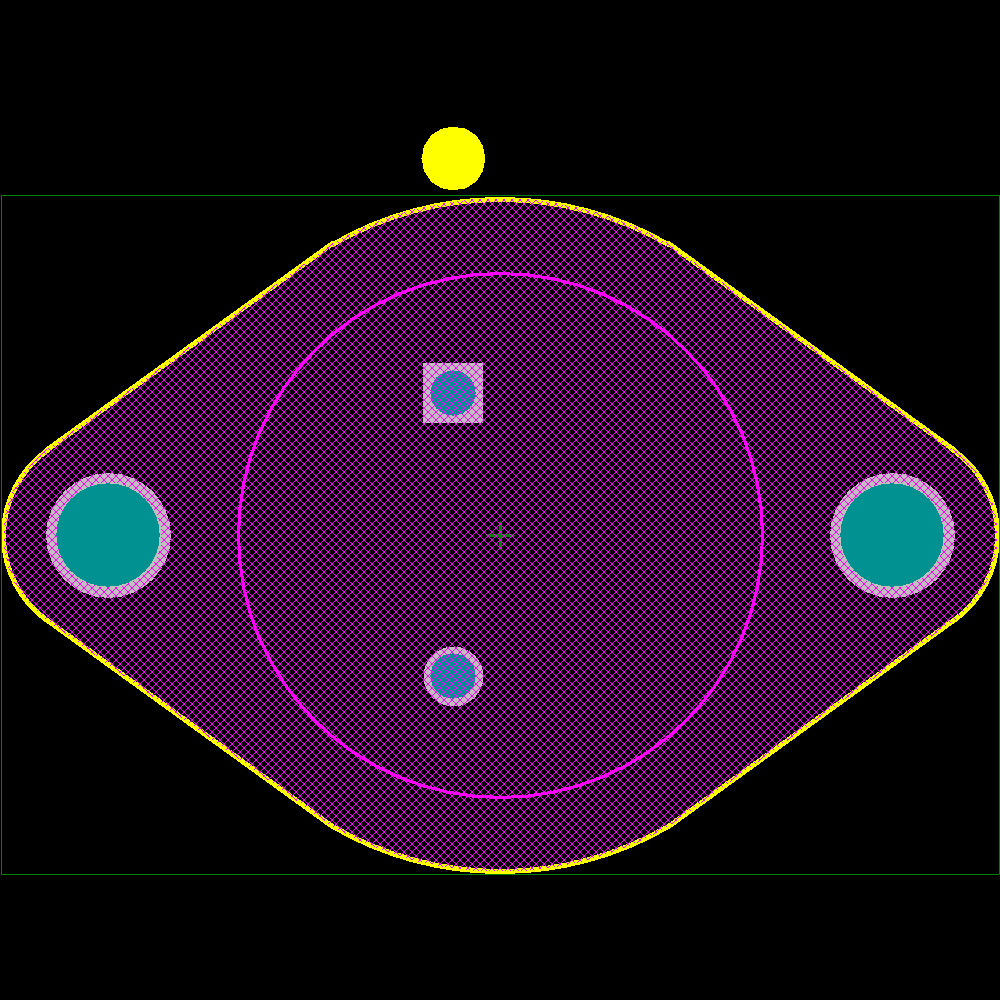

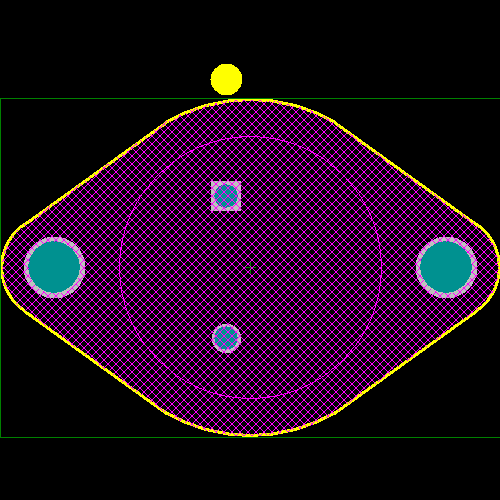

Footprint

MJ11028G Footprint - onsemi

MJ11028G Footprint - onsemi

MJ11028G Footprint - onsemi

MJ11028G Footprint - onsemi

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
onsemi	MJ11028	Obsolete
Semelab	MJ11028	Unknown
NTE Electronics	NTE2349	Obsolete
Semelab	MJ11032	Unknown
onsemi	MJ11030	Obsolete
onsemi	MJ11030G	Obsolete
Fujitsu	2SC2433	Obsolete
onsemi	2N6284	Obsolete
onsemi	2N6282	Obsolete
onsemi	2N6056	Obsolete

See more alternatives See less alternatives
