MJ11029G - onsemi
Power Bipolar Transistor, 50A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, TO-204AA, Metal, 2 Pin
Technical Details
| Body Material | Metal |
| Case/Package | TO-204-3 |
| China RoHS | Non-Compliant |
| Collector Base Voltage (VCBO) | 60V |
| Collector Emitter Voltage (VCEO) | 60V |
| Continuous Collector Current | 50A |
| Current Rating | 50A |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| hFE Min | 400 |
| Lead Free | Lead Free |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Collector Current | 50A |
| Max Operating Temperature | 200°C |
| Max Power Dissipation | 300W |
| Min Operating Temperature | -55°C |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Polarity | PNP |
| Power Dissipation | 300mW |
| REACH SVHC | No |
| RoHS | Compliant |
| Voltage Rating (DC) | 60V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

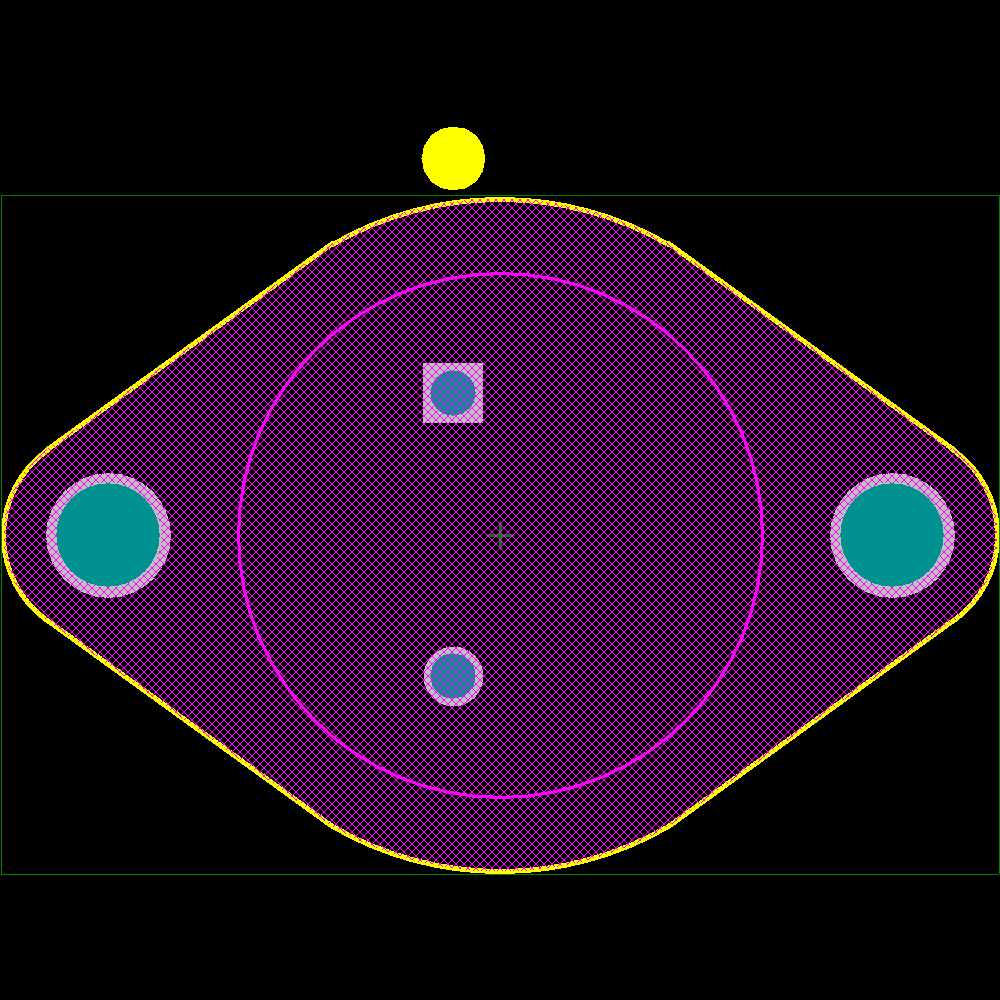

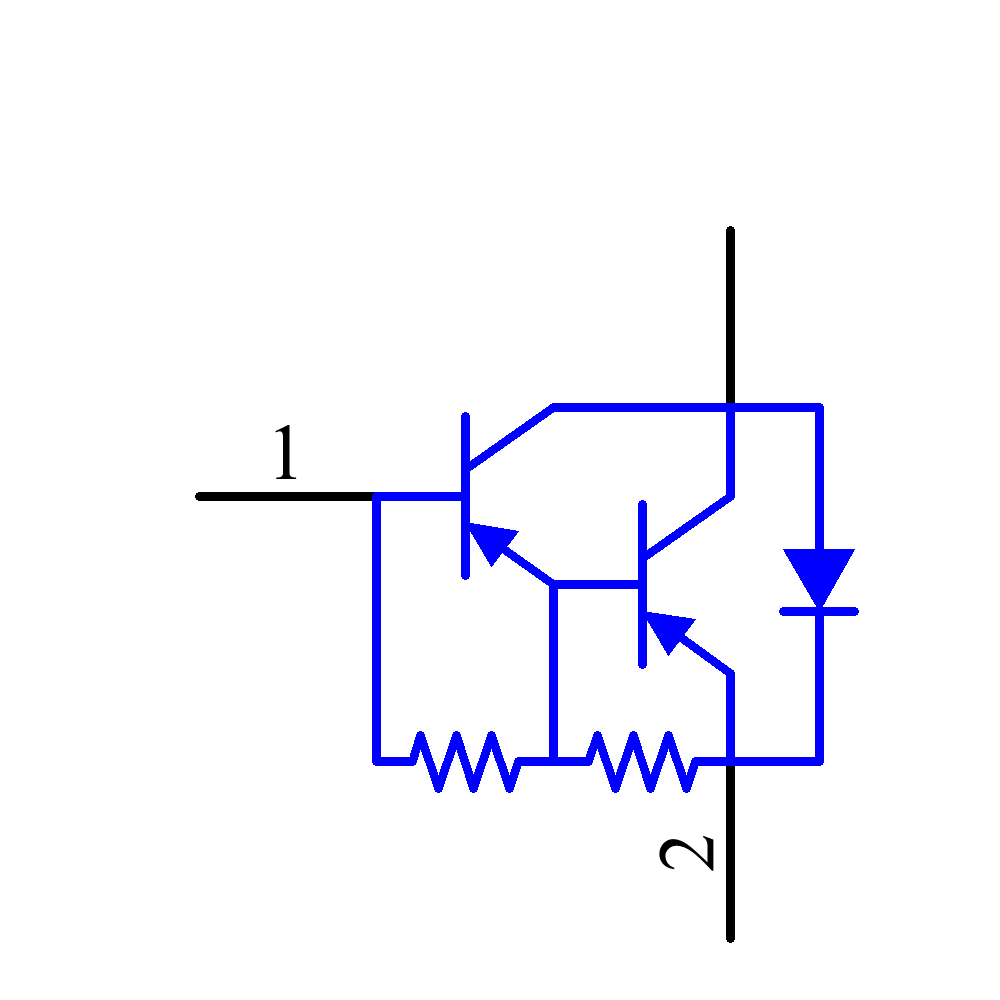

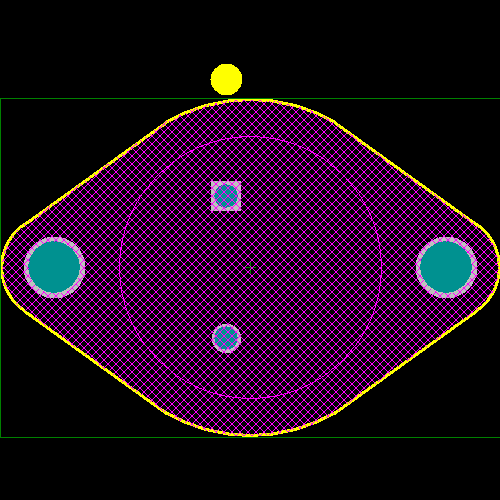

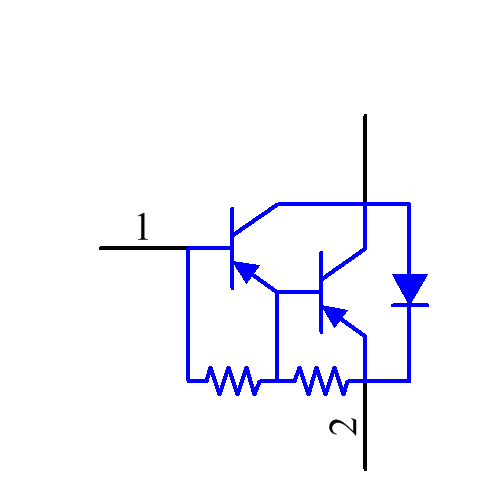

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| Central Semiconductor | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | EOL | ||
| onsemi | Obsolete | ||
| Central Semiconductor | Obsolete | ||
| Central Semiconductor | Obsolete |
