MJ11032G - onsemi

Bipolar (BJT) Transistor NPN Darlington 120V 50A 300W Through Hole TO-204 (TO-3)

Technical Details

Body Material	Metal
Case/Package	TO-204-3
China RoHS	Non-Compliant
Collector Base Voltage (VCBO)	120V
Collector Emitter Breakdown Voltage	120V
Collector Emitter Saturation Voltage	2.5V
Collector Emitter Voltage (VCEO)	120V
Contact Plating	Copper, Silver, Tin
Continuous Collector Current	50A
Country of Origin	Mexico
Current Rating	50A
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Emitter Base Voltage (VEBO)	5V
Height	8.51mm
hFE Min	400
Introduction Date	1991-06-01
Lead Free	Lead Free
Length	38.86mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Collector Current	50A
Max Operating Temperature	200°C
Max Power Dissipation	300W
Min Operating Temperature	-55°C
Number of Elements	1
Number of Pins	2
Number of Terminals	2
Polarity	NPN
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Voltage Rating (DC)	120V
Width	26.67mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

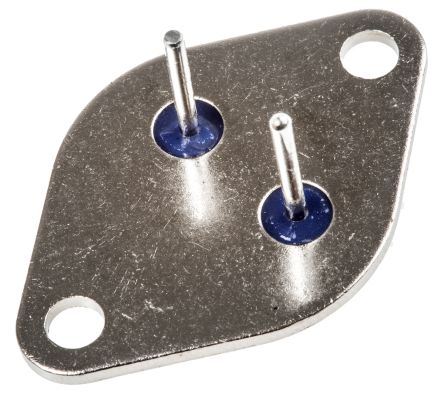

Images

onsemi MJ11032G | RS

RS

Datasheets

Future Electronics

Lifecycle Status Indicator

Production

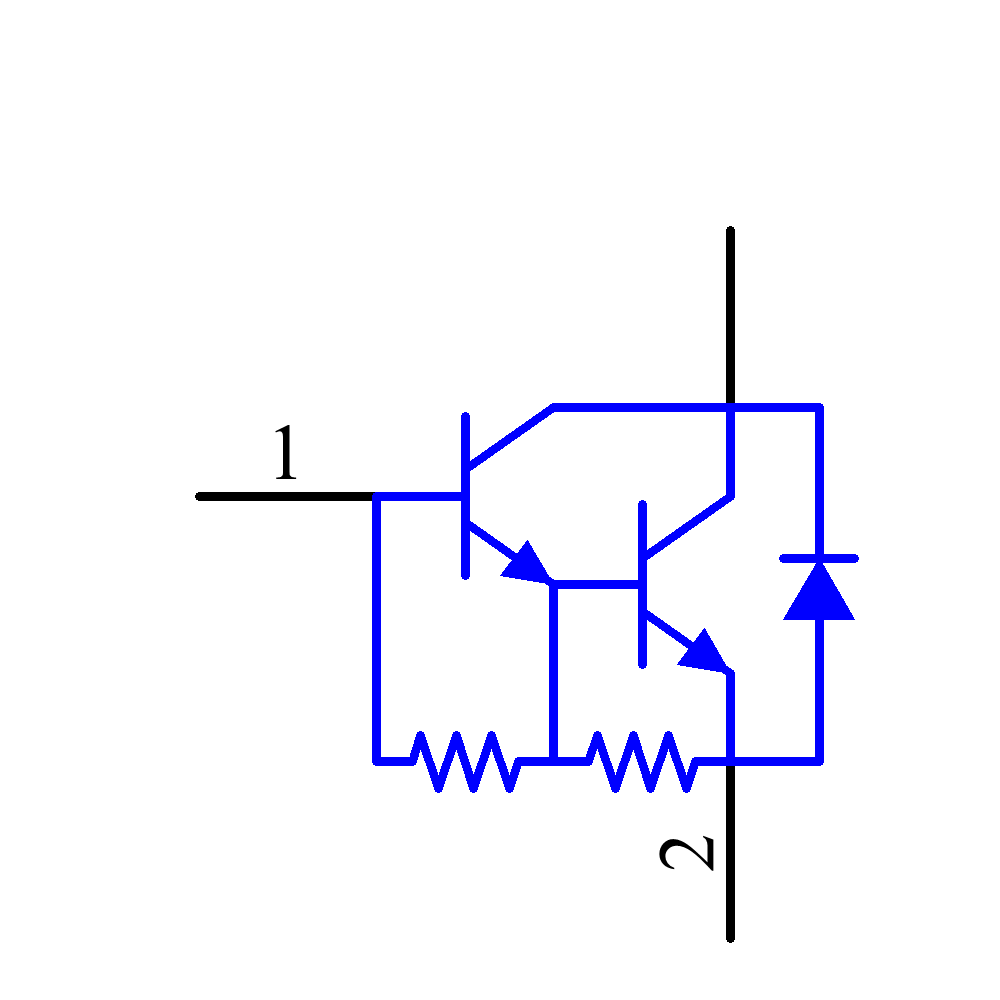

Symbol

MJ11032G Symbol - onsemi

MJ11032G Symbol - onsemi

MJ11032G Symbol - onsemi

MJ11032G Symbol - onsemi

‹ ›

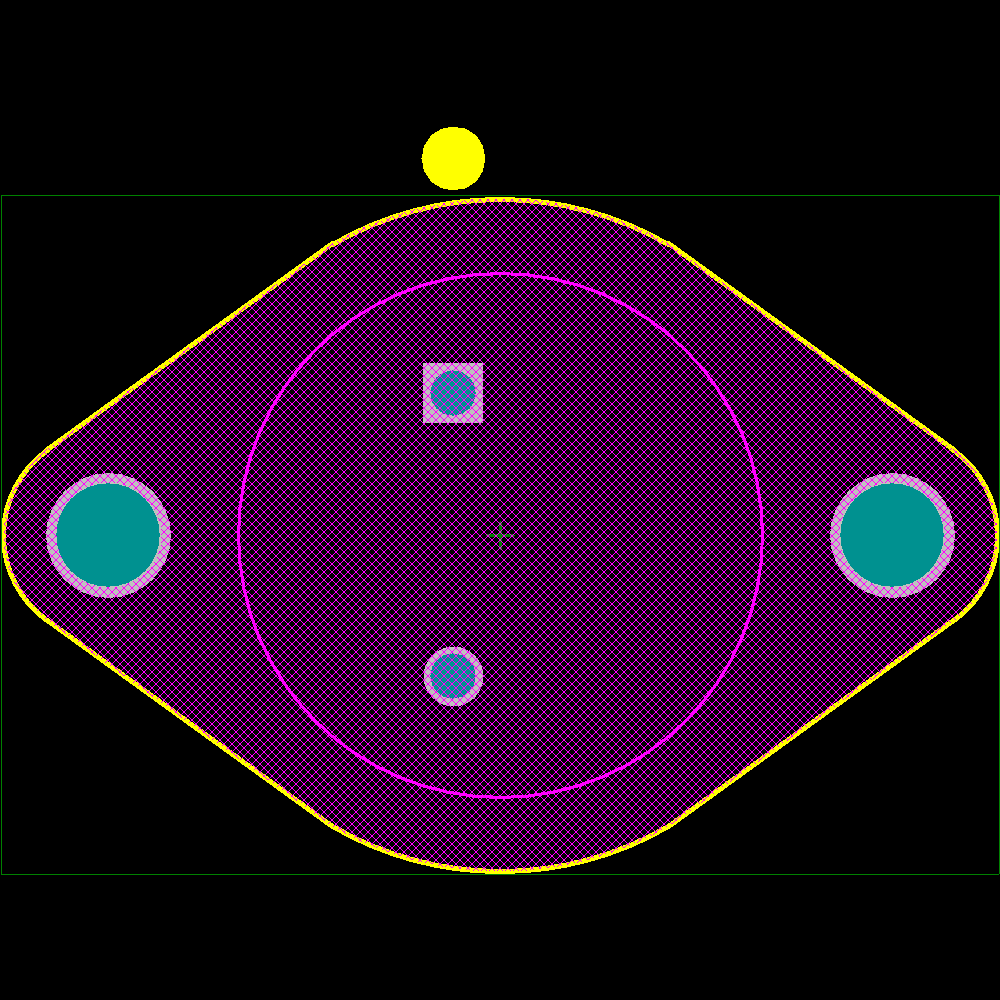

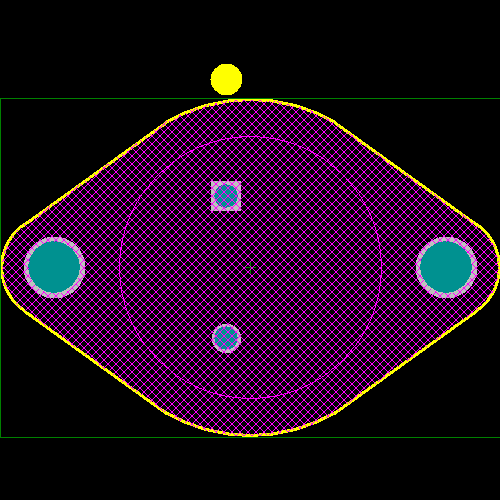

Footprint
