Discrete Semiconductors > Transistors > BJTs

MJ15004G - onsemi

Transistor, Bipolar, Si, PNP, Power, Vceo 140VDC, IC 20A, Pd 250W, TO-204AA (TO-3)

Technical Details

Body Material	Metal
Case/Package	TO-204
China RoHS	Non-Compliant
Collector Base Voltage (VCBO)	140V
Collector Emitter Saturation Voltage	1V
Collector Emitter Voltage (VCEO)	140V
Contact Plating	Tin
Current Rating	-20A
Element Configuration	Single
Emitter Base Voltage (VEBO)	5V
Frequency	2MHz
Gain Bandwidth Product	2MHz
Height	8.51mm
hFE Min	25
Lead Free	Lead Free
Length	39.37mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Collector Current	20A
Max Frequency	2MHz
Max Junction Temperature (Tj)	200°C
Max Operating Temperature	200°C
Max Power Dissipation	250W
Min Operating Temperature	-65°C
Number of Elements	1
Number of Pins	2
Number of Terminals	2
Polarity	PNP
Power Dissipation	250W
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Transition Frequency	2MHz
Voltage Rating (DC)	-140V
Weight	4.535924g
Width	26.67mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

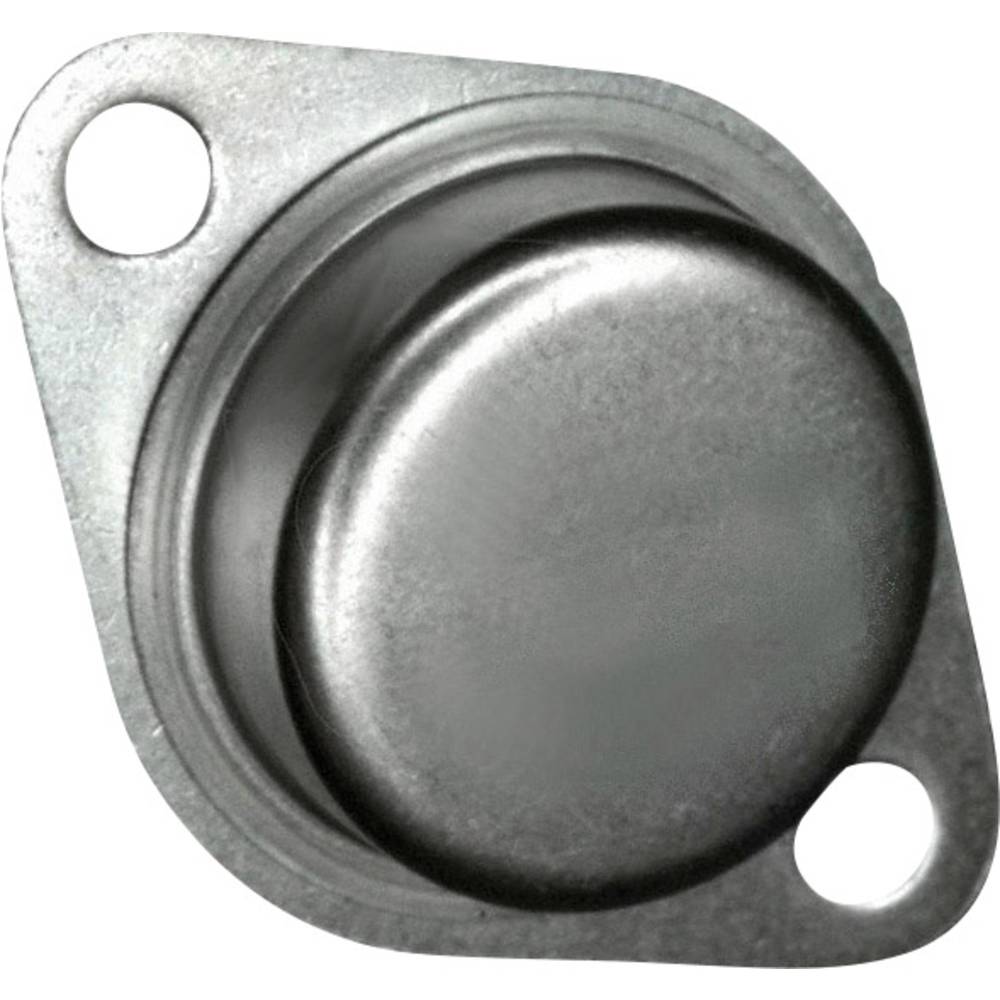

onsemi MJ15004G | RS

RS

Datasheets

Future Electronics

Lifecycle Status Indicator

Production

Symbol

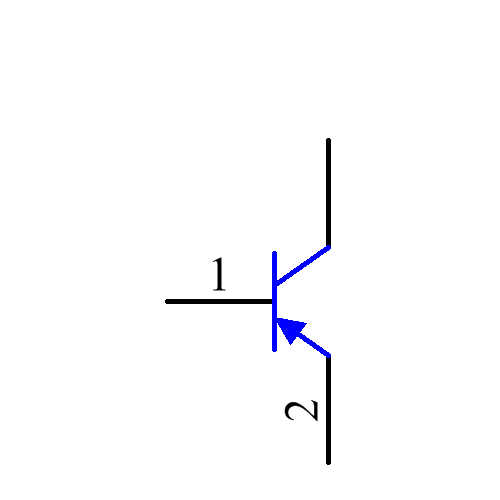

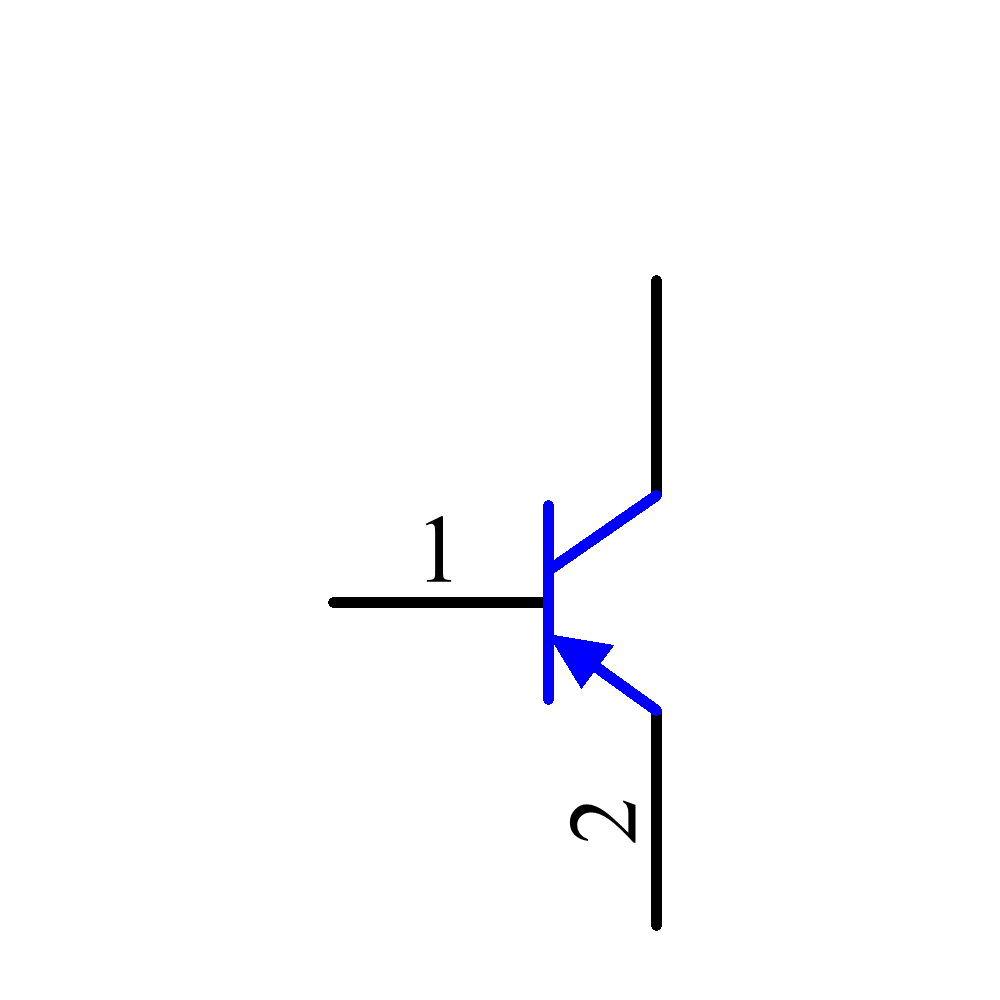

MJ15004G Symbol - onsemi

MJ15004G Symbol - onsemi

MJ15004G Symbol - onsemi

MJ15004G Symbol - onsemi

‹ ›

Footprint

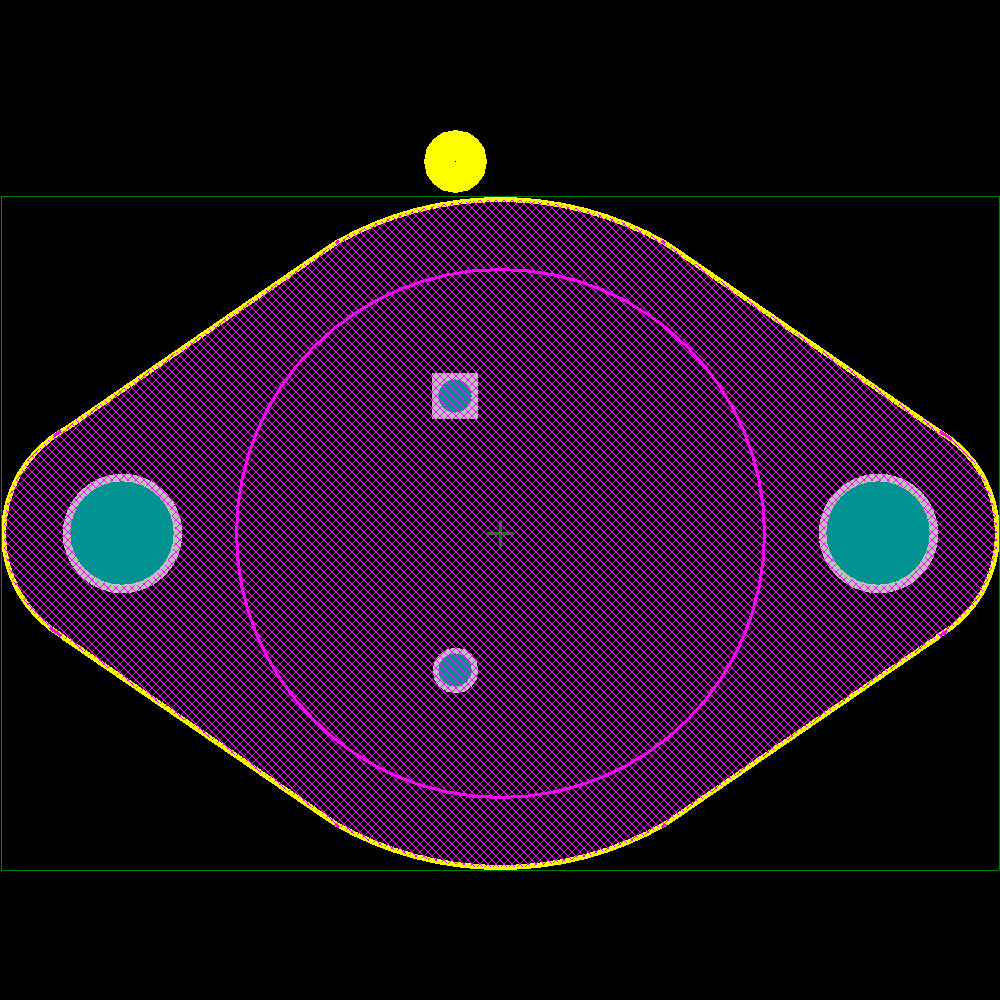

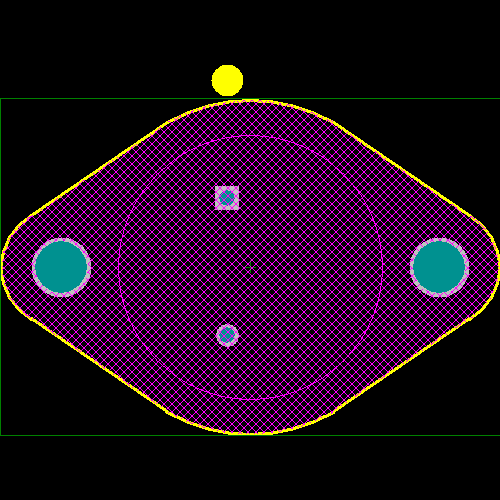

MJ15004G Footprint - onsemi

MJ15004G Footprint - onsemi

MJ15004G Footprint - onsemi

MJ15004G Footprint - onsemi

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
onsemi	MJ15004	Obsolete
Multicomp	MJ15004	Production
onsemi	2N6031G	Obsolete
onsemi	2N5883	Obsolete
STMicroelectronics	BDW52C	Obsolete
onsemi	2N5884	Obsolete
onsemi	2N6609G	Obsolete
STMicroelectronics	BUW32A	Obsolete
onsemi	MJ15002	Obsolete
Fairchild Semiconductor	2N4399	Obsolete

See more alternatives See less alternatives
