MJ15025G - onsemi
Transistor; Bipolar; Si; PNP; Power; VCEO 250VDC; IC 16A; PD 250W; TO-204AA (TO-3)
Technical Details
| Body Material | Metal |
| Case/Package | TO-204-3 |
| China RoHS | Non-Compliant |
| Collector Base Voltage (VCBO) | 400V |
| Collector Emitter Saturation Voltage | 1.4V |
| Collector Emitter Voltage (VCEO) | 250V |
| Country of Origin | Mexico |
| Current Rating | -16A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| Frequency | 4MHz |
| Gain Bandwidth Product | 4MHz |
| Height | 8.51mm |
| hFE Min | 5 |
| Introduction Date | 1991-06-01 |
| Lead Free | Lead Free |
| Length | 39.37mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Collector Current | 16A |
| Max Frequency | 4MHz |
| Max Operating Temperature | 200°C |
| Max Power Dissipation | 250W |
| Min Operating Temperature | -65°C |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Polarity | PNP |
| Power Dissipation | 250W |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8541290080 |
| Transition Frequency | 4MHz |
| Voltage Rating (DC) | -250V |
| Weight | 4.535924g |
| Width | 26.67mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

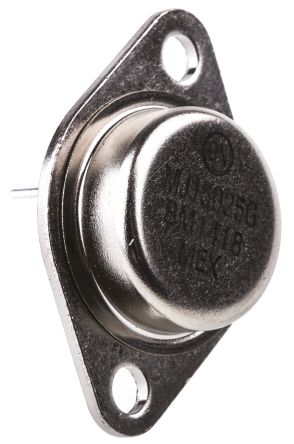

Images
RS
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| onsemi | Obsolete | ||
| Fairchild Semiconductor | Obsolete | ||
| onsemi | Obsolete |
