Discrete Semiconductors > Transistors > BJTs

MJ21193G - onsemi

Bipolar Transistor, PNP, 250 V, 16 A

Technical Details

Body Material	Metal
Case/Package	TO-204-3
China RoHS	Non-Compliant
Collector Base Voltage (VCBO)	400V
Collector Emitter Saturation Voltage	1.4V
Collector Emitter Voltage (VCEO)	250V
Current Rating	-16A
Element Configuration	Single
Emitter Base Voltage (VEBO)	5V
Frequency	4MHz
Gain Bandwidth Product	4MHz
Height	8.51mm
hFE Min	8
Lead Free	Lead Free
Length	39.37mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Collector Current	16A
Max Frequency	4MHz
Max Operating Temperature	200°C
Max Power Dissipation	250W
Min Operating Temperature	-65°C
Number of Elements	1
Number of Pins	2
Number of Terminals	2
Polarity	PNP
Power Dissipation	250W
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8541290080
Transition Frequency	4MHz
Voltage Rating (DC)	-250V
Weight	4.535924g
Width	26.67mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

onsemi MJ21193G | Farnell

Farnell

Datasheets

Lifecycle Status Indicator

Production

Symbol

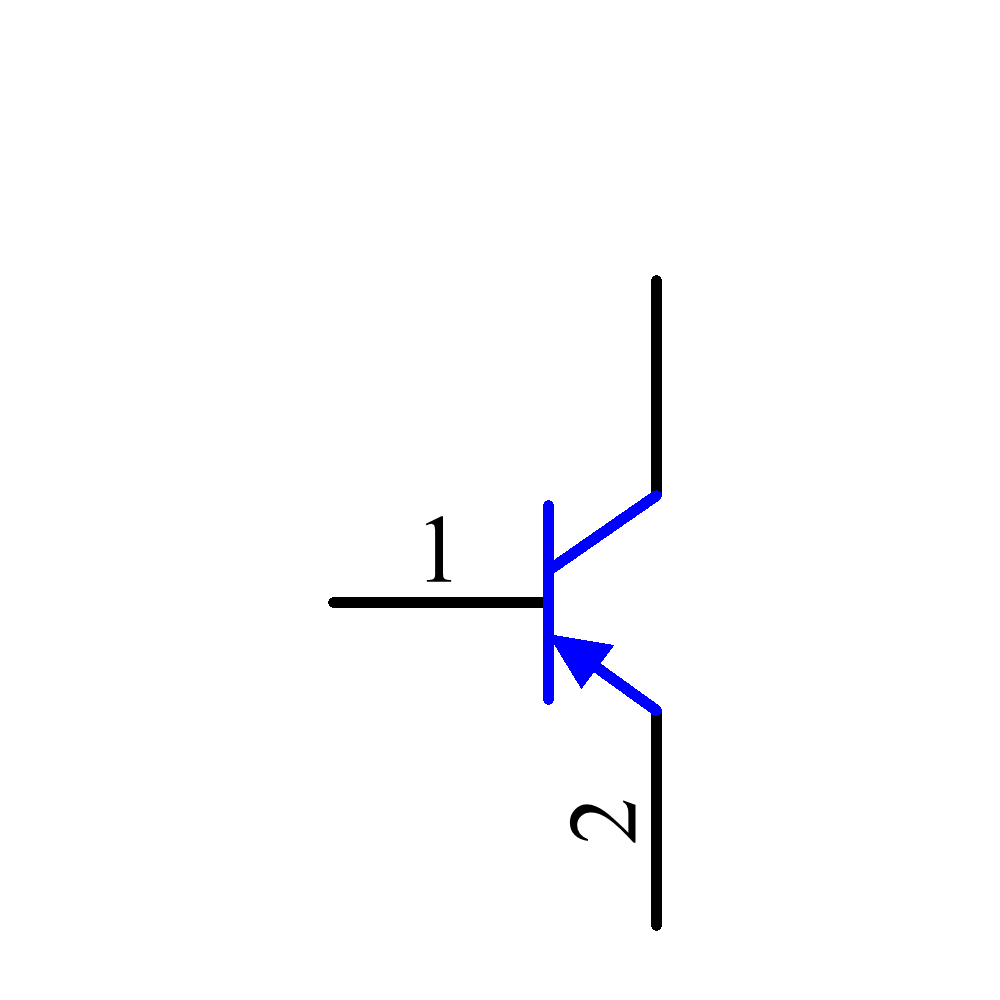

MJ21193G Symbol - onsemi

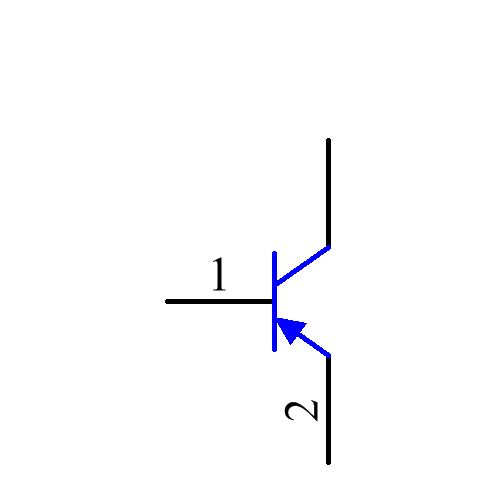

MJ21193G Symbol - onsemi

MJ21193G Symbol - onsemi

MJ21193G Symbol - onsemi

‹ ›

Footprint

MJ21193G Footprint - onsemi

MJ21193G Footprint - onsemi

MJ21193G Footprint - onsemi

MJ21193G Footprint - onsemi

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
onsemi	MJ21193	Obsolete
onsemi	2N6031G	Obsolete
onsemi	2N5883	Obsolete
STMicroelectronics	BDW52C	Obsolete
onsemi	2N5884	Obsolete
onsemi	2N6609G	Obsolete
STMicroelectronics	BUW32A	Obsolete
onsemi	MJ15002	Obsolete
Fairchild Semiconductor	2N4399	Obsolete
onsemi	MJ15012G	Obsolete

See more alternatives See less alternatives
