MJD112T4 - onsemi
Power Bipolar Transistor, 2A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 2 Pin
Technical Details
| Case/Package | TO-252-3 |
| Collector Base Voltage (VCBO) | 100V |
| Collector Emitter Breakdown Voltage | 100V |
| Collector Emitter Saturation Voltage | 2V |
| Collector Emitter Voltage (VCEO) | 100V |
| Continuous Collector Current | 2A |
| Country of Origin | Malaysia |
| Current Rating | 2A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| hFE Min | 200 |
| Introduction Date | 1991-06-01 |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Breakdown Voltage | 100V |
| Max Collector Current | 2A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 20W |
| Min Operating Temperature | -65°C |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 2 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Power Dissipation | 20W |
| REACH SVHC | No |
| RoHS | Compliant |
| Transition Frequency | 25MHz |
| Voltage Rating (DC) | 100V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

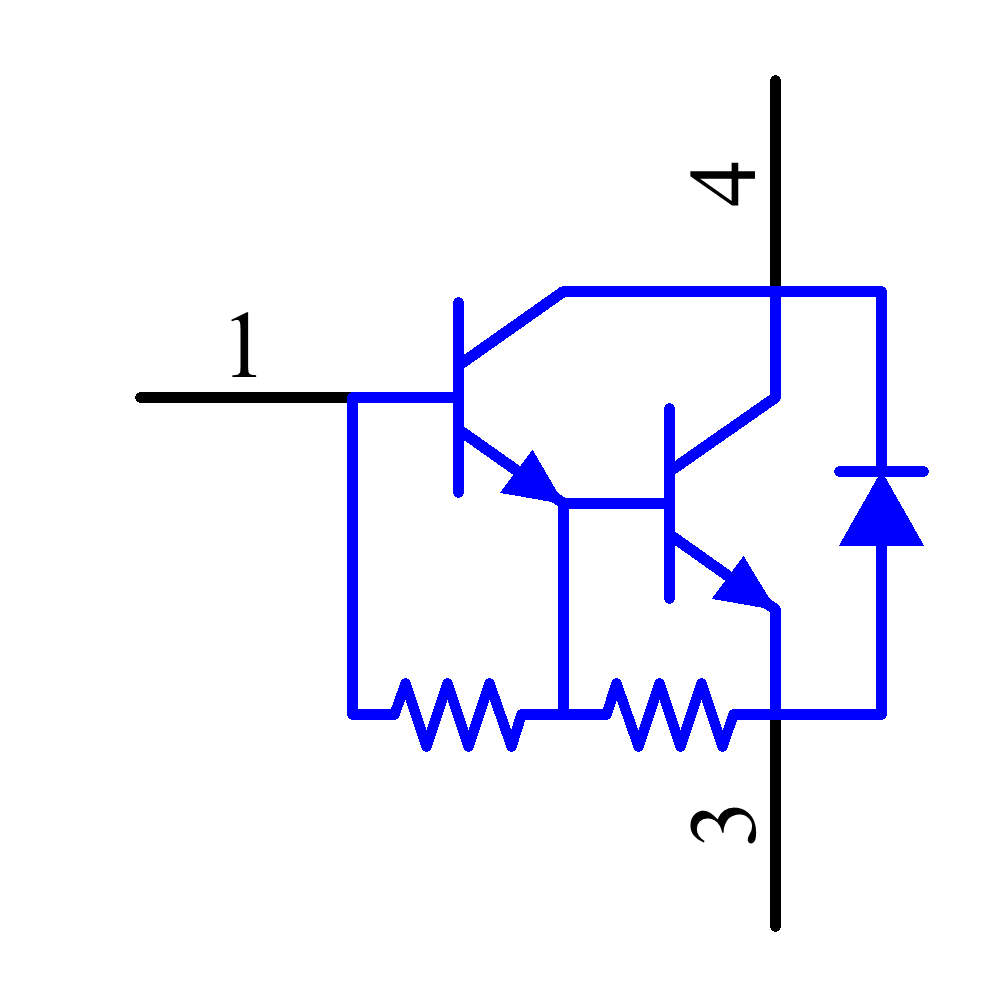

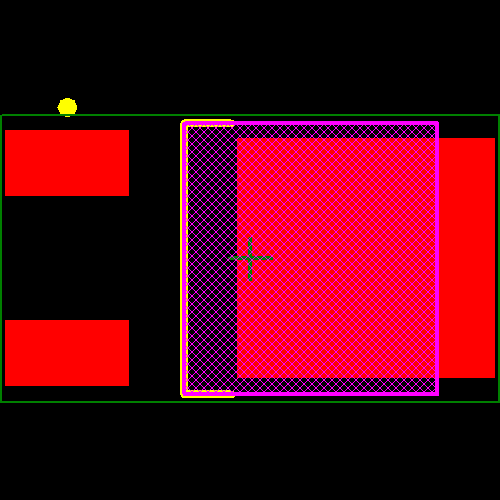

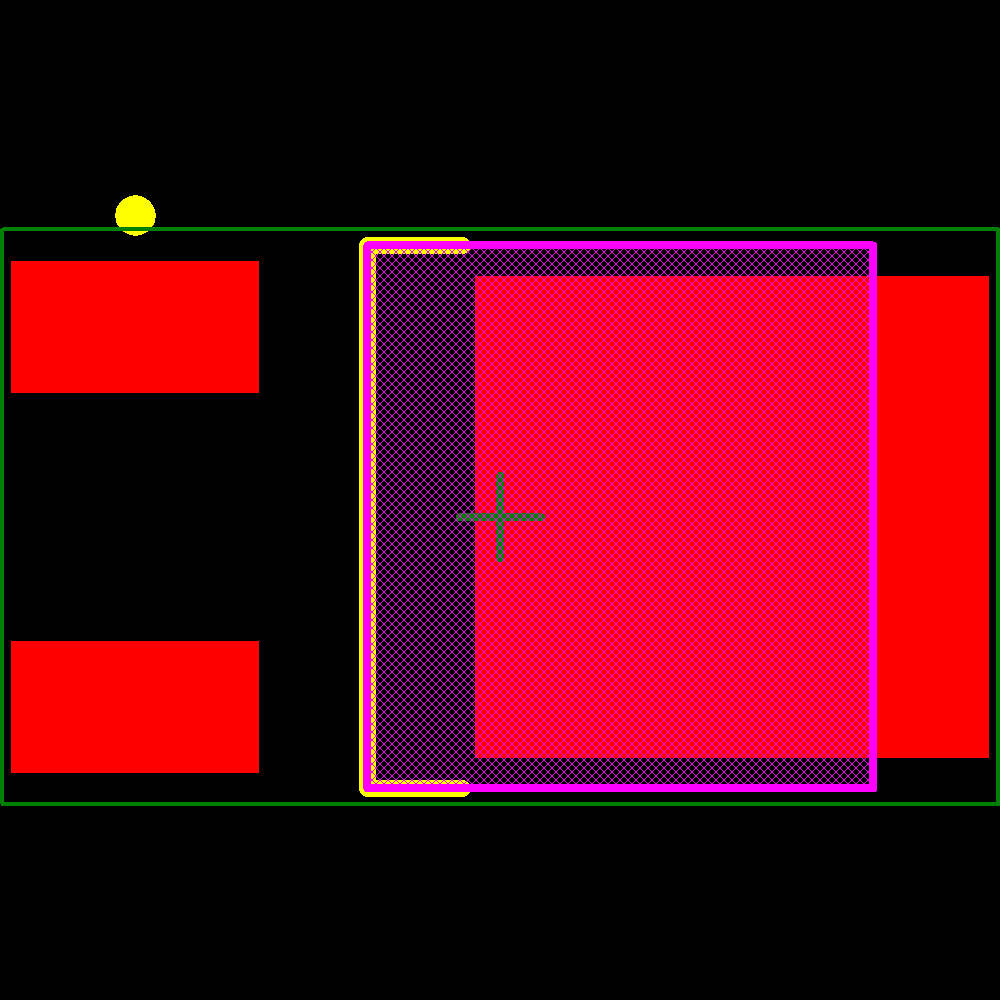

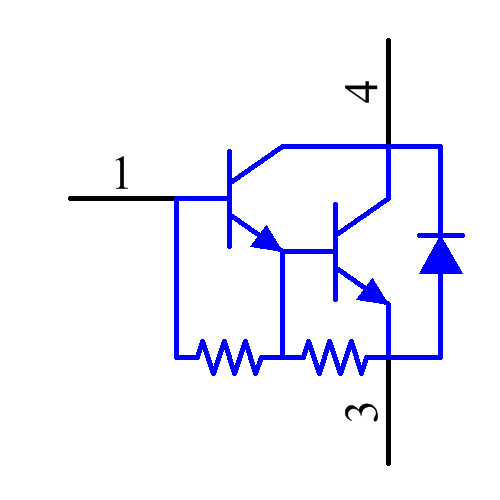

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| onsemi | Production | ||
| STMicroelectronics | Production | ||
| onsemi | Production | ||
| onsemi | Production | ||
| onsemi | Production | ||
| Central Semiconductor | Obsolete | ||
| STMicroelectronics | Production | ||
| Central Semiconductor | Obsolete | ||
| onsemi | Production |
