MJE15029G - onsemi

Trans GP BJT PNP 120V 8A 50000mW 3-Pin(3+Tab) TO-220AB Tube

Technical Details

Case/Package	TO-220-3
China RoHS	Non-Compliant
Collector Base Voltage (VCBO)	120V
Collector Emitter Breakdown Voltage	120V
Collector Emitter Saturation Voltage	500mV
Collector Emitter Voltage (VCEO)	120V
Contact Plating	Tin
Country of Origin	Mainland China
Current Rating	-8A
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Emitter Base Voltage (VEBO)	5V
Frequency	30MHz
Gain Bandwidth Product	30MHz
Height	9.28mm
hFE Min	20
Harmonized Tariff Schedule (HTS) Code	8541.29.00.95
Introduction Date	1995-06-01
Lead Free	Lead Free
Length	10.28mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Collector Current	8A
Max Frequency	30MHz
Max Operating Temperature	150°C
Max Power Dissipation	50W
Min Operating Temperature	-65°C
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Packaging	Bulk
Polarity	PNP
Power Dissipation	2W
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8541290080
Transition Frequency	30MHz
Voltage Rating (DC)	-120V
Weight	4.535924g
Width	4.82mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

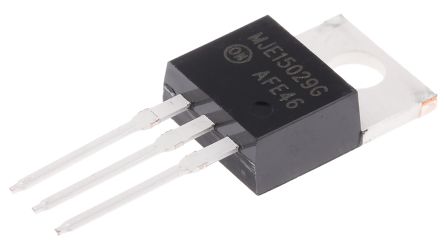

onsemi MJE15029G | RS

RS

Datasheets

Lifecycle Status Indicator

Production

Symbol

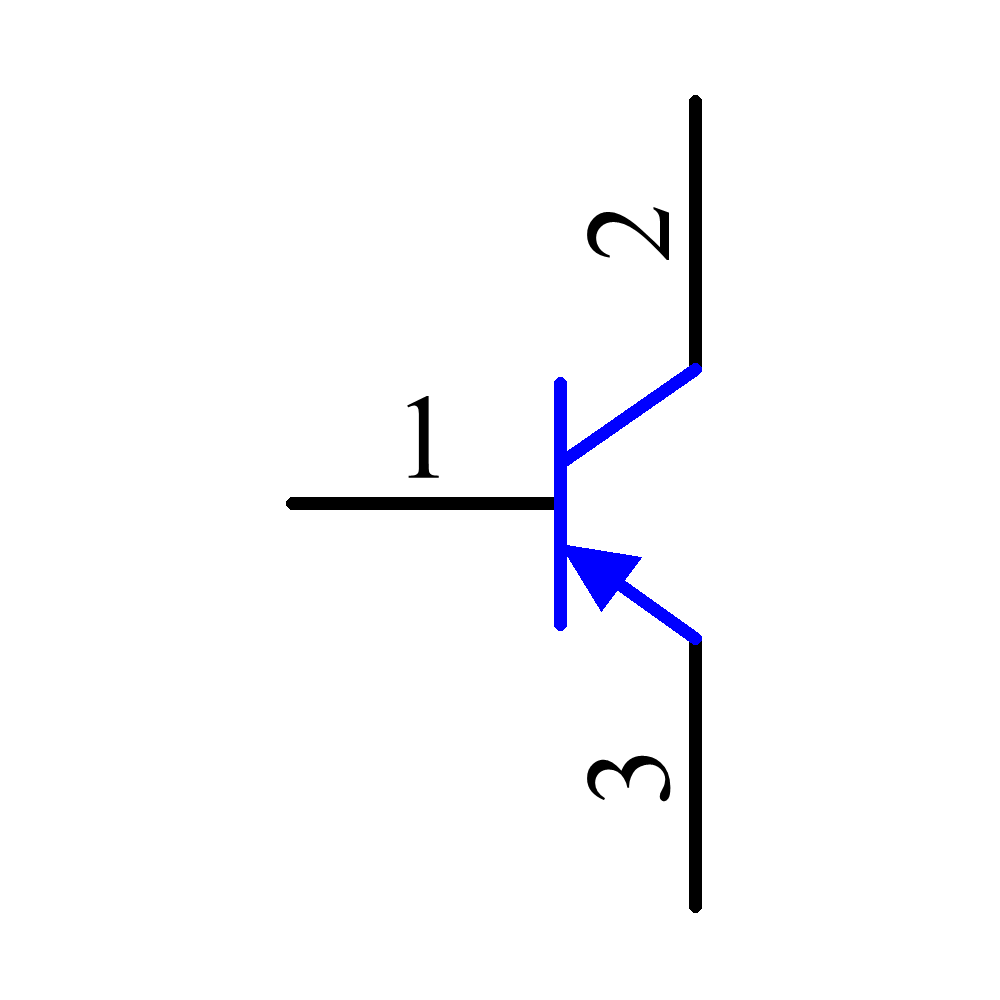

MJE15029G Symbol - onsemi

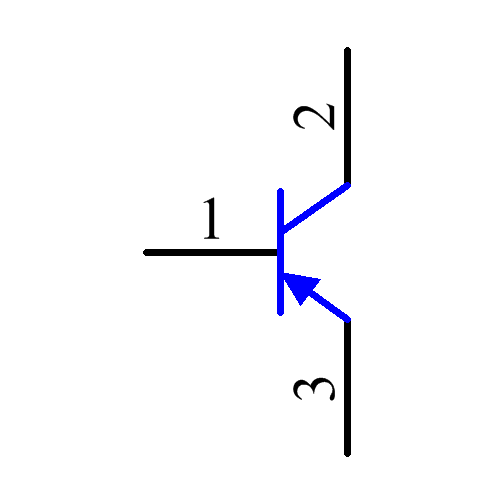

MJE15029G Symbol - onsemi

MJE15029G Symbol - onsemi

MJE15029G Symbol - onsemi

‹ ›

Footprint

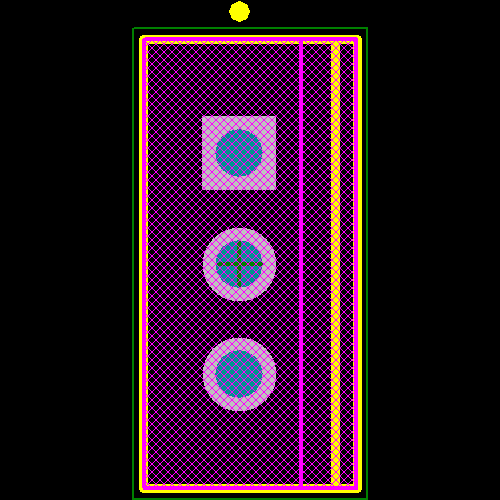

MJE15029G Footprint - onsemi
