MJE2955T - onsemi

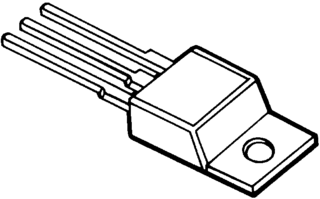

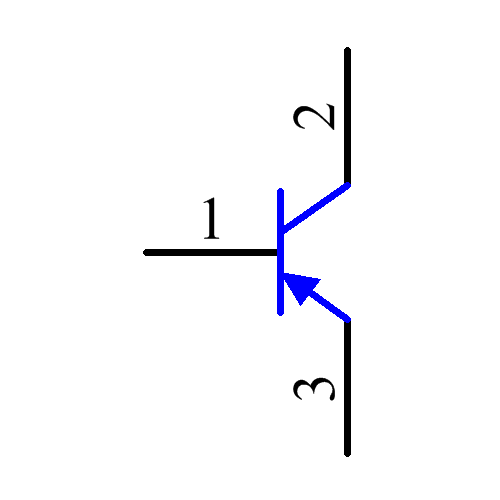

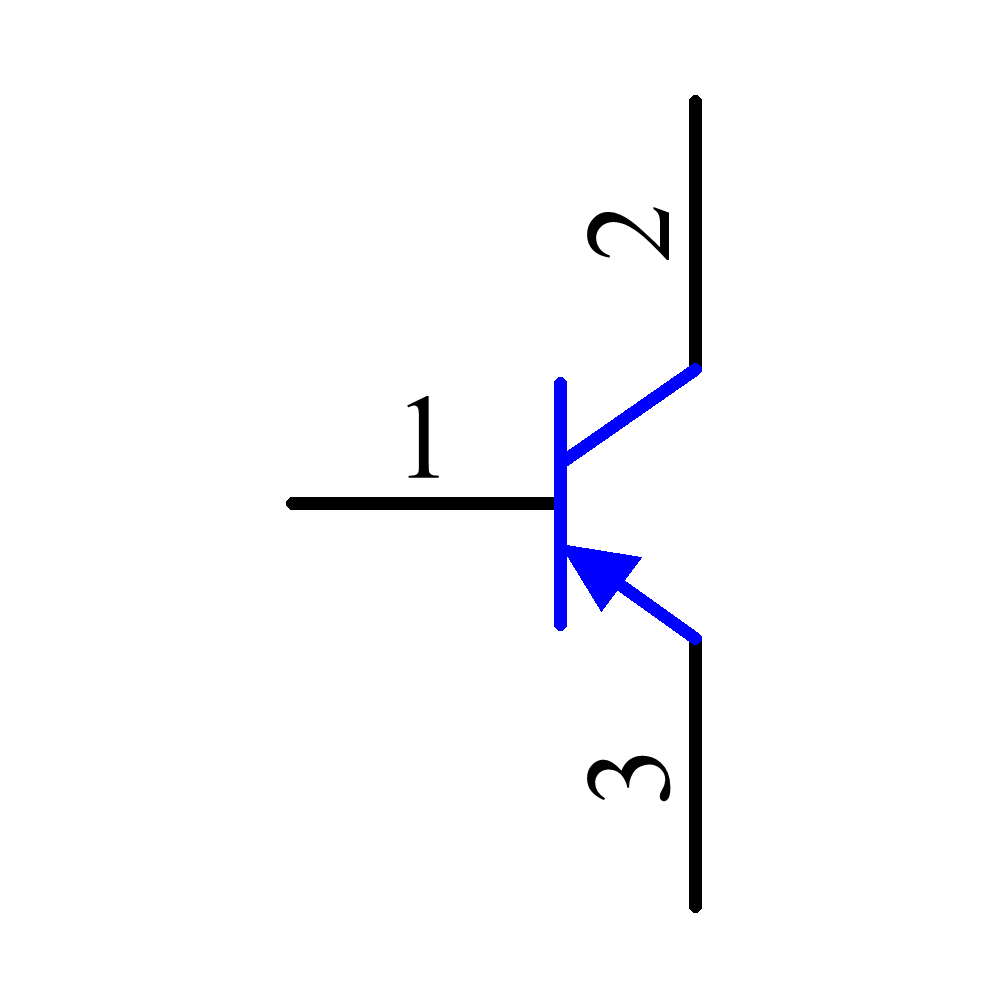

Tube Through Hole PNP Single Bipolar (BJT) Transistor 20 @ 4A 4V 10A 75W 2MHz

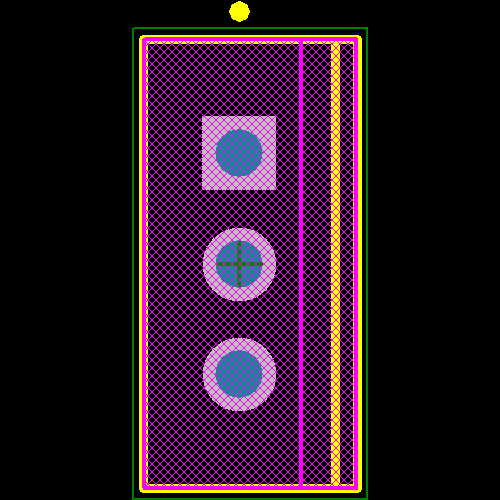

Technical Details
| Case/Package | TO-220-3 |
| China RoHS | Non-Compliant |
| Collector Base Voltage (VCBO) | 70V |
| Collector Emitter Breakdown Voltage | 400V |
| Collector Emitter Saturation Voltage | 1.1V |
| Collector Emitter Voltage (VCEO) | 60V |
| Country of Origin | Philippines |
| Current Rating | -10A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| Gain Bandwidth Product | 2MHz |
| Height | 9.28mm |
| hFE Min | 5 |
| Harmonized Tariff Schedule (HTS) Code | 8541.21.00.95 |
| Introduction Date | 1995-07-01 |
| Lead Free | Contains Lead |
| Length | 10.28mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Breakdown Voltage | 60V |
| Max Collector Current | 10A |
| Max Frequency | 2MHz |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 75W |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Bulk |
| Polarity | PNP |
| Power Dissipation | 600mW |
| REACH SVHC | No |
| RoHS | Compliant |
| Transition Frequency | 2MHz |
| Voltage Rating (DC) | -60V |
| Width | 4.82mm |
