MJE2955TG - onsemi

Bipolar Power Transistor, PNP, 10 A, 60 V, 75 Watt

Technical Details

Case/Package	TO-220-3
China RoHS	Non-Compliant
Collector Base Voltage (VCBO)	70V
Collector Emitter Saturation Voltage	1.1V
Collector Emitter Voltage (VCEO)	60V
Contact Plating	Tin
Current Rating	-10A
Element Configuration	Single
Emitter Base Voltage (VEBO)	5V
Frequency	2MHz
Gain Bandwidth Product	2MHz
Height	9.28mm
hFE Min	5
Lead Free	Lead Free
Length	10.28mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Collector Current	10A
Max Frequency	2MHz
Max Operating Temperature	150°C
Max Power Dissipation	75W
Min Operating Temperature	-55°C
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Packaging	Bulk
Polarity	PNP
Power Dissipation	75W
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8541290080
Transition Frequency	2MHz
Voltage Rating (DC)	-60V
Weight	4.535924g
Width	4.82mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

onsemi MJE2955TG | Future Electronics

Future Electronics

Datasheets

Future Electronics

Lifecycle Status Indicator

Production

Symbol

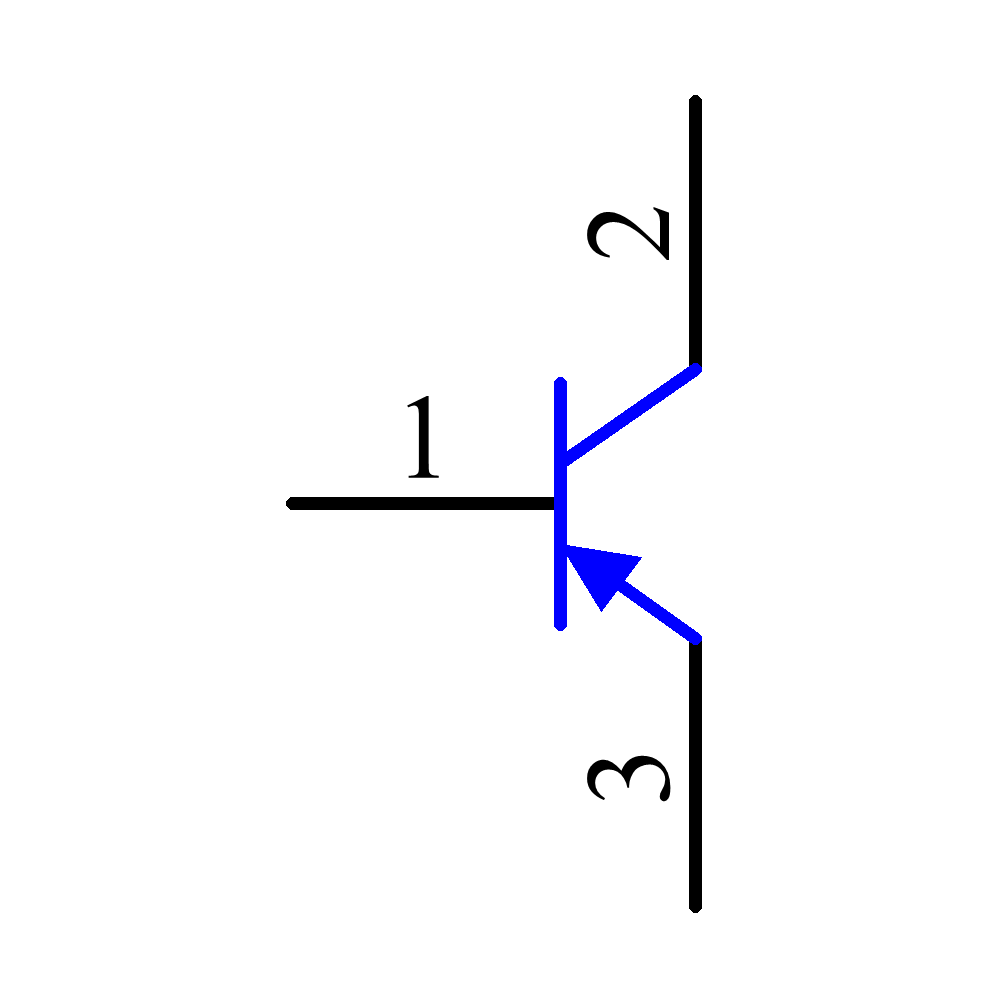

MJE2955TG Symbol - onsemi

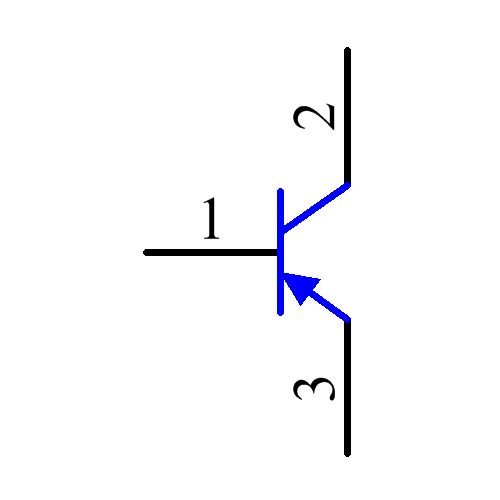

MJE2955TG Symbol - onsemi

MJE2955TG Symbol - onsemi

MJE2955TG Symbol - onsemi

‹ ›

Footprint

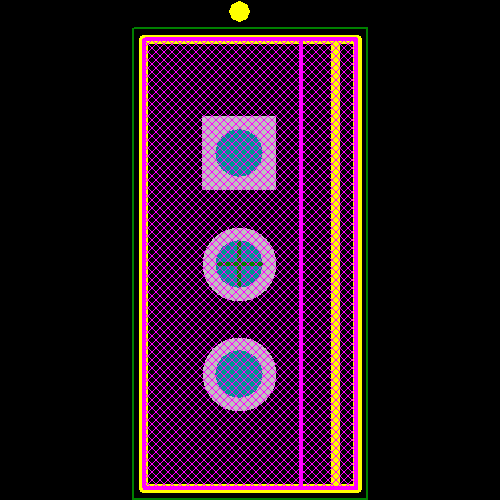

MJE2955TG Footprint - onsemi
