Technical Details
| Case/Package | TO-218-3 |
| China RoHS | Non-Compliant |
| Collector Base Voltage (VCBO) | 160V |
| Collector Emitter Breakdown Voltage | 160V |
| Collector Emitter Saturation Voltage | 3.5V |
| Collector Emitter Voltage (VCEO) | 160V |
| Current Rating | 16A |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 7V |
| Gain Bandwidth Product | 1MHz |
| hFE Min | 8 |
| Lead Free | Contains Lead |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Collector Current | 16A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 125W |
| Min Operating Temperature | -65°C |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Polarity | NPN |
| REACH SVHC | No |
| RoHS | Compliant |
| Transition Frequency | 1MHz |
| Voltage Rating (DC) | 160V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

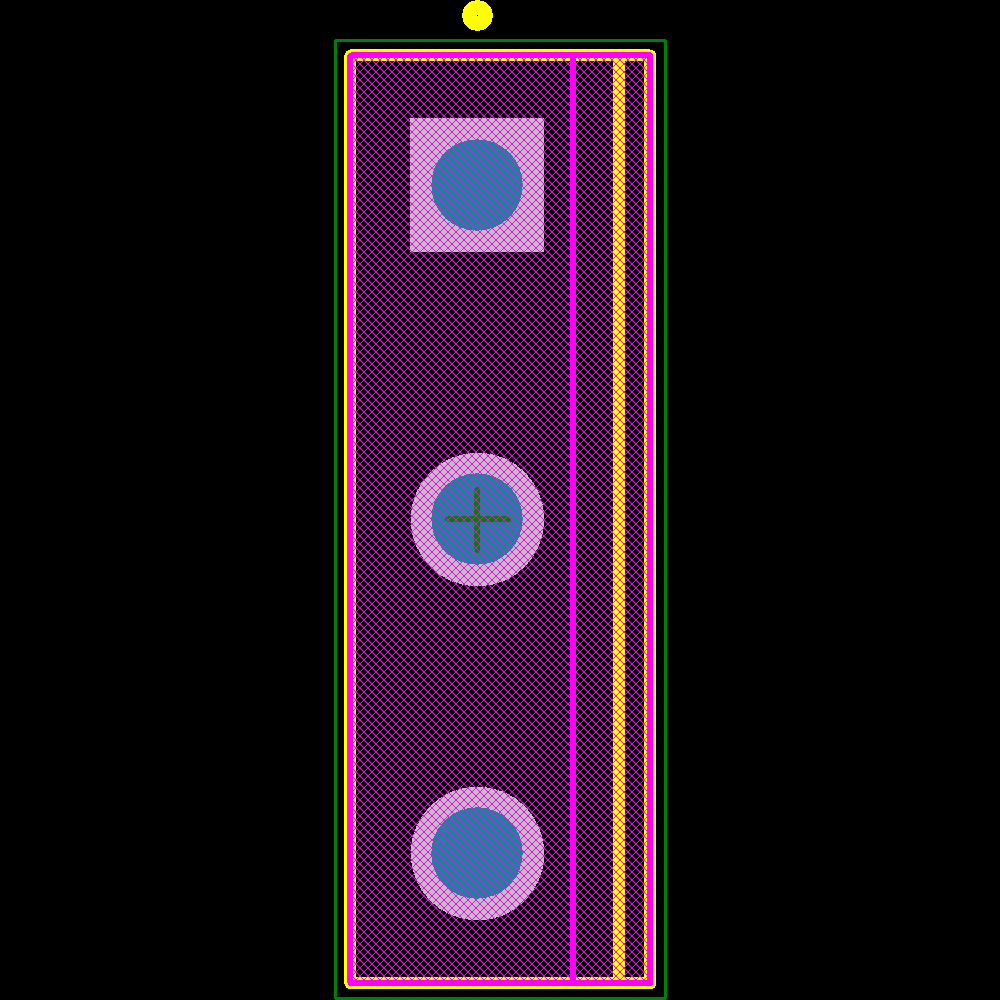

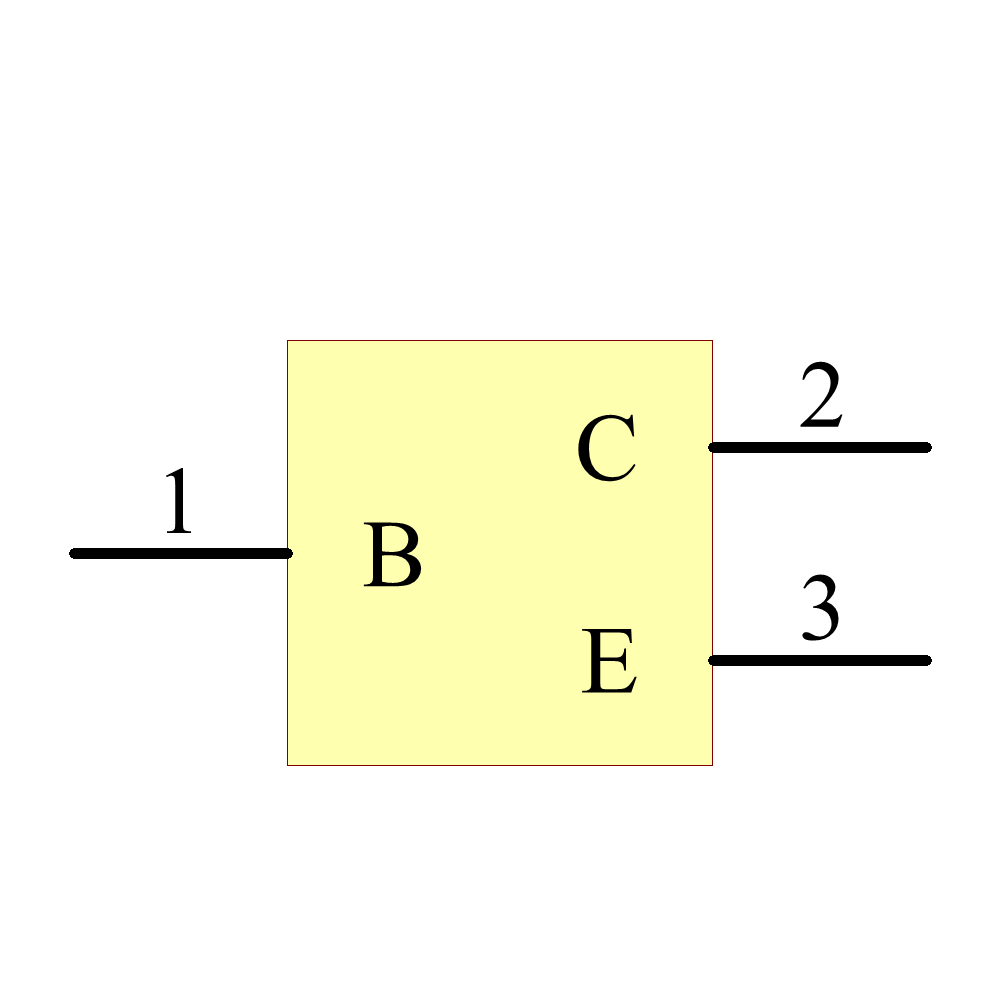

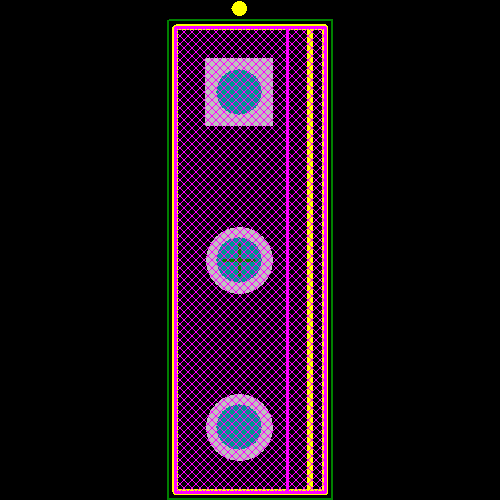

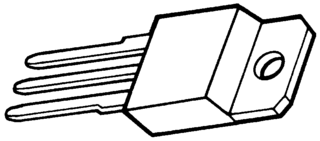

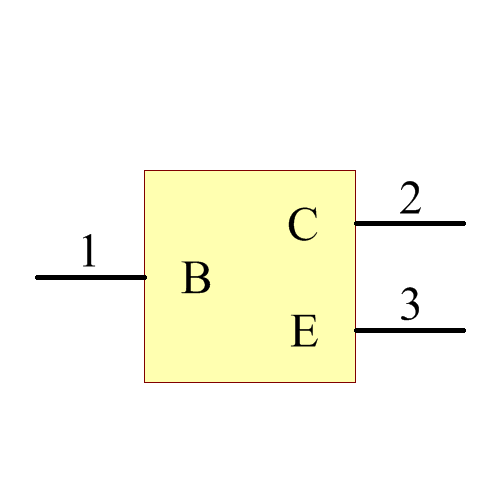

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | EOL | ||
| Texas Instruments | Unknown | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| onsemi | Obsolete | ||
| Central Semiconductor | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| Central Semiconductor | Obsolete | ||
| Central Semiconductor | Obsolete |
