MJH11017G - onsemi

15 A, 150 V PNP Darlington Bipolar Power Transistor

Technical Details

Case/Package	TO-247
China RoHS	Compliant
Collector Base Voltage (VCBO)	150V
Collector Emitter Saturation Voltage	2.5V
Collector Emitter Voltage (VCEO)	150V
Continuous Collector Current	15A
Country of Origin	Mainland China
Current Rating	-15A
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Emitter Base Voltage (VEBO)	5V
hFE Min	100
Introduction Date	1991-06-01
Lead Free	Lead Free
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Collector Current	15A
Max Operating Temperature	150°C
Max Power Dissipation	150W
Min Operating Temperature	-65°C
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Polarity	PNP
Power Dissipation	150W
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8541290080, 8541290080\|8541290080, 8541290080\|8541290080\|8541290080, 8541290080\|8541290080\|8541290080\|8541290080
Transition Frequency	3MHz
Voltage Rating (DC)	-150V

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

onsemi MJH11017G | Future Electronics

Future Electronics

Datasheets

Future Electronics

Rochester Electronics

Lifecycle Status Indicator

Production

Symbol

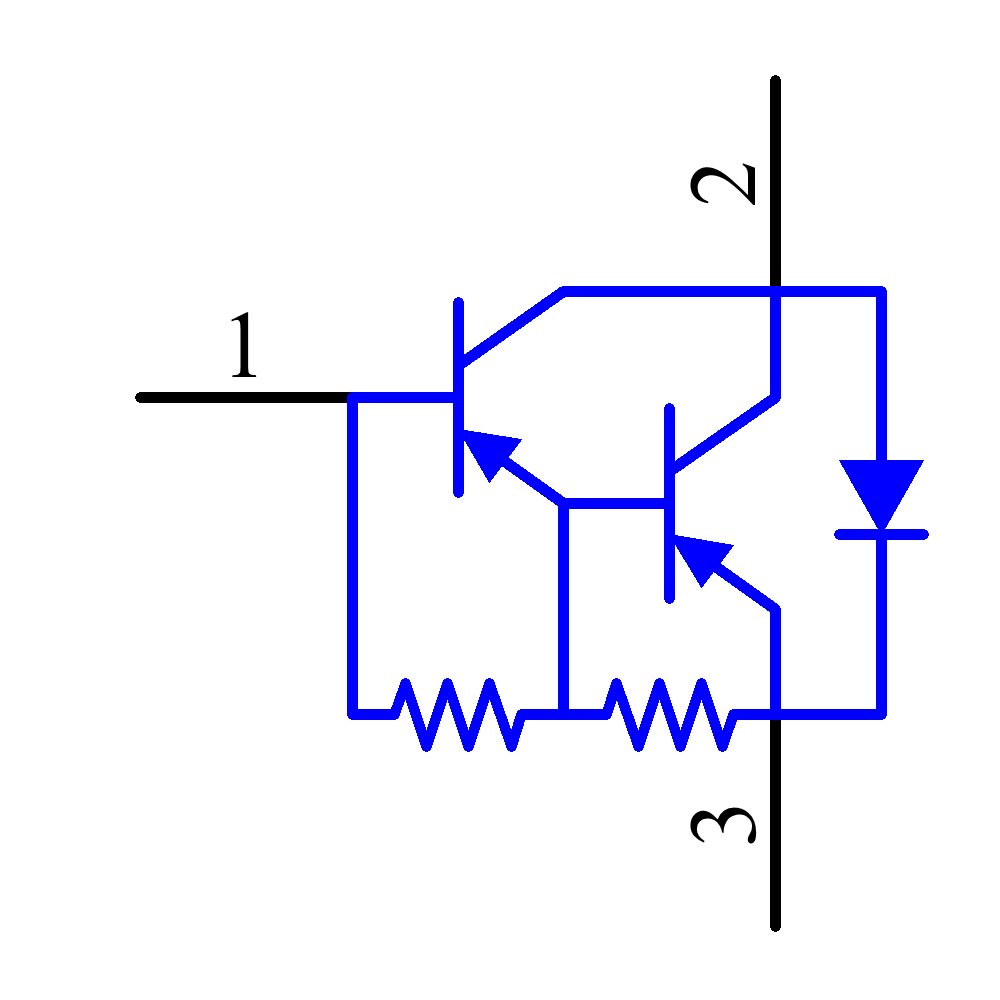

MJH11017G Symbol - onsemi

MJH11017G Symbol - onsemi

MJH11017G Symbol - onsemi

MJH11017G Symbol - onsemi

‹ ›

Footprint

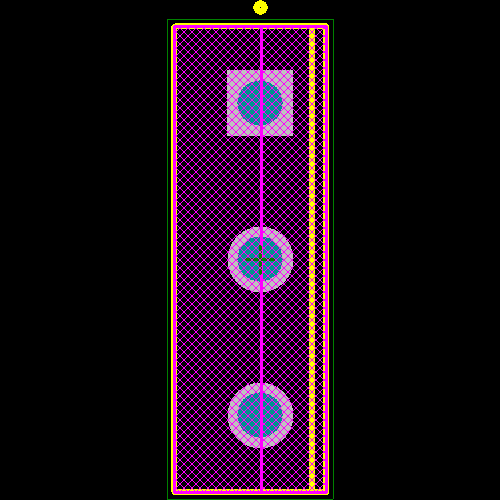

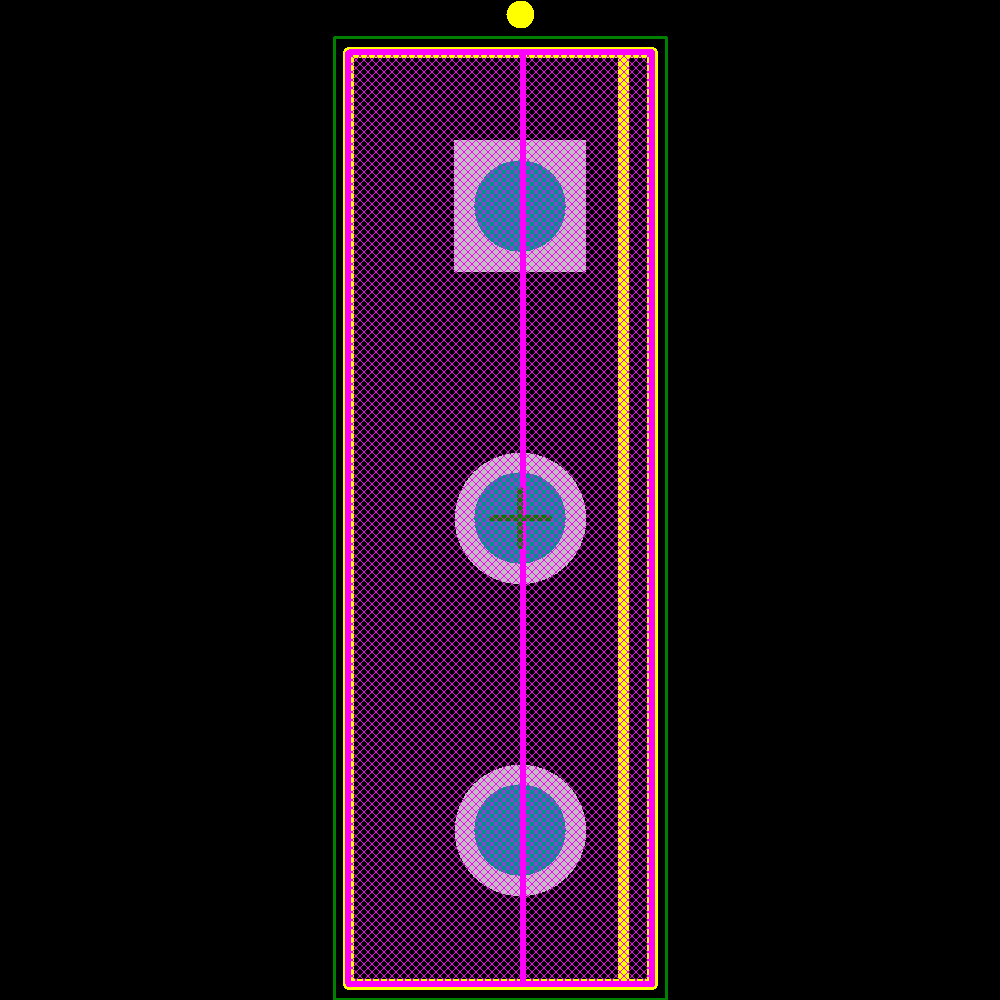

MJH11017G Footprint - onsemi
