Discrete Semiconductors  >  Transistors  >  BJTs

onsemi - MJH11021G

MJH11021G - onsemi

15 A, 250 V PNP Darlington Bipolar Power Transistor

 Datasheets

Technical Details

Case/Package TO-247
China RoHS Compliant
Collector Base Voltage (VCBO) 250V
Collector Emitter Saturation Voltage 2.5V
Collector Emitter Voltage (VCEO) 250V
Continuous Collector Current 15A
Country of Origin Mainland China
Current Rating -15A
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Single
Emitter Base Voltage (VEBO) 5V
Height 12.2mm
hFE Min 100
Introduction Date 1991-06-01
Lead Free Lead Free
Length 15.2mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Collector Current 15A
Max Operating Temperature 150°C
Max Power Dissipation 150W
Min Operating Temperature -65°C
Number of Elements 1
Number of Pins 3
Number of Terminals 3
Polarity PNP
Power Dissipation 150W
Radiation Hardening No
REACH SVHC Yes
RoHS Compliant
Schedule B 8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|85
Transition Frequency 3MHz
Voltage Rating (DC) -250V
Weight 6.500007g
Width 4.9mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

onsemi MJH11021G | Farnell

Farnell

Datasheets

 RS
 RS
 RS

Lifecycle Status Indicator

   Production

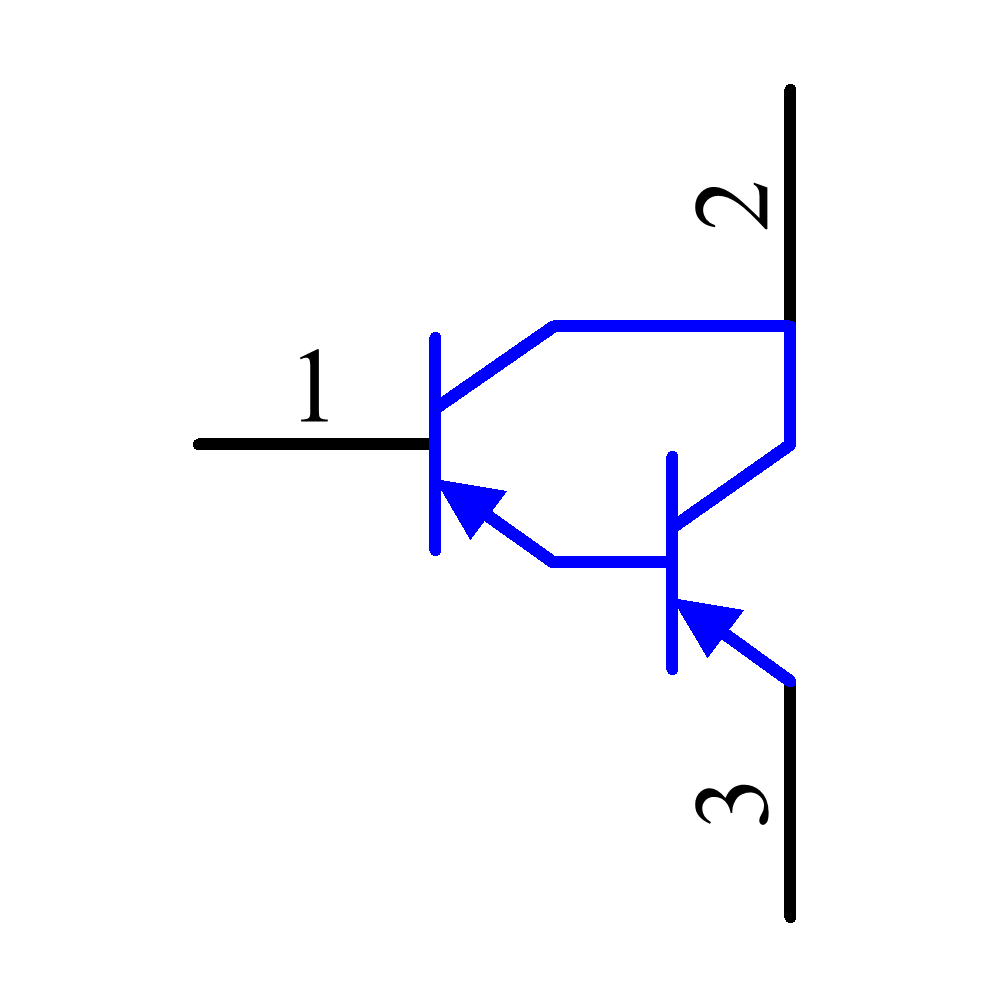

Symbol

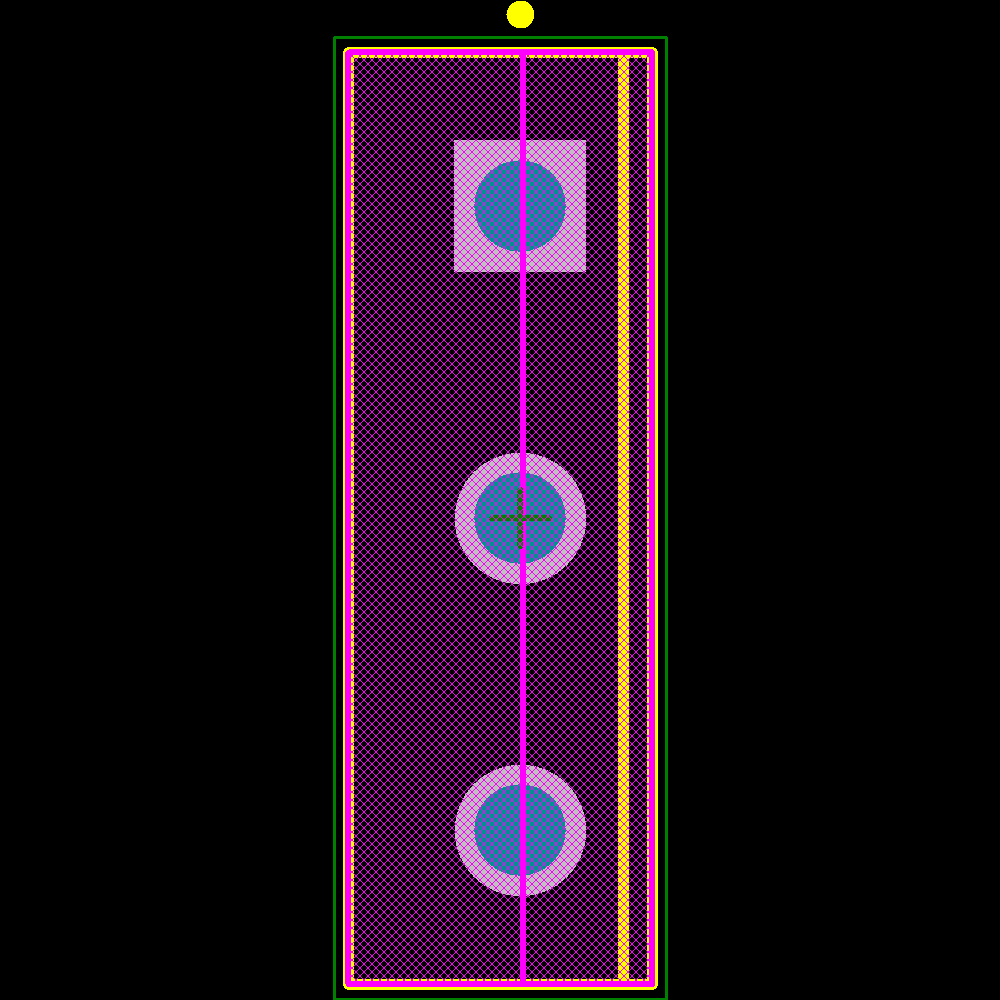

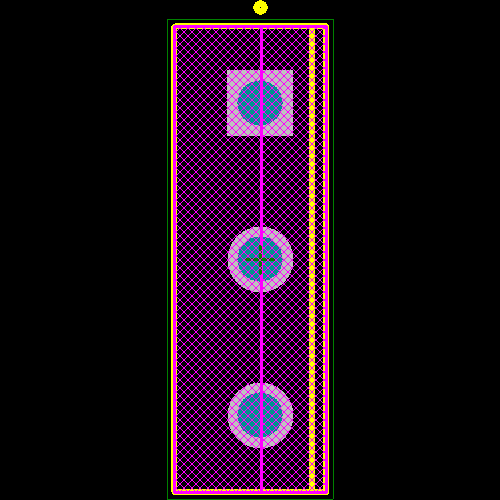

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
onsemi
MJH11021
Obsolete
onsemi
MJH11019G
Production
onsemi
MJH6287G
Production
onsemi
MJH11017
Obsolete
onsemi
MJH11019
Obsolete
onsemi
MJH6287
Obsolete
onsemi
MJH11017G
Production
STMicroelectronics
BDW84C
Obsolete
Central Semiconductor
BDW84A
Obsolete
Central Semiconductor
BDW84B
Obsolete

See more alternatives See less alternatives

Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
RS
7905393P
DE: 42
 $ 4.7399 4.7399 4.7399 4.7399
 Historical Pricing  Historical Stock Levels
Quantity
Location
RS
1216417
DE: 42
 $ 3.1694 3.1694 2.3841 2.3841
 Historical Pricing  Historical Stock Levels
Quantity
Location
RS
7905393
DE: 36
 $ 5.5042 4.7399 4.7399 4.7399 4.7399
 Historical Pricing  Historical Stock Levels
Quantity
Location
Farnell
1611189
DE: 90
 $ 6.9403 3.9324 3.9324 3.501 2.9956 2.9956
 Historical Pricing  Historical Stock Levels
Quantity
Location
Master Electronics
MJH11021G
US: 510
 $ 3.16 3.16 2.25 2.13
 Historical Pricing  Historical Stock Levels
Quantity
Location
Onlinecomponents.com
MJH11021G
US: 510
 $ 3.16 3.16 2.25 2.13
 Historical Pricing  Historical Stock Levels
Quantity
Location
Rochester Electronics
MJH11021G
US: 193
 $ 2.34 2.22 1.99 1.87
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
MJH11021G
US: 510
 $ 3.7176 3.7176 2.6471 2.6471
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
MJH11021G
US: 193
 $ 2.4875 2.3375
 Historical Pricing  Historical Stock Levels
Quantity
Location
Arrow Electronics
MJH11021G
US: 12
 $ 3.9502 2.7663 2.7663 2.7663 2.7663 2.7663
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
MJH11021GOS-ND
DE: 404
 $ 6.0897 6.0897 3.4443 3.4443 2.4343 2.3422
 Historical Pricing  Historical Stock Levels
Quantity
Location
Mouser
863-MJH11021G
US: 478
 $ 5.50 3.19 3.19 3.19 2.54 2.54
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet
MJH11021G
US: 97
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
EBV Elektronik
MJH11021G
EU: 0
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet Silica
MJH11021G
EU: 0
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Future Electronics
7148984
CA: 0
 $ 2.20 2.17 2.09 2.09
 Historical Pricing  Historical Stock Levels
Quantity
Location
element14 APAC
1611189
SG: 90
 $ 6.1466 3.5058 3.5058 2.747 2.6407 2.6407
 Historical Pricing  Historical Stock Levels
Quantity
Location
Newark
MJH11021G
US: 0
 $ 3.85 3.30 3.30
 Historical Pricing  Historical Stock Levels
Quantity
Location

Non-Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Microchip USA
MJH11021G
US: 2536
 $ 15.8098 15.6944
 Historical Pricing  Historical Stock Levels
Quantity
Location
Component Stockers USA
MJH11021G
US: 39731
 $ 2.54 2.54 2.54 2.39 2.03 2.16
 Historical Pricing  Historical Stock Levels
Quantity
Location
Win Source
641090-MJH11021G
CN: 30
 $ 3.3219 3.0105 2.699 2.699
 Historical Pricing  Historical Stock Levels
Quantity
Location
Worldway Electronics
MJH11021G
HK: 59644
 $ 1.1081 1.1081 1.0742 1.0176 1.0176
 Historical Pricing  Historical Stock Levels
Quantity
Location
IC Components Ltd.
MJH11021G
HK: 1985
 $ 5.0953 4.5725 4.5725 3.7462 2.6895 2.5551
 Historical Pricing  Historical Stock Levels
Quantity
Location
Fmall Co., Limited
MJH11021G
HK: 45930
 $ 3.534 3.534 3.534 3.306 3.116 2.85
 Historical Pricing  Historical Stock Levels
Quantity
Location
UnikeyIC
MJH11021G
SG: 14
 $ 3.3554 3.2549 3.1572 3.1572
 Historical Pricing  Historical Stock Levels
Quantity
Location
SHENGYU ELECTRONICS
MJH11021G
CN: 11739
 $ 4.0581 3.9769 3.9769 3.86 3.73 3.57
 Historical Pricing  Historical Stock Levels
Quantity
Location
Lixinc
MJH11021G
CN: 10947
 $ 4.24 4.24 3.6212 3.6212 3.6212 3.6212
 Historical Pricing  Historical Stock Levels
Quantity
Location
ALLICDATA ELECTRONICS
MJH11021G
HK: 1000
 $ 3.02 2.9294 2.9294 2.869 2.8086 2.718
 Historical Pricing  Historical Stock Levels
Quantity
Location
Ansinor
MJH11021G
CN: 410
 $ 5.1277 5.1277 2.8752 2.0083 1.917
 Historical Pricing  Historical Stock Levels
Quantity
Location
Bettlink
MJH11021G
HK: 402
 $ 4.7314 4.1504 4.1504 3.7731 3.3266 3.1383
 Historical Pricing  Historical Stock Levels
Quantity
Location
Fly-Wing Technology
MJH11021G
HK: 32
 $ 15.4841 12.7053 12.7053 12.3082 11.514 11.514
 Historical Pricing  Historical Stock Levels
Quantity
Location
Vigor Components
MJH11021G
SG: 10
 $ 4.24 4.24 4.24 4.24 4.24 4.24
 Historical Pricing  Historical Stock Levels
Quantity
Location
TME
MJH11021G
PL: 181
 $ 5.3131 4.5118 4.5118 4.5118 4.5118 4.5118
 Historical Pricing  Historical Stock Levels
Quantity
Location
Schukat
MJH11021G
DE: 110
 $ 4.52 4.52 3.59 3.12 3.12
 Historical Pricing  Historical Stock Levels
Quantity
Location
Classic Components
MJH11021G
US: 120
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Classic Components
MJH11021G
US: 12
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
ODG (Origin Data Global)
MJH11021G
CN: 15
 $ 13.2847 12.2628 12.2628 12.2628 12.2628
 Historical Pricing  Historical Stock Levels
Quantity
Location
XingHuan International
MJH11021G
CN: 55000
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Digi-ic_SMART PIONEER
MJH11021G
HK: 4500
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Lingto Electronic Ltd.
MJH11021G
CN: 34394
 $ 5.21 4.9495 4.9495 4.689 4.6369 4.5848
 Historical Pricing  Historical Stock Levels
Quantity
Location
Abacus Technologies
MJH11021G
US: 6322
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Sourcengine
MJH11021G
US: 180
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Richardson RFPD
MJH11021G
US: -3
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
JRH Electronics
MJH11021G
US: 510
 $ 5.02 5.02 4.50 4.26
 Historical Pricing  Historical Stock Levels
Quantity
Location

Report an Error      Favorite Favorite
