Discrete Semiconductors > Transistors > BJTs

MJL21194G - onsemi

Bipolar Transistor, NPN, 250 V, 16 A

Technical Details

Case/Package	TO-264
China RoHS	Non-Compliant
Collector Base Voltage (VCBO)	400V
Collector Emitter Breakdown Voltage	250V
Collector Emitter Saturation Voltage	1.4V
Collector Emitter Voltage (VCEO)	250V
Country of Origin	South Korea
Current Rating	16A
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Emitter Base Voltage (VEBO)	5V
Frequency	4MHz
Gain Bandwidth Product	4MHz
Height	29mm
hFE Min	8
Introduction Date	1999-01-01
Lead Free	Lead Free
Length	20.3mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Collector Current	16A
Max Frequency	4MHz
Max Operating Temperature	150°C
Max Power Dissipation	200W
Min Operating Temperature	-65°C
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Polarity	NPN
Power Dissipation	200W
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8541290080
Transition Frequency	4MHz
Voltage Rating (DC)	250V
Weight	4.535924g
Width	5.3mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

onsemi MJL21194G | Master Electronics

Master Electronics

Datasheets

Lifecycle Status Indicator

Production

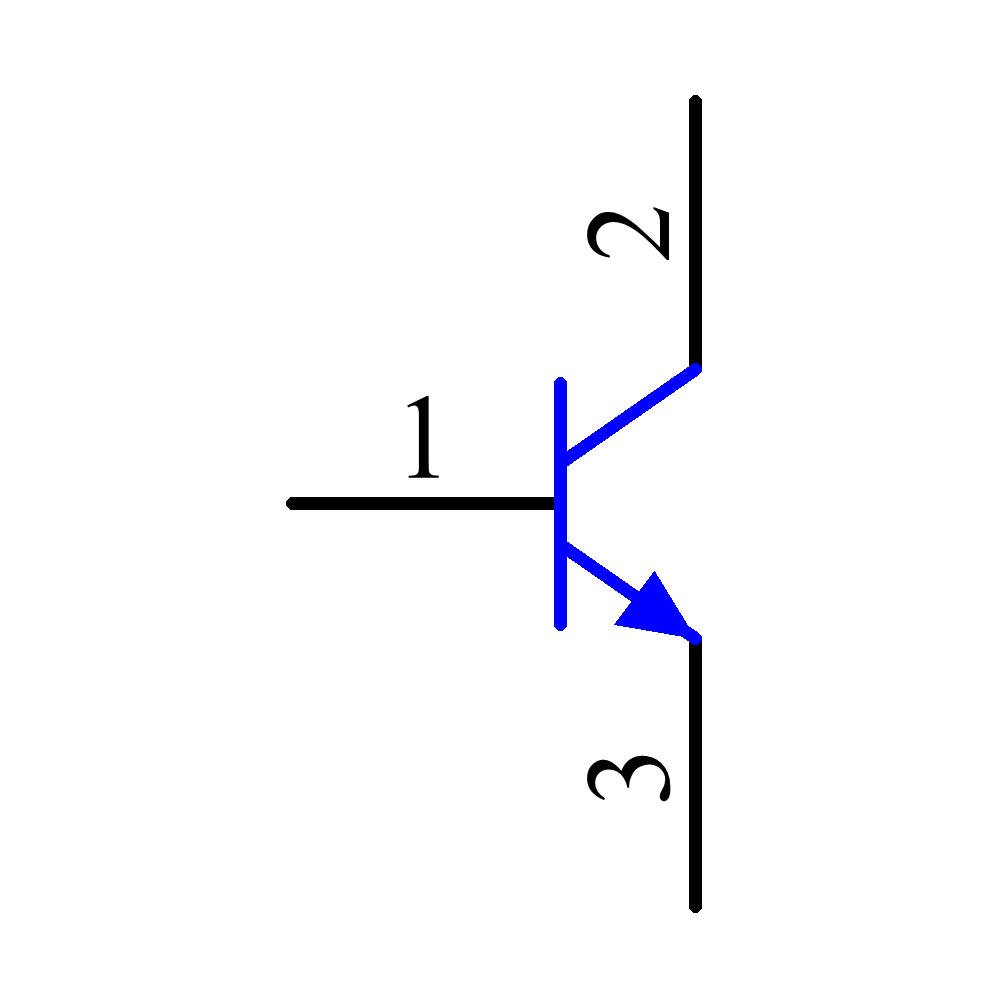

Symbol

MJL21194G Symbol - onsemi

MJL21194G Symbol - onsemi

MJL21194G Symbol - onsemi

MJL21194G Symbol - onsemi

‹ ›

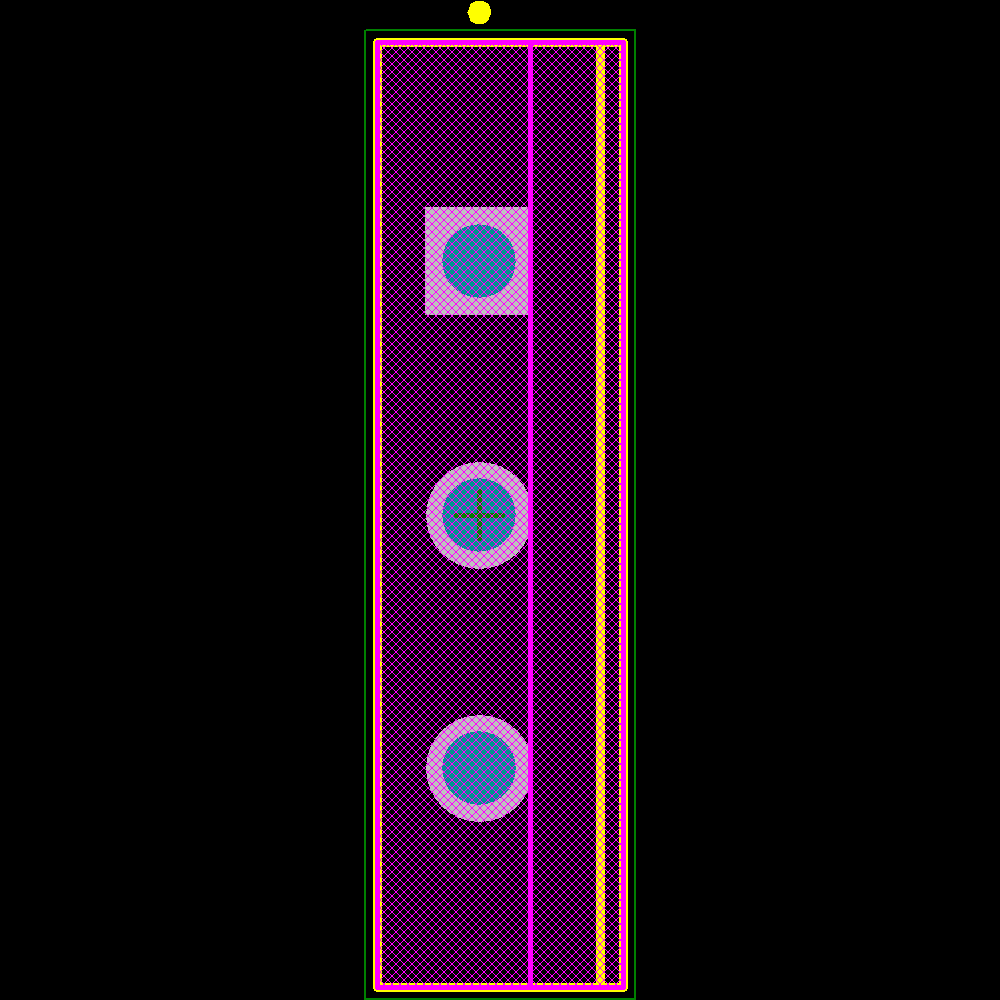

Footprint
