Discrete Semiconductors > Transistors > BJTs

MJW18020G - onsemi

on Semi MJW18020G NPN High Voltage Bipolar Transistor, 30 A, 450 V, 3-PIN TO-247

Technical Details

Case/Package	TO-247
China RoHS	Compliant
Collector Base Voltage (VCBO)	1kV
Collector Emitter Breakdown Voltage	450V
Collector Emitter Saturation Voltage	1.15V
Collector Emitter Voltage (VCEO)	450V
Country of Origin	Mainland China
Current Rating	20A
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Emitter Base Voltage (VEBO)	9V
Frequency	13MHz
Gain Bandwidth Product	13MHz
Height	21.08mm
hFE Min	5.5
Introduction Date	1991-06-01
Lead Free	Lead Free
Length	16.26mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Breakdown Voltage	150V
Max Collector Current	30A
Max Frequency	1MHz
Max Operating Temperature	150°C
Max Power Dissipation	180W
Min Operating Temperature	-65°C
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Polarity	NPN
Power Dissipation	250W
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8541290080, 8541290080\|8541290080\|8541290080\|8541290080\|8541290080
Transition Frequency	13MHz
Voltage Rating (DC)	450V
Weight	4.535924g
Width	5.3mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

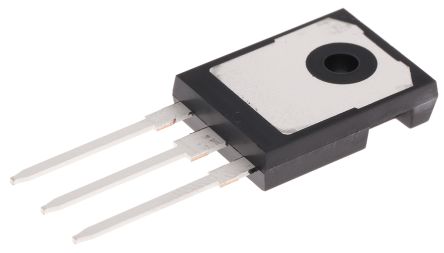

Images

onsemi MJW18020G | RS

RS

Datasheets

Lifecycle Status Indicator

Production

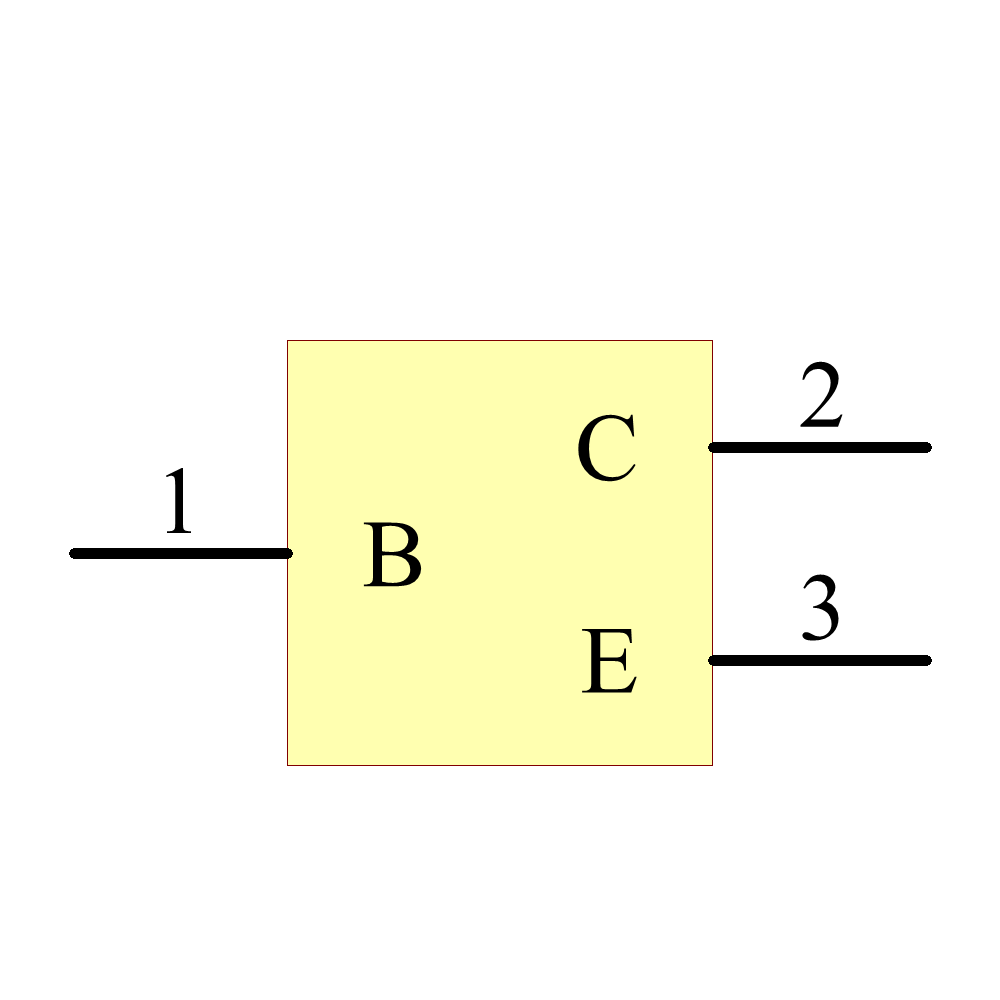

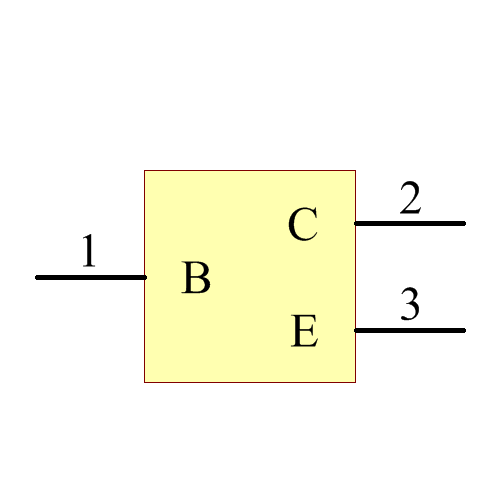

Symbol

MJW18020G Symbol - onsemi

MJW18020G Symbol - onsemi

MJW18020G Symbol - onsemi

MJW18020G Symbol - onsemi

‹ ›

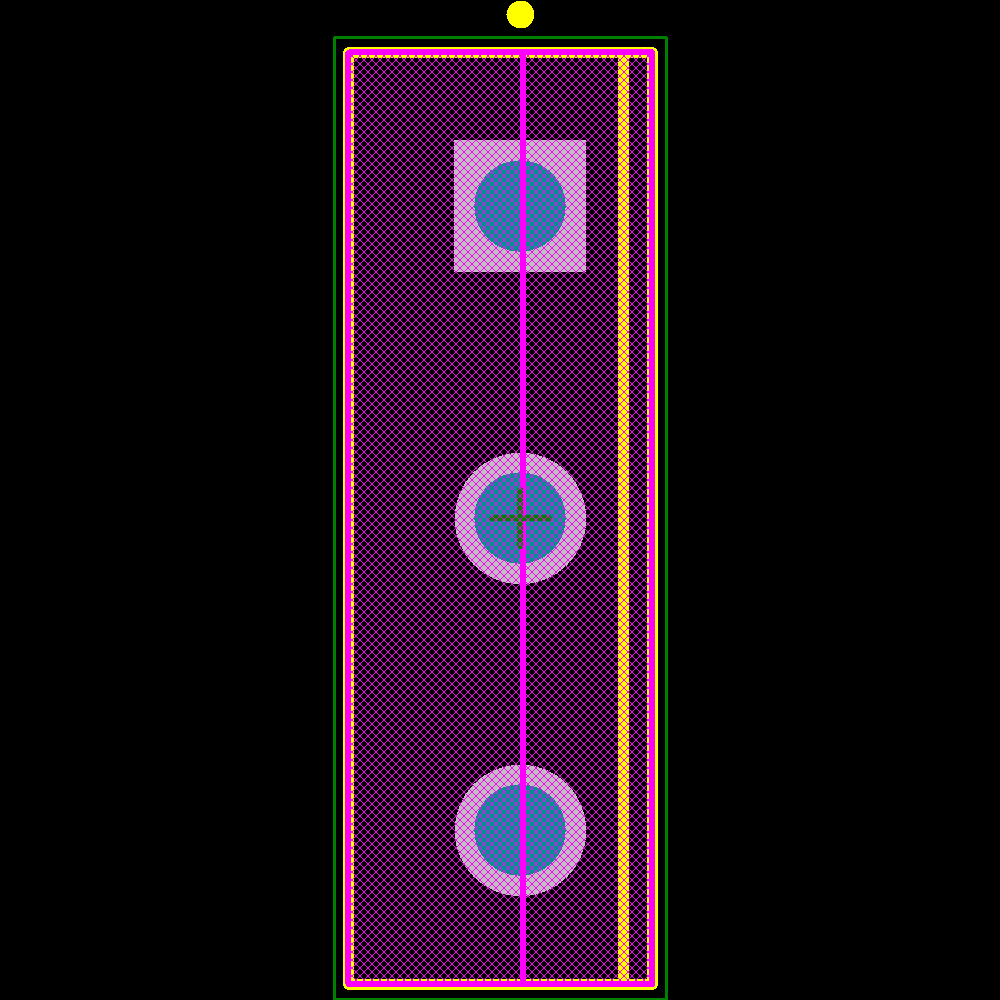

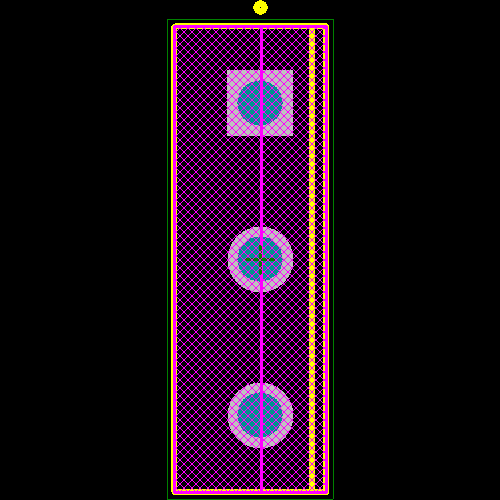

Footprint

MJW18020G Footprint - onsemi

MJW18020G Footprint - onsemi

MJW18020G Footprint - onsemi

MJW18020G Footprint - onsemi

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
onsemi	MJW18020	Obsolete
STMicroelectronics	BUF420A	Obsolete
STMicroelectronics	BUF420	Obsolete
STMicroelectronics	BUF420AI	Obsolete
STMicroelectronics	BUV48C	Obsolete
Toshiba	2SC4686	Obsolete
Sanyo	2SC5238	Obsolete
Fuji	2SC3320	Obsolete
Toshiba	2SC5048	Obsolete
Toshiba	2SC3306	Obsolete

See more alternatives See less alternatives

Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

RS

DE: 26

$

9.4181

8.1238

8.1238

8.1238

8.1238

8.1238

RS

DE: 10

$

8.1238

8.1238

8.1238

8.1238

8.1238

RS

DE: 10

$

5.4771

5.4771

4.0039

4.0039

Avnet

US: 720

$

3.8514

3.7748

3.5625

3.5625

DigiKey

DE: 21

$

8.7032

8.7032

5.06

5.06

3.7606

3.7606

Flip Electronics

US: 9

$

Avnet Silica

EU: 120

$

Farnell

DE: 0

$

9.677

5.461

5.2392

5.0173

4.7954

4.7954

EBV Elektronik

EU: 0

$

Onlinecomponents.com

US: 0

$

5.247

4.72

3.48

3.44

Master Electronics

US: 0

$

5.247

4.72

3.48

3.44

Future Electronics

CA: 0

$

3.58

3.53

3.48

3.36

3.36

Future Electronics

CA: 0

$

3.52

3.46

3.36

3.36

Arrow Electronics

US: 0

$

3.969

3.93

3.813

3.663

Mouser

US: 36

$

8.24

4.97

4.97

4.97

4.97

4.97

Newark

US: 0

$

9.79

6.21

6.07

5.93

5.64

5.64

element14 APAC

SG: 0

$

9.0377

5.107

5.107

4.4847

4.3102

4.3102

Non-Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

Component Stockers USA

US: 28002

$

5.67

5.56

5.56

5.06

5.22

5.22

Win Source

493504-MJW18020G

CN: 2181

$

6.5003

5.0001

4.3335

4.3335

4.3335

Worldway Electronics

HK: 55873

$

1.7013

1.7013

1.6492

1.5624

1.5624

IC Components Ltd.

HK: 2667

$

10.9152

10.9152

10.9152

10.9152

10.9152

10.9152

YIC International

HK: 2567

$

10.8609

10.8609

10.8609

10.8609

10.8609

10.8609

Fmall Co., Limited

HK: 48260

$

5.0964

5.0964

5.0964

4.7676

4.4936

4.11

UnikeyIC

SG: 36

$

5.7088

5.4805

5.371

5.371

Anlinkda

HK: 9560

$

8.165

7.313

7.313

6.273

6.139

5.881

SHENGYU ELECTRONICS

CN: 9480

$

4.346

4.2591

4.2591

4.13

4.00

3.82

RC Electronics

CN: 8577

$

5.93

5.44

5.44

4.94

4.70

4.55

ZTZ Technology Limited

CN: 2390

$

5.8114

5.3312

5.3312

4.8412

4.606

4.459

Chipsmall Limited

CN: 2106

$

10.80

9.72

9.72

6.21

5.40

5.40

Ansinor

CN: 154

$

7.0128

7.0128

7.0128

4.0986

3.0406

3.0406

Bettlink

HK: 150

$

6.7568

5.927

5.927

5.3882

4.7507

4.4818

Vigor Components

SG: 10

$

7.19

7.19

7.19

7.19

7.19

7.19

TME

PL: 116

$

8.2594

6.1144

6.1144

6.1144

6.1144

6.1144

ODG (Origin Data Global)

CN: 2056

$

5.4745

4.3796

4.3796

4.3796

4.3796

Classic Components

US: 240

$

Classic Components

US: 150

$

XingHuan International

CN: 55000

$

Digi-ic_SMART PIONEER

HK: 7744

$

Lingto Electronic Ltd.

CN: 11921

$

7.19

6.9024

6.9024

6.471

6.3991

6.3272

Abacus Technologies

US: 269

$

Sourcengine

US: 720

$

NAC Semi

US: 720

$
