MMBF4119 - onsemi
Small Signal Field-Effect Transistor, 1-Element, N-Channel, Silicon, Junction FET
Technical Details
| Breakdown Voltage | -40V |
| Case/Package | SOT-23-3 |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Continuous Drain Current (ID) | 600µA |
| Country of Origin | Philippines |
| Current Rating | 50mA |
| Drain to Source Voltage (Vdss) | 40V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Gate to Source Voltage (Vgs) | -40V |
| Height | 1.2mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.21.00.95 |
| Input Capacitance | 3pF |
| Introduction Date | 1994-01-01 |
| Lead Free | Lead Free |
| Length | 2.92mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 225mW |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Tape & Reel (TR) |
| Power Dissipation | 225mW |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Voltage Rating (DC) | 40V |
| Weight | 30mg |
| Width | 1.3mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

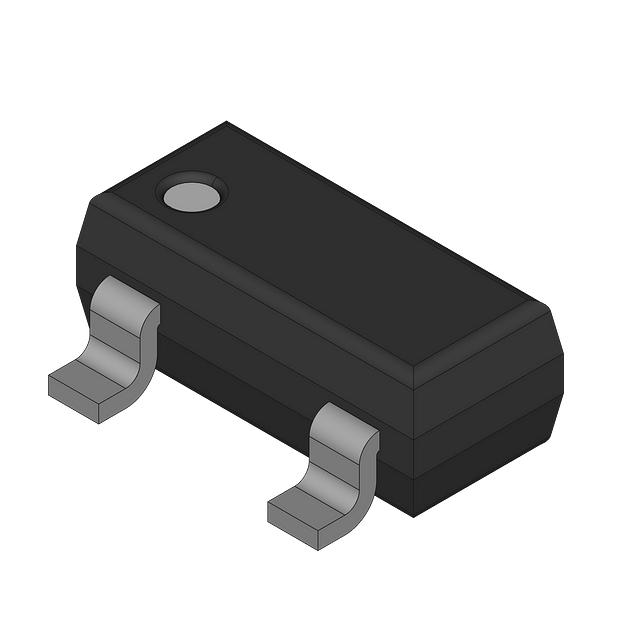

Images
Rochester Electronics
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 260557
|
$ | 0.1321 | 0.1096 | 0.0978 | |||||
| Verical |
US: 151500
|
$ | 0.1223 | |||||||
| Verical |
US: 81000
|
$ | 0.1223 | |||||||
| Verical |
US: 28057
|
$ | 0.1223 | |||||||
