Discrete Semiconductors > Transistors > JFETs

MMBF4392LT1G - onsemi

N Channel 30 V 50 mA Surface Mount JFET Switching Transistor - SOT-23

Technical Details

Breakdown Voltage	-30V
Case/Package	SOT-23-3
China RoHS	Compliant
Country of Origin	Mainland China
Current Rating	50mA
Drain to Source Resistance	60Ω
Drain to Source Voltage (Vdss)	30V
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Gate to Source Voltage (Vgs)	30V
Halogen Free	Halogen Free
Height	1.016mm
Input Capacitance	14pF
Introduction Date	1994-05-01
Lead Free	Lead Free
Length	3.0226mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Operating Temperature	150°C
Max Power Dissipation	225mW
Min Breakdown Voltage	30V
Min Operating Temperature	-55°C
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Packaging	Tape and Reel
Power Dissipation	225mW
Radiation Hardening	No
REACH SVHC	Yes
Resistance	60Ω
RoHS	Compliant
Schedule B	8541210080, 8541210080\|8541210080, 8541210080\|8541210080\|8541210080, 8541210080\|8541210080\|8541210080\|8541210080
Voltage Rating (DC)	30V
Weight	1.437803g
Width	1.397mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

onsemi MMBF4392LT1G | Future Electronics

Future Electronics

Datasheets

Future Electronics

Future Electronics

Future Electronics

Lifecycle Status Indicator

Production

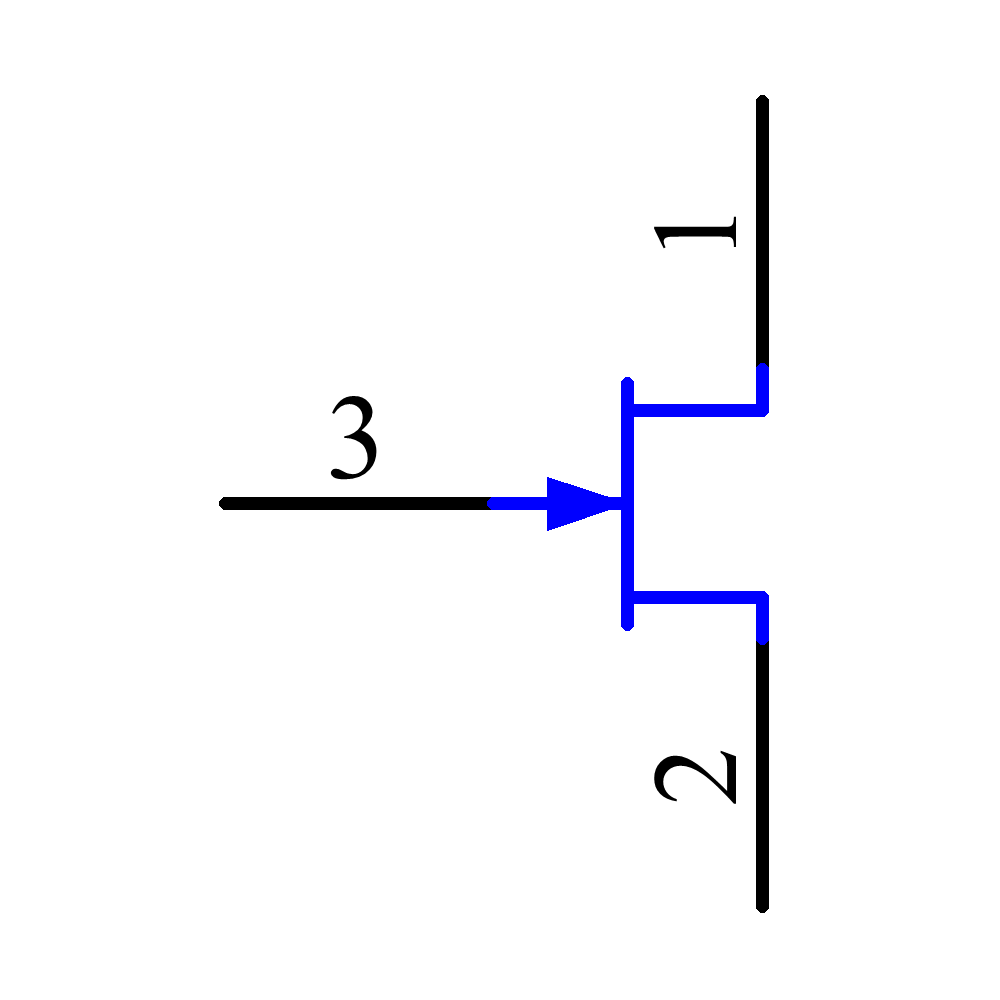

Symbol

MMBF4392LT1G Symbol - onsemi

MMBF4392LT1G Symbol - onsemi

MMBF4392LT1G Symbol - onsemi

MMBF4392LT1G Symbol - onsemi

‹ ›

Footprint

MMBF4392LT1G Footprint - onsemi

MMBF4392LT1G Footprint - onsemi

MMBF4392LT1G Footprint - onsemi

MMBF4392LT1G Footprint - onsemi

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
onsemi	MMBF4392LT3	Obsolete
onsemi	MMBF4392LT1	Obsolete
onsemi	MMBF4392	Obsolete
NXP Semiconductors	PMBF4393	Obsolete
InterFET	SMP4117	Unknown
Central Semiconductor	CMPF5486 TR	Production
onsemi	SMMBFJ310LT1G	Production
NXP Semiconductors	BF861B,235	Obsolete
Central Semiconductor	CMPF4416A TR	Unknown
onsemi	MMBFJ309LT1G	Production

See more alternatives See less alternatives
