Discrete Semiconductors  >  Transistors  >  JFETs

onsemi - MMBF4393LT1G

MMBF4393LT1G - onsemi

MMBF4393LT1G Series N Channel 30 V 50 mA JFET Switching Transistor - SOT-23

 Datasheets

Technical Details

Breakdown Voltage -30V
Case/Package SOT-23-3
China RoHS Compliant
Contact Plating Tin
Country of Origin Mainland China
Current Rating 50mA
Drain to Source Breakdown Voltage 30V
Drain to Source Resistance 100Ω
Drain to Source Voltage (Vdss) 30V
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Single
Gate to Source Voltage (Vgs) 30V
Halogen Free Halogen Free
Height 1.016mm
Input Capacitance 14pF
Introduction Date 1994-05-01
Lead Free Lead Free
Length 3.0226mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Operating Temperature 150°C
Max Power Dissipation 225mW
Min Breakdown Voltage 30V
Min Operating Temperature -55°C
Number of Elements 1
Number of Pins 3
Number of Terminals 3
Packaging Tape and Reel
Power Dissipation 225mW
Radiation Hardening No
REACH SVHC Yes
Resistance 100Ω
RoHS Compliant
Schedule B 8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080
Voltage Rating (DC) 30V
Weight 1.437803g
Width 1.397mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

onsemi MMBF4393LT1G | Farnell

Farnell

Datasheets

 RS
 RS
 RS

Lifecycle Status Indicator

   Production

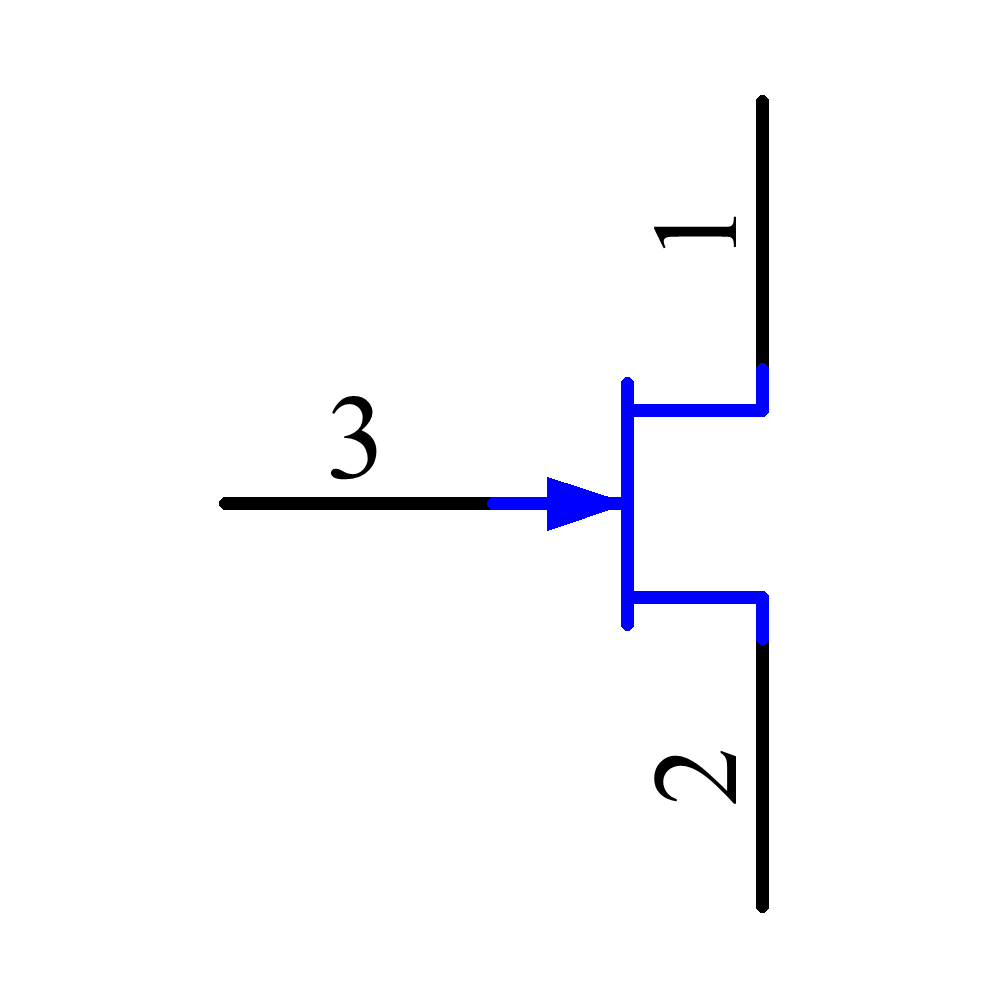

Symbol
Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
onsemi
MMBF4393LT1
Obsolete
onsemi
MMBF4393LT3G
Production
onsemi
MMBF4393
Obsolete
NXP Semiconductors
PMBF4393
Obsolete
InterFET
SMP4117
Unknown
Central Semiconductor
CMPF5486 TR
Production
onsemi
SMMBFJ310LT1G
Production
NXP Semiconductors
BF861B,235
Obsolete
Central Semiconductor
CMPF4416A TR
Unknown
onsemi
MMBFJ309LT1G
Production

See more alternatives See less alternatives
