Technical Details
| Breakdown Voltage | 30V |
| Case/Package | SOT-23-3 |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Continuous Drain Current (ID) | 20mA |
| Country of Origin | Mainland China |
| Current Rating | -20mA |
| Drain to Source Resistance | 300Ω |
| Drain to Source Voltage (Vdss) | 25V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Gate to Source Voltage (Vgs) | 25V |
| Halogen Free | Halogen Free |
| Height | 1.11mm |
| Input Capacitance | 11pF |
| Introduction Date | 1994-05-01 |
| Lead Free | Lead Free |
| Length | 3.04mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 225mW |
| Min Operating Temperature | -55°C |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Tape and Reel |
| Power Dissipation | 225mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080 |
| Voltage Rating (DC) | -25V |
| Weight | 1.437803g |
| Width | 1.4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

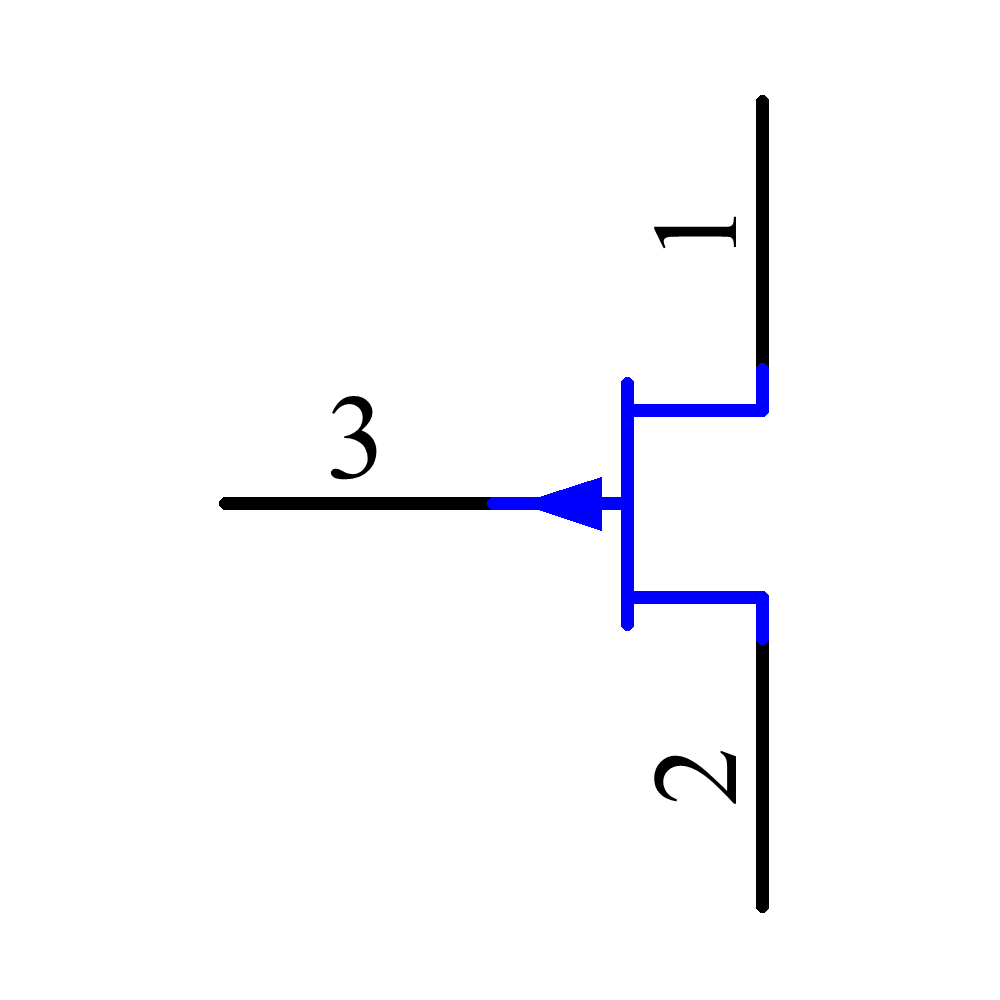

Images
