Circuit Protection  >  TVS Diodes

onsemi - MMBZ12VALT1G

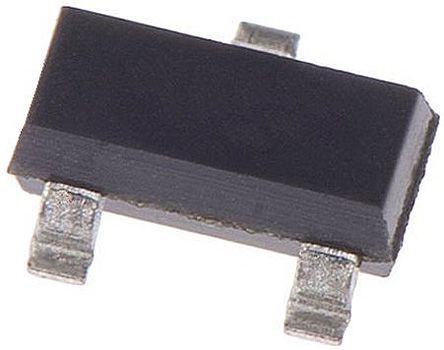

MMBZ12VALT1G - onsemi

ESD Suppressor TVS Uni-Dir/Bi-Dir 8.5V Automotive 3-Pin SOT-23 T/R

 Datasheets

Technical Details

Breakdown Voltage 12V
Case/Package SOT-23
China RoHS Compliant
Clamping Voltage 17V
Composition Zener
Contact Plating Tin
Country of Origin Mainland China
Depth 1.3mm
Direction Unidirectional
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Common Anode
ESD Protection Yes
Forward Voltage 900mV
Height 1.01mm
Harmonized Tariff Schedule (HTS) Code 8541.10.00.50
Introduction Date 1999-12-01
Lead Free Lead Free
Leakage Current 200nA
Length 2.9mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Breakdown Voltage 12.6V
Max Operating Temperature 150°C
Max Output Current 2.35A
Max Power Dissipation 225mW
Max Reverse Leakage Current 200nA
Max Surge Current 2.35A
Min Breakdown Voltage 11.4V
Min Operating Temperature -55°C
Number of Bidirectional Channels 1
Number of Channels 2
Number of Elements 2
Number of Pins 3
Number of Terminals 3
Number of Unidirectional Channels 2
Operating Supply Voltage 8.5V
Packaging Tape and Reel
Peak Pulse Current 2.35A
Peak Pulse Power 40W
Peak Reverse Current 200nA
Polarity Unidirectional
Power Dissipation 40W
Power Line Protection No
Power Rating 40W
Radiation Hardening No
REACH SVHC Yes
Reverse Breakdown Voltage 11.4V
Reverse Standoff Voltage 8.5V
RoHS Compliant
Schedule B 8536300000, 8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|85
Termination SMD/SMT
Test Current 1mA
Voltage Rating (DC) 12V
Width 1.4mm
Working Voltage 8.5V

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

onsemi MMBZ12VALT1G | Farnell

Farnell

Datasheets

 Farnell
 Farnell
 Rochester Electronics

Lifecycle Status Indicator

   Production

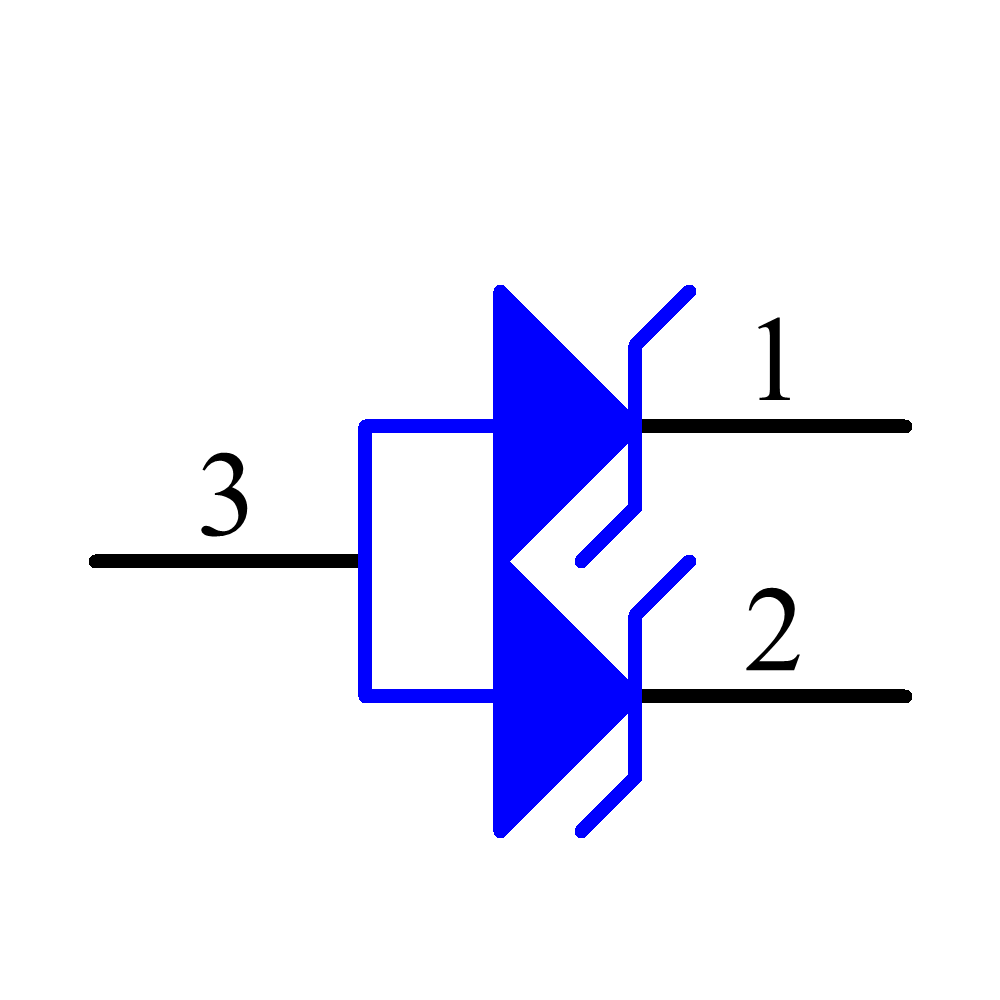

Symbol

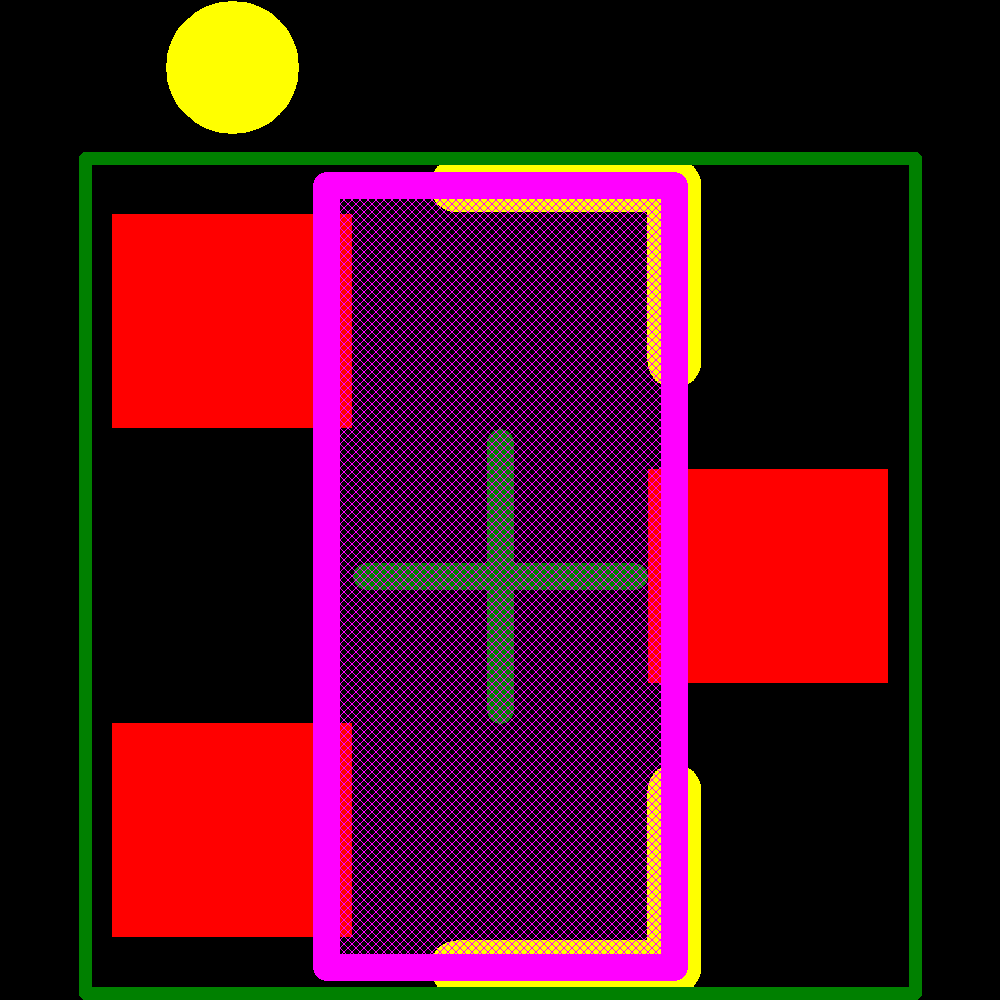

Footprint
