Circuit Protection  >  TVS Diodes

onsemi - MMBZ20VALT1G

MMBZ20VALT1G - onsemi

Bi-Directional 40 W 28 V Surface Mount Transient Voltage Suppressor - SOT-23-3

 Datasheets

Technical Details

Breakdown Voltage 20V
Case/Package SOT-23
China RoHS Compliant
Clamping Voltage 28V
Composition Zener
Contact Plating Tin
Country of Origin Mainland China
Current Rating 1A
Depth 1.3mm
Direction Unidirectional
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Common Anode
ESD Protection Yes
Forward Voltage 900mV
Height 1.01mm
Harmonized Tariff Schedule (HTS) Code 8541.10.00.50
Introduction Date 1996-04-01
Lead Free Lead Free
Leakage Current 50nA
Length 2.9mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Breakdown Voltage 21V
Max Operating Temperature 150°C
Max Power Dissipation 225mW
Max Reverse Leakage Current 50µA
Max Surge Current 1.4A
Min Breakdown Voltage 19V
Min Operating Temperature -55°C
Number of Channels 2
Number of Elements 2
Number of Pins 3
Number of Terminals 3
Number of Unidirectional Channels 2
Operating Supply Voltage 17V
Packaging Tape and Reel
Peak Pulse Current 1.4A
Peak Pulse Power 40W
Peak Reverse Current 50nA
Polarity Unidirectional
Power Line Protection No
Power Rating 40W
Radiation Hardening No
REACH SVHC Yes
Reverse Breakdown Voltage 19V
Reverse Standoff Voltage 17V
RoHS Compliant
Schedule B 8536300000, 8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|85
Termination SMD/SMT
Test Current 1mA
Voltage Rating (DC) 20V
Width 1.4mm
Working Voltage 17V

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

onsemi MMBZ20VALT1G | Future Electronics

Future Electronics

Datasheets

 Future Electronics
 Future Electronics
 Future Electronics

Lifecycle Status Indicator

   Production

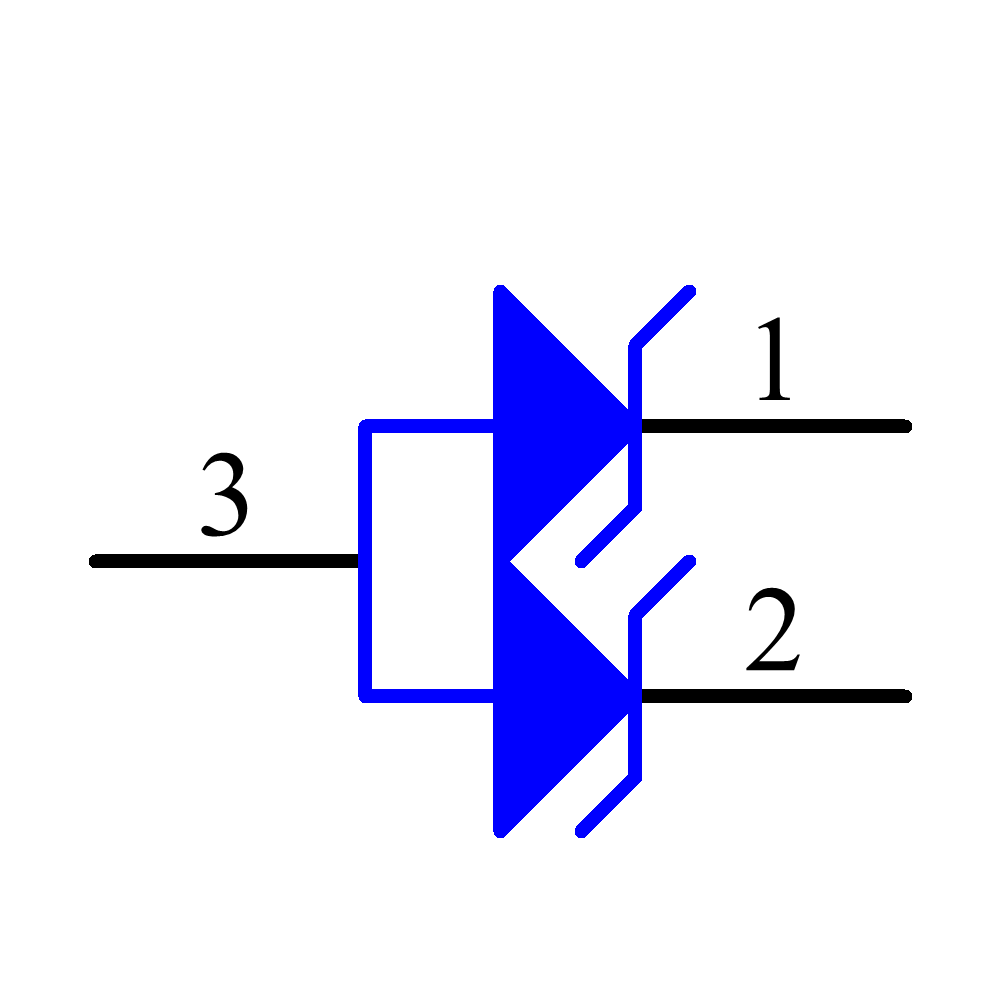

Symbol

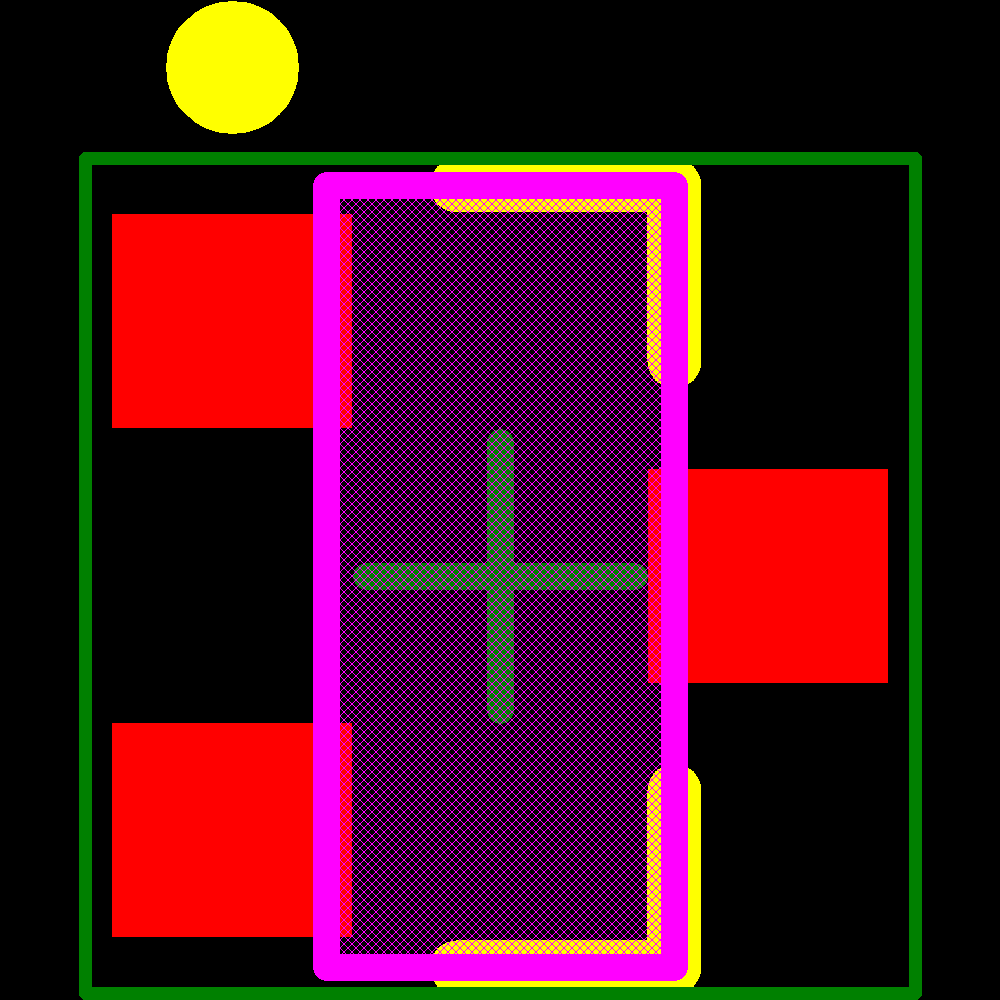

Footprint
