onsemi - MMBZ27VCLT1G

MMBZ27VCLT1G - onsemi

Uni-Directional 40 W 38 V Surface Mount Transient Voltage Suppressor -SOT-23-3

 Datasheets

Technical Details

Breakdown Voltage 27V
Case/Package SOT-23
China RoHS Compliant
Clamping Voltage 38V
Composition Zener
Contact Plating Tin
Country of Origin Mainland China
Depth 1.3mm
Direction Bidirectional
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Common Cathode
ESD Protection Yes
Height 940µm
Harmonized Tariff Schedule (HTS) Code 8541.10.00.50
Introduction Date 2000-01-01
Lead Free Lead Free
Leakage Current 50nA
Length 2.9mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Breakdown Voltage 28.35V
Max Operating Temperature 150°C
Max Power Dissipation 225mW
Max Reverse Leakage Current 50nA
Max Surge Current 1A
Min Breakdown Voltage 25.65V
Min Operating Temperature -55°C
Number of Channels 2
Number of Elements 2
Number of Pins 3
Number of Terminals 3
Number of Unidirectional Channels 2
Operating Supply Voltage 22V
Packaging Tape and Reel
Peak Pulse Current 1A
Peak Pulse Power 40W
Peak Reverse Current 50nA
Polarity Unidirectional
Power Dissipation 40W
Power Line Protection No
Power Rating 40W
Radiation Hardening No
REACH SVHC Yes
Reverse Breakdown Voltage 25.65V
Reverse Standoff Voltage 22V
RoHS Compliant
Schedule B 8536300000, 8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|85
Termination SMD/SMT
Test Current 1mA
Voltage Rating (DC) 27V
Width 1.3mm
Working Voltage 22V

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

onsemi MMBZ27VCLT1G | Future Electronics

Future Electronics

Datasheets

 Future Electronics
 Future Electronics
 Future Electronics

Lifecycle Status Indicator

   Production

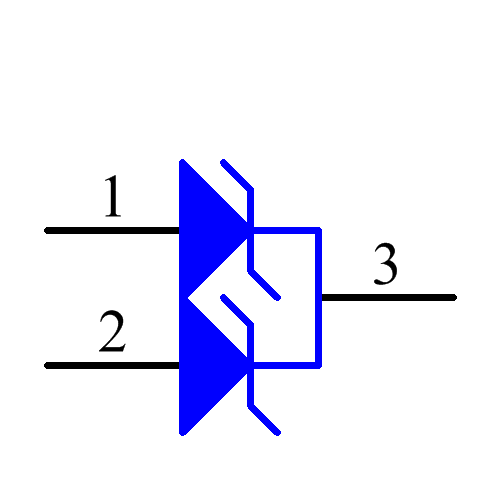

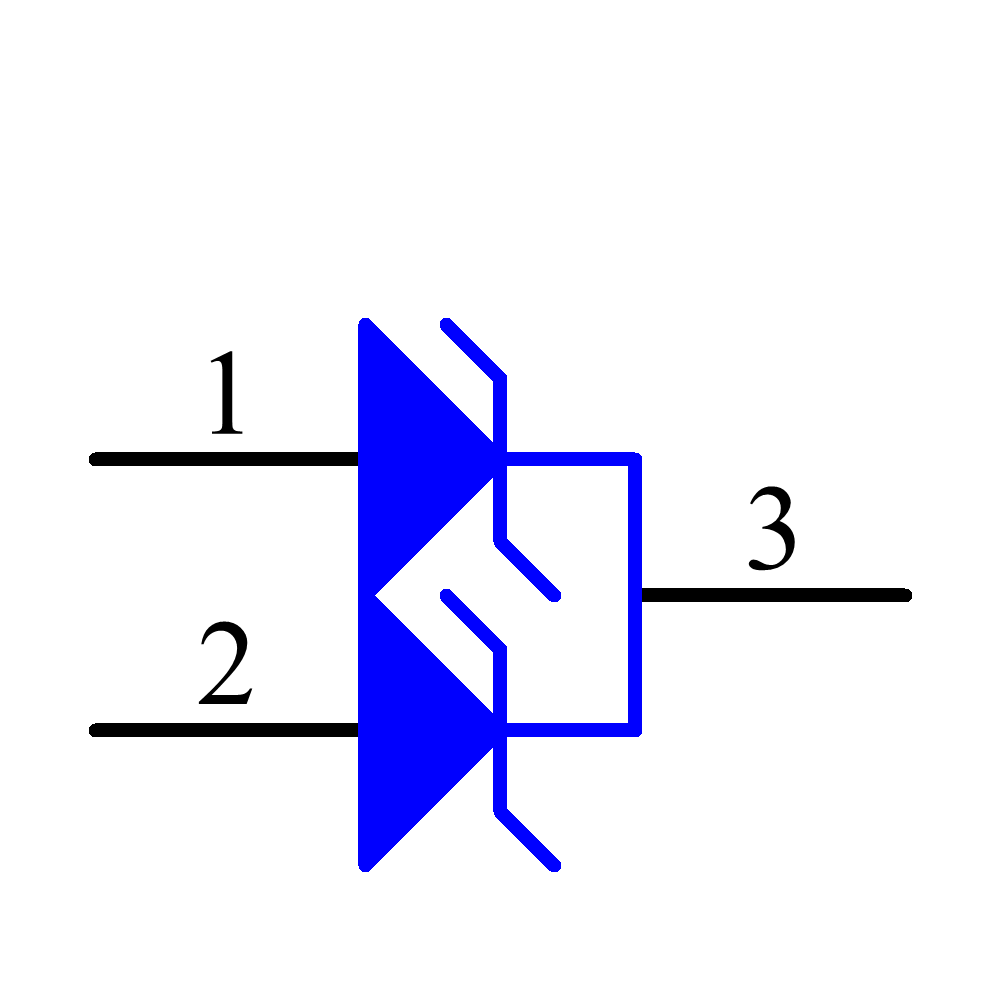

Symbol

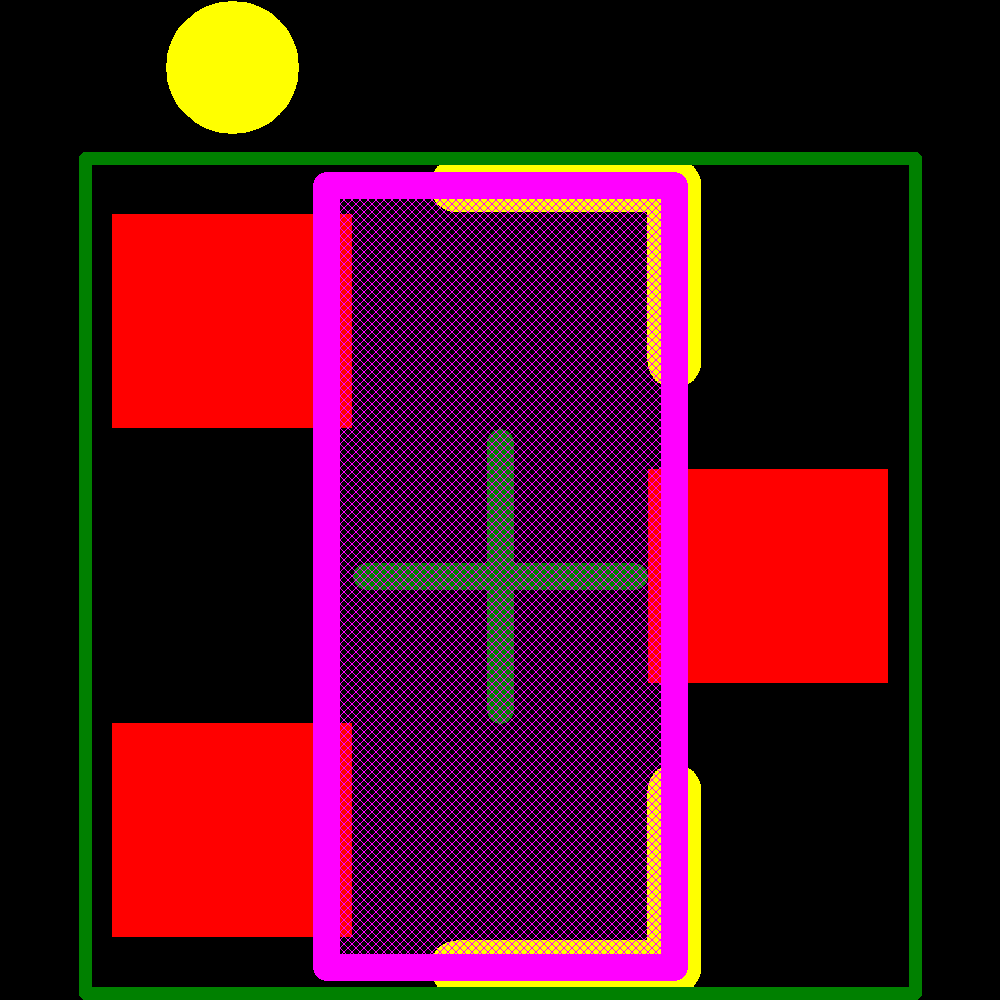

Footprint
