MMQA24VT1 - onsemi
Trans Voltage Suppressor Diode, 150W, 18V V(RWM), Unidirectional, 4 Element, Silicon
Technical Details
| Breakdown Voltage | 24V |
| Case/Package | SC |
| China RoHS | Non-Compliant |
| Clamping Voltage | 34.6V |
| Composition | Zener |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Forward Voltage | 900mV |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 1996-11-14 |
| Lead Free | Contains Lead |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 25.2V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 225mW |
| Max Surge Current | 694mA |
| Min Breakdown Voltage | 22.8V |
| Min Operating Temperature | -55°C |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Number of Lines | 4 |
| Number of Pins | 6 |
| Number of Terminals | 6 |
| Number of Unidirectional Channels | 4 |
| Operating Supply Voltage | 18V |
| Packaging | Tape and Reel |
| Peak Pulse Current | 694mA |
| Peak Pulse Power | 150W |
| Peak Reverse Current | 75nA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| REACH SVHC | No |
| Reverse Standoff Voltage | 18V |
| RoHS | Non-Compliant |
| Termination | SMD/SMT |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

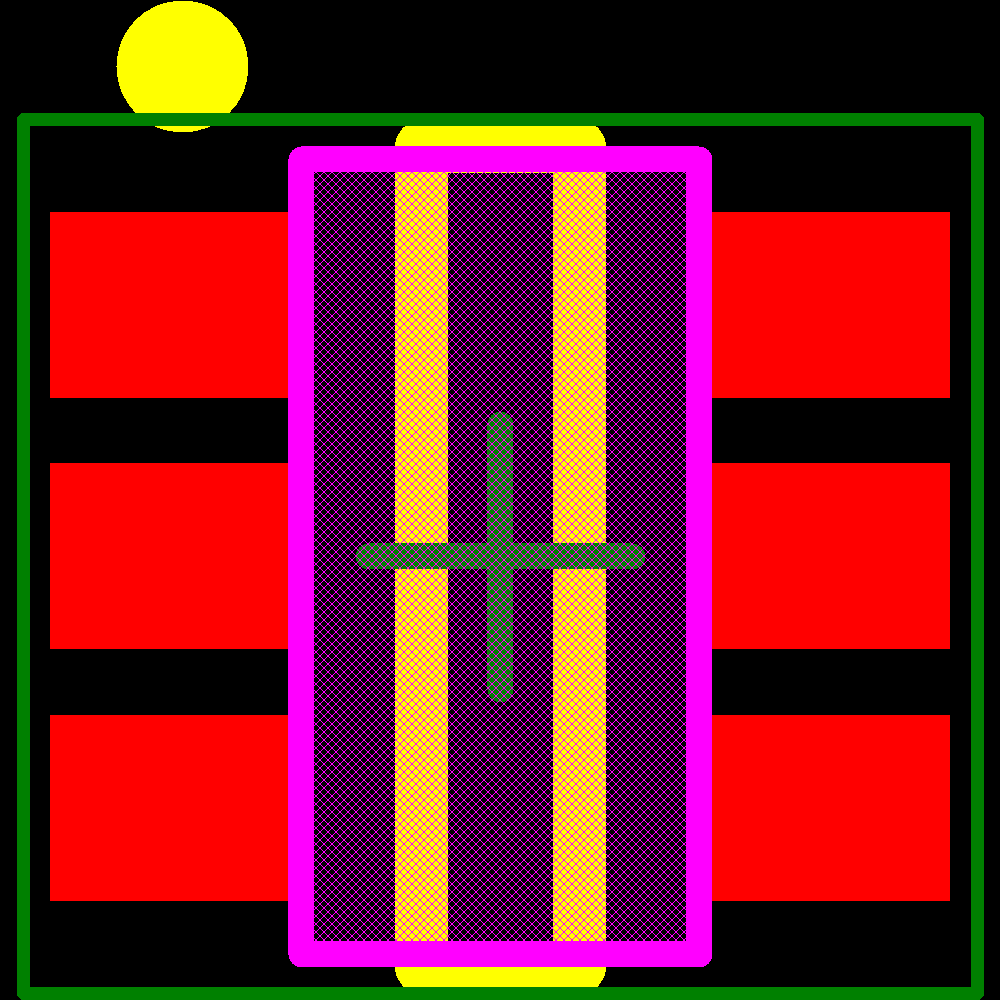

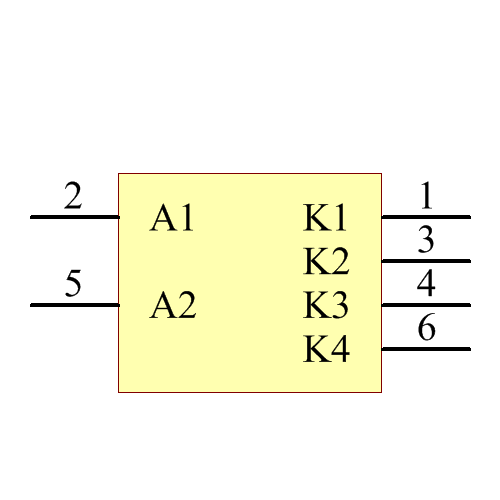

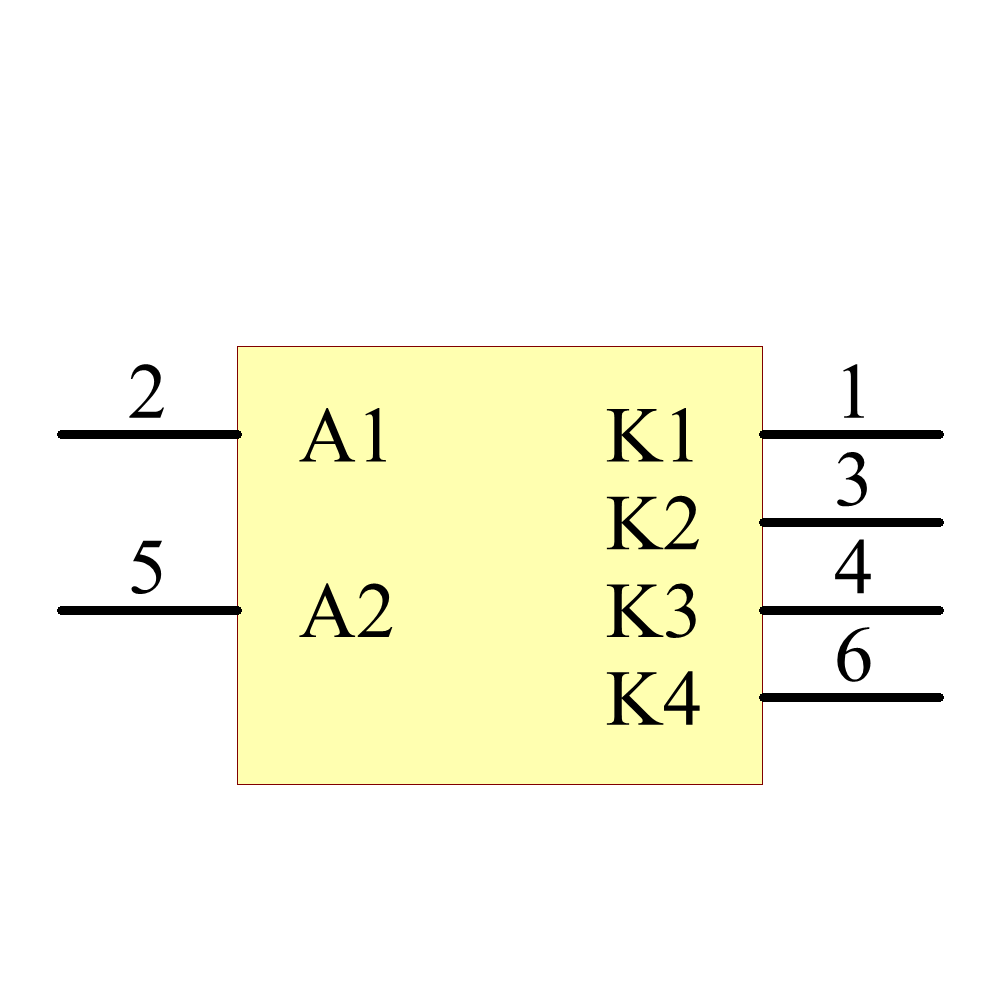

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| Bourns | Production | ||
| Diodes Inc. | Production | ||
| Wurth Elektronik | Unknown | ||
| STMicroelectronics | Obsolete | ||
| onsemi | Production | ||
| Semtech | Production | ||
| Texas Instruments | Production |
