MMQA6V8T1 - onsemi
Trans Voltage Suppressor Diode, 150W, 4.3V V(RWM), Unidirectional, 4 Element, Silicon
Technical Details
| Breakdown Voltage | 6.8V |
| Capacitance | 250pF |
| Case/Package | SC |
| China RoHS | Non-Compliant |
| Clamping Voltage | 9.8V |
| Composition | Zener |
| Depth | 1.5mm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Forward Voltage | 900mV |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 1996-11-14 |
| Lead Free | Contains Lead |
| Leakage Current | 500nA |
| Length | 3mm |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 7.14V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 225mW |
| Max Surge Current | 2.45A |
| Min Breakdown Voltage | 6.46V |
| Min Operating Temperature | -55°C |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Number of Lines | 4 |
| Number of Pins | 6 |
| Number of Terminals | 6 |
| Number of Unidirectional Channels | 4 |
| Operating Supply Voltage | 4.3V |
| Packaging | Tape and Reel |
| Peak Pulse Current | 2.45A |
| Peak Pulse Power | 150W |
| Peak Reverse Current | 500nA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Power Rating | 24W |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Standoff Voltage | 4.3V |
| RoHS | Non-Compliant |
| Termination | SMD/SMT |
| Voltage Rating (DC) | 6.8V |
| Width | 1.5mm |
| Working Voltage | 4.3V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

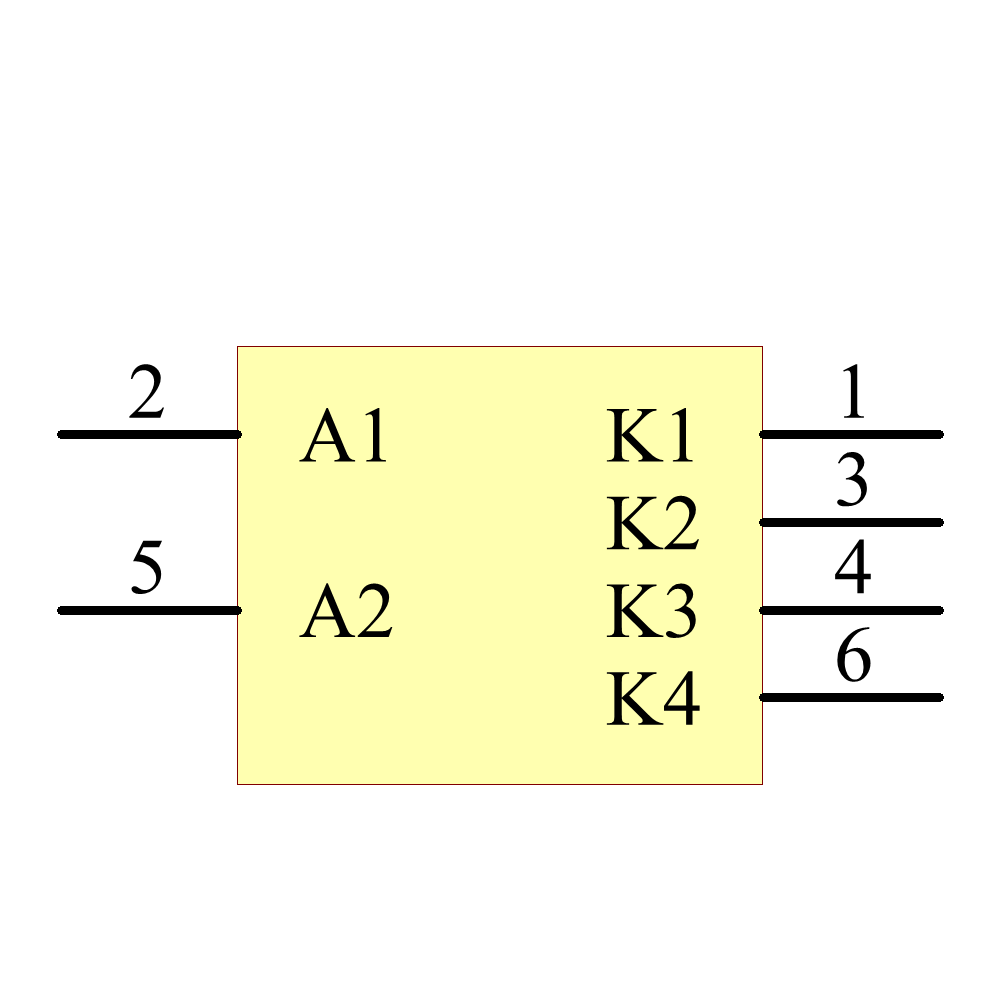

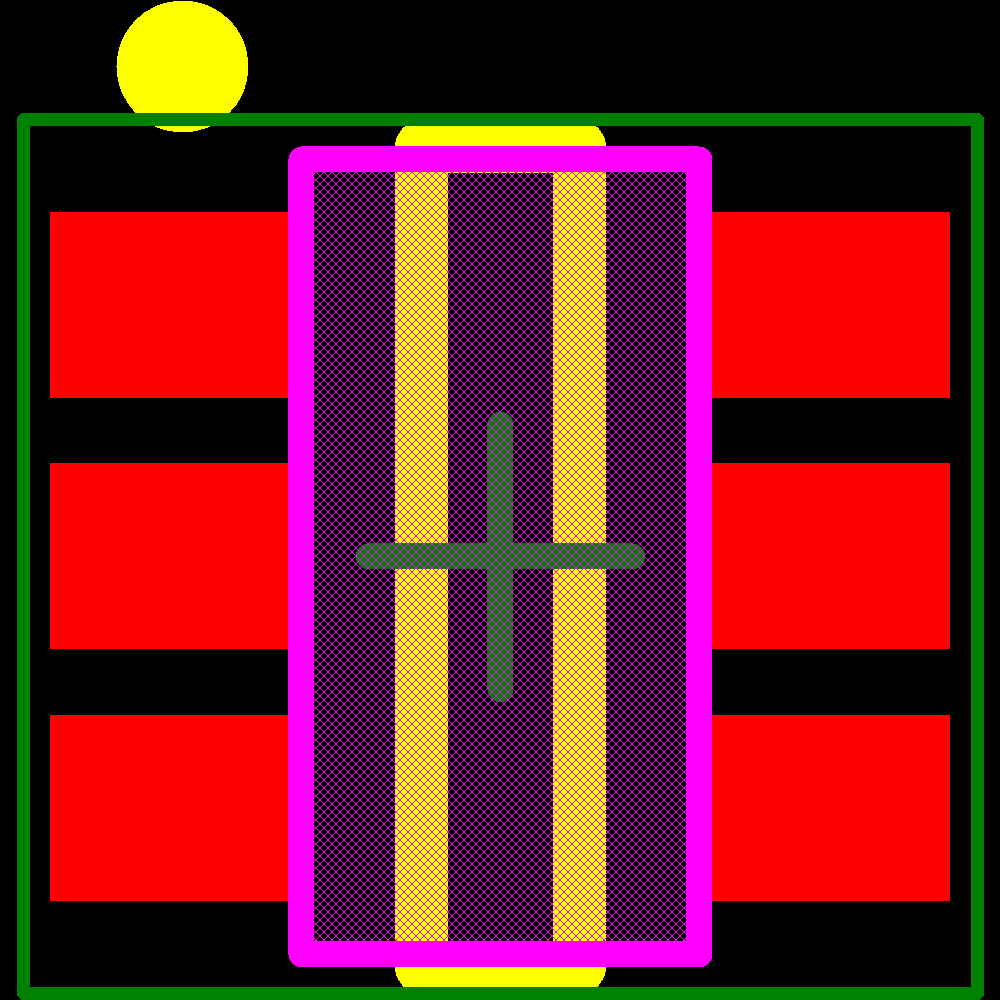

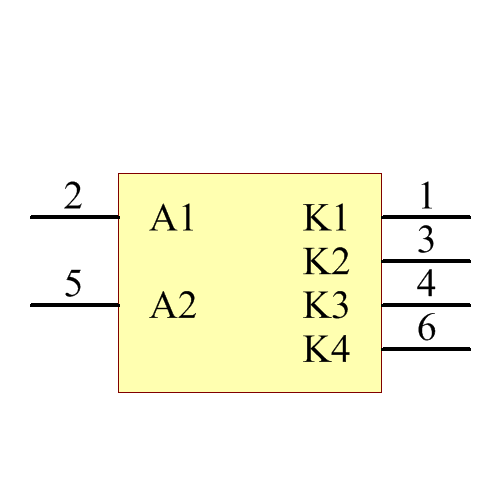

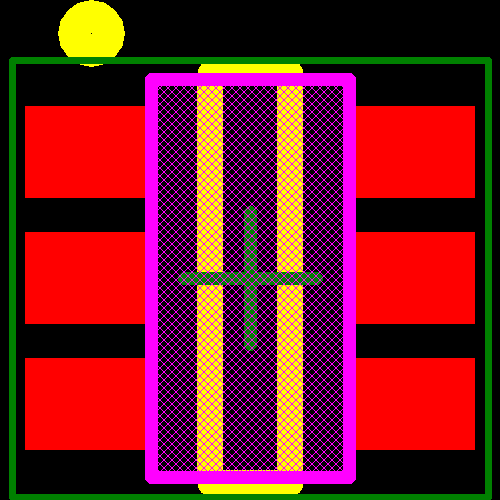

Images
