MMQA6V8T1G - onsemi
MMQA Series 7.14 V 150 W Unidirectional Zener Transient Voltage Suppressor SC-74
Technical Details
| Breakdown Voltage | 6.8V |
| Capacitance | 250pF |
| Case/Package | SC |
| China RoHS | Compliant |
| Clamping Voltage | 9.8V |
| Composition | Zener |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Depth | 1.5mm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Common Anode |
| ESD Protection | Yes |
| Forward Voltage | 900mV |
| Halogen Free | Halogen Free |
| Height | 1mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 1999-12-01 |
| Lead Free | Lead Free |
| Leakage Current | 500nA |
| Length | 3mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Breakdown Voltage | 7.14V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 225mW |
| Max Reverse Leakage Current | 500nA |
| Max Surge Current | 2.45A |
| Min Breakdown Voltage | 6.46V |
| Min Operating Temperature | -55°C |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Number of Pins | 6 |
| Number of Terminals | 6 |
| Number of Unidirectional Channels | 4 |
| Operating Supply Voltage | 4.3V |
| Packaging | Tape and Reel |
| Peak Pulse Current | 2.45A |
| Peak Pulse Power | 150W |
| Peak Reverse Current | 500nA |
| Polarity | Unidirectional |
| Power Dissipation | 150W |
| Power Line Protection | No |
| Power Rating | 24W |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 4.3V |
| RoHS | Compliant |
| Schedule B | 8536300000, 8536300000|8536300000|8536300000|8536300000|8536300000 |
| Termination | SMD/SMT |
| Test Current | 1mA |
| Voltage Rating (DC) | 6.8V |
| Width | 1.7mm |
| Working Voltage | 4.3V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

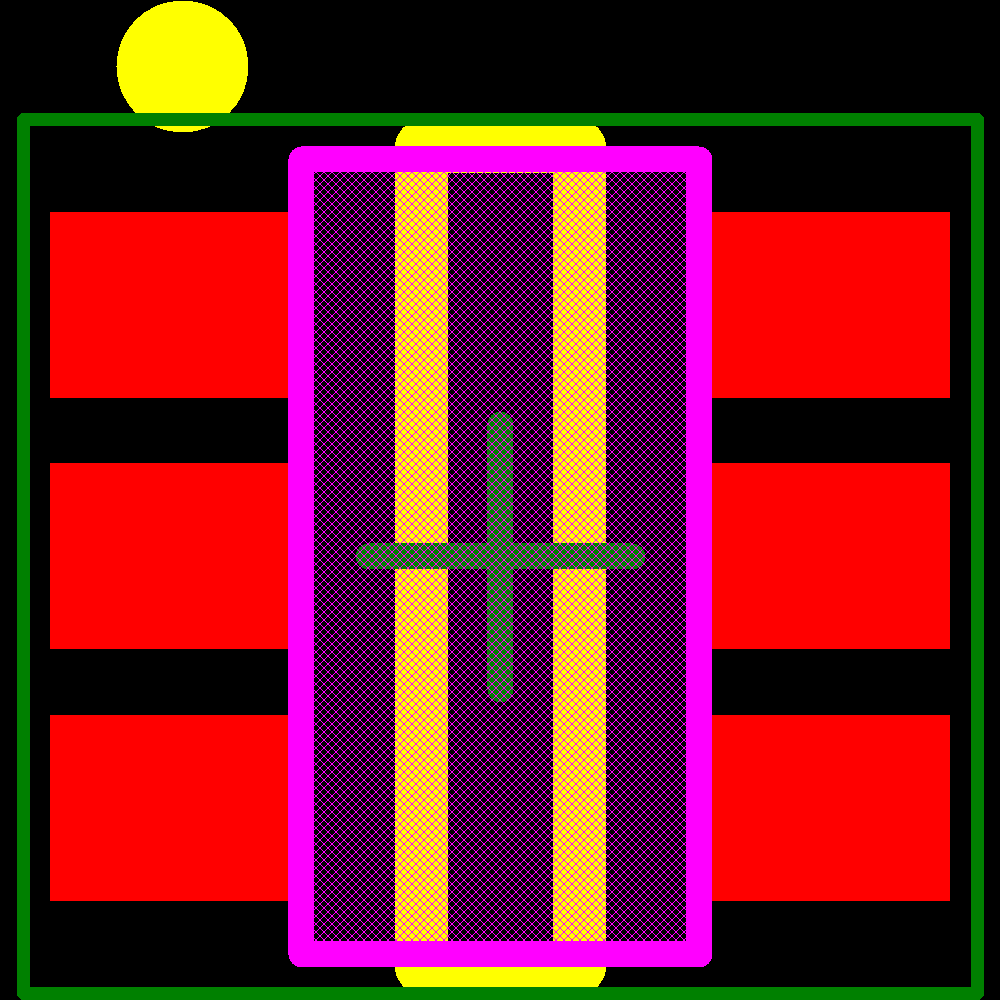

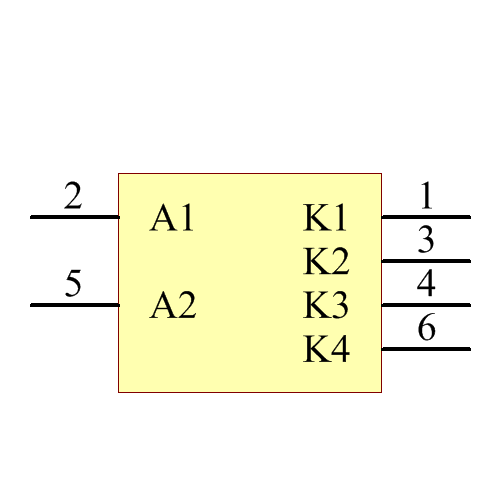

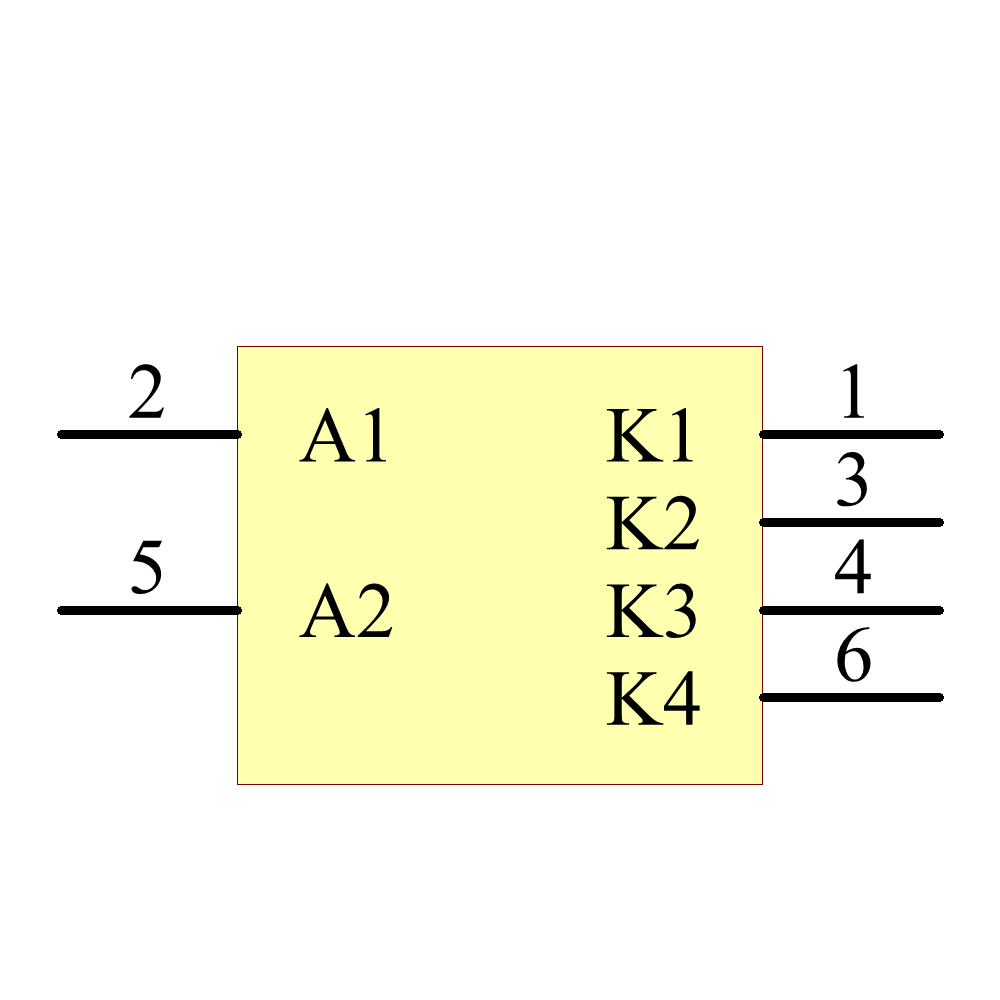

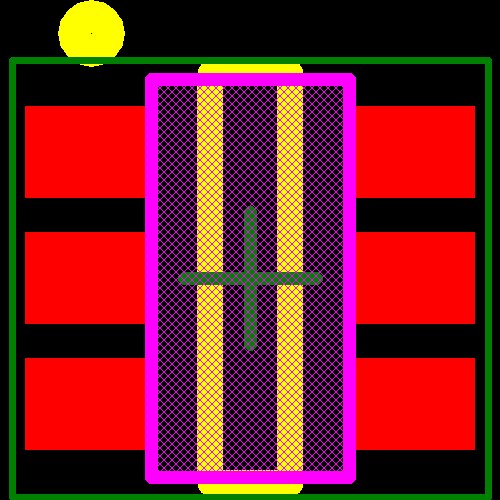

Images
