Technical Details
| Case/Package | SOD-123-2 |
| China RoHS | Non-Compliant |
| Country of Origin | Malaysia |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Impedance | 5Ω |
| Introduction Date | 1998-08-19 |
| Lead Free | Contains Lead |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Material | Plastic |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 500mW |
| Max Reverse Leakage Current | 3µA |
| Min Operating Temperature | -55°C |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Tape and Reel |
| Peak Reverse Current | 3µA |
| Polarity | Unidirectional |
| Power Dissipation | 500mW |
| Power Rating | 500mW |
| REACH SVHC | No |
| Reference Voltage | 6.8V |
| Reverse Standoff Voltage | 5V |
| RoHS | Compliant |
| Voltage Rating (DC) | 6.8V |
| Voltage Tolerance | 5% |
| Zener Current | 20mA |
| Zener Voltage | 6.8V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

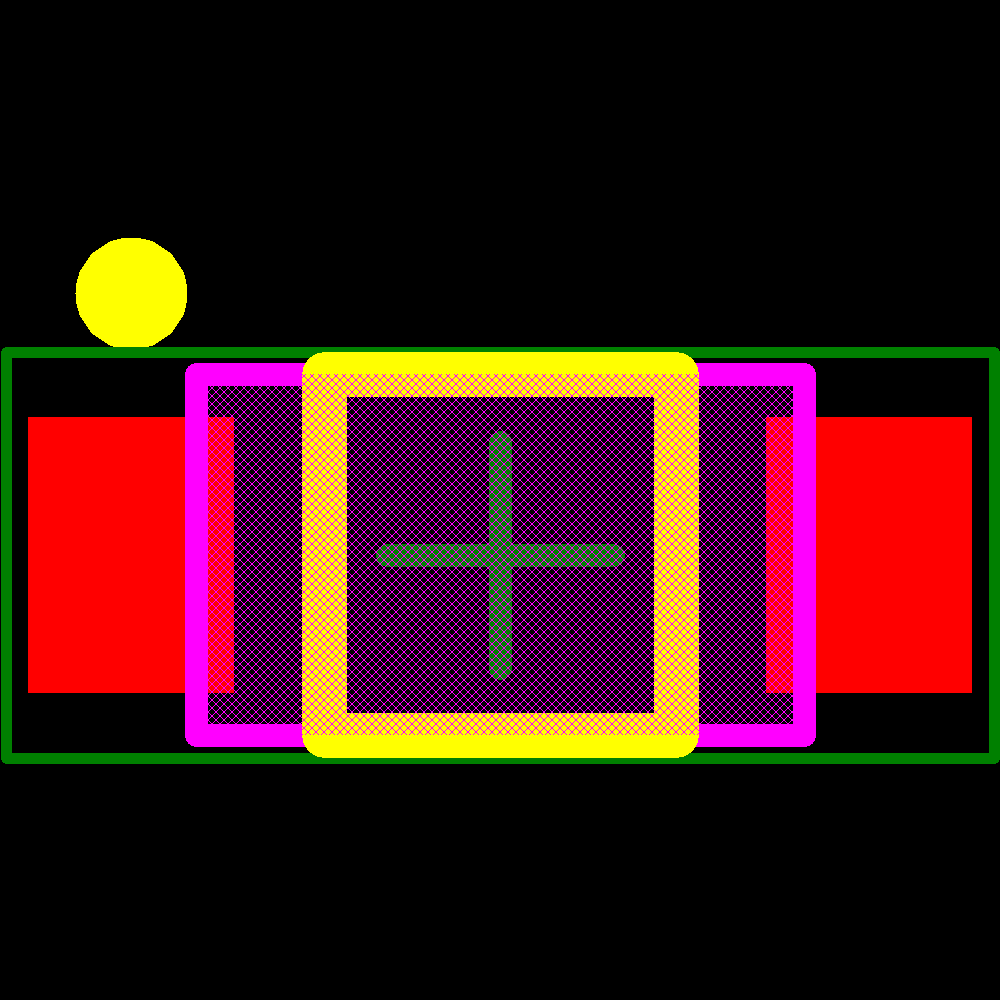

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| onsemi | Production | ||
| Central Semiconductor | Production | ||
| ROHM | Obsolete | ||
| Multicomp | Production | ||
| Central Semiconductor | Unknown | ||
| Vishay | Obsolete | ||
| Diodes Inc. | Production | ||
| onsemi | Production | ||
| MCC | Unknown |
