Optoelectronics  >  Optocouplers

onsemi - MOCD217M

MOCD217M - onsemi

Optocoupler, Transistor Output, 2 Channel, SOIC, 8 Pins, 60 mA, 2.5 kV, 100 %

 Datasheets

Technical Details

Ambient Temperature Range High 100°C
Case/Package SOIC
China RoHS Compliant
Collector Emitter Breakdown Voltage 30V
Collector Emitter Saturation Voltage 400mV
Collector Emitter Voltage (VCEO) 30V
Country of Origin Thailand
Current Transfer Ratio 100%
Dark Current 50nA
Export Control Classification Number (ECCN) Code EAR99
Forward Current 60mA
Forward Voltage 1.3V
Height 3.63mm
Harmonized Tariff Schedule (HTS) Code 8541.40.80.00
Input Current 10mA
Introduction Date 2002-04-01
Isolation Voltage 2500Vrms
Lead Free Lead Free
Length 5.13mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Collector Current 150mA
Max Input Current 60mA
Max Junction Temperature (Tj) 125°C
Max Operating Temperature 100°C
Max Output Voltage 30V
Max Power Dissipation 150mW
Min Operating Temperature -40°C
Mount Surface Mount
Number of Channels 2
Number of Circuits 2
Number of Elements 2
Number of Pins 8
Output Current per Channel 150mA
Output Voltage 30V
Power Dissipation 240mW
Radiation Hardening No
REACH SVHC Yes
Reverse Breakdown Voltage 6V
Reverse Voltage 6V
Reverse Voltage (DC) 6V
Rise Time 7.5µs
RoHS Compliant
Schedule B 8541408000, 8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|85
Test Voltage 3kV
Turn-Off Delay Time 5.7µs
Turn-On Delay Time 7.5µs
Voltage Rating (DC) 30V
Weight 252mg

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

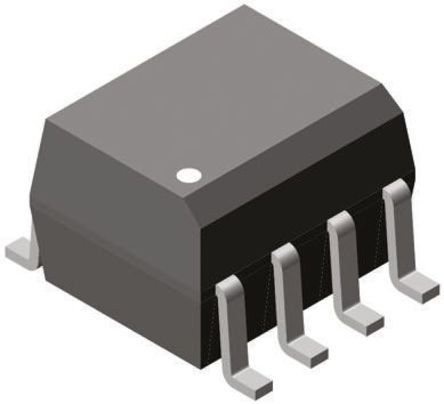

Images

onsemi MOCD217M | Future Electronics

Future Electronics

Datasheets

 Future Electronics
 Future Electronics
 RS

Lifecycle Status Indicator

   Production
Symbol

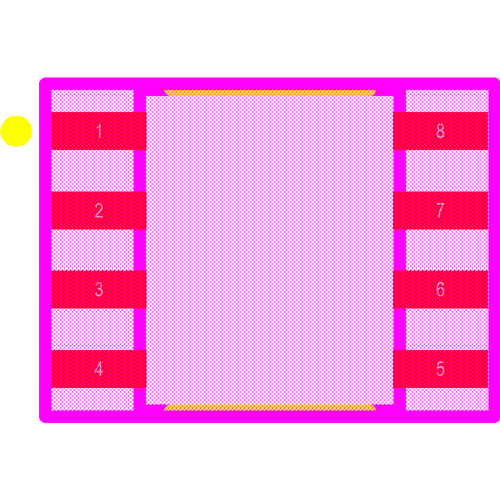

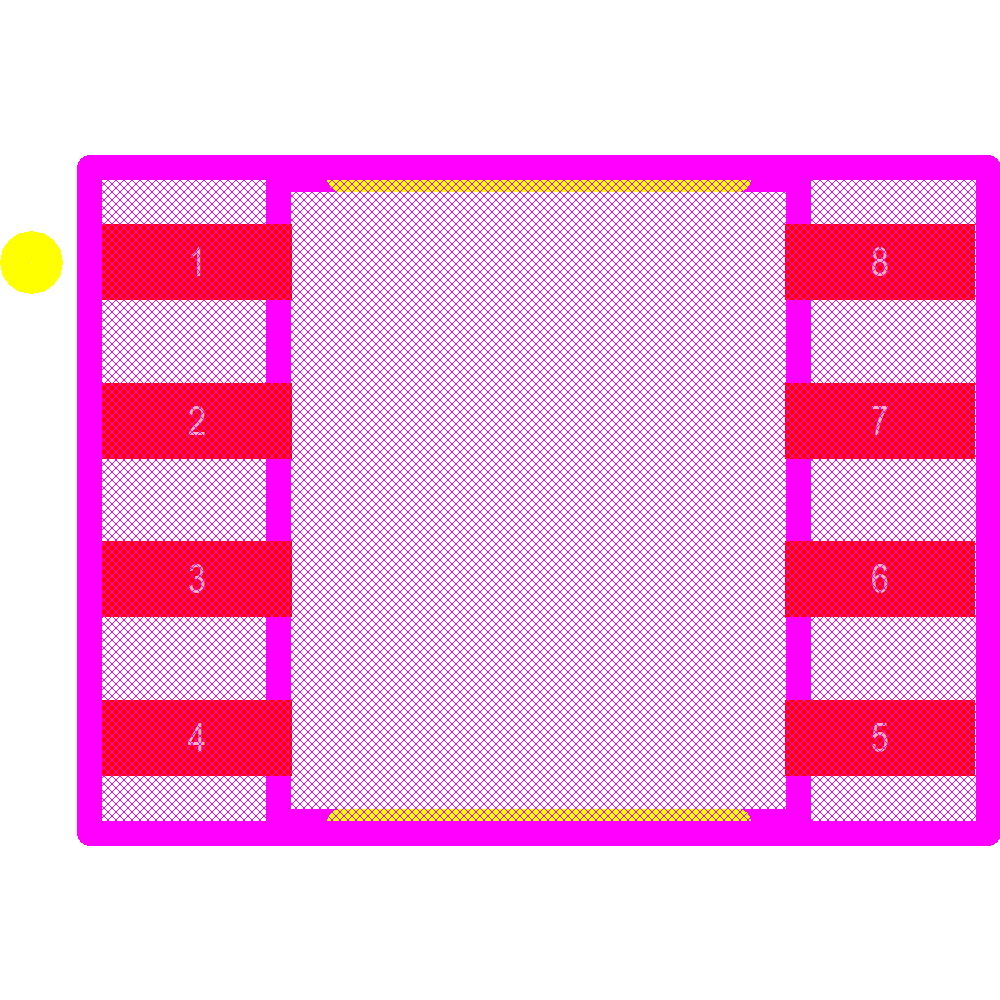

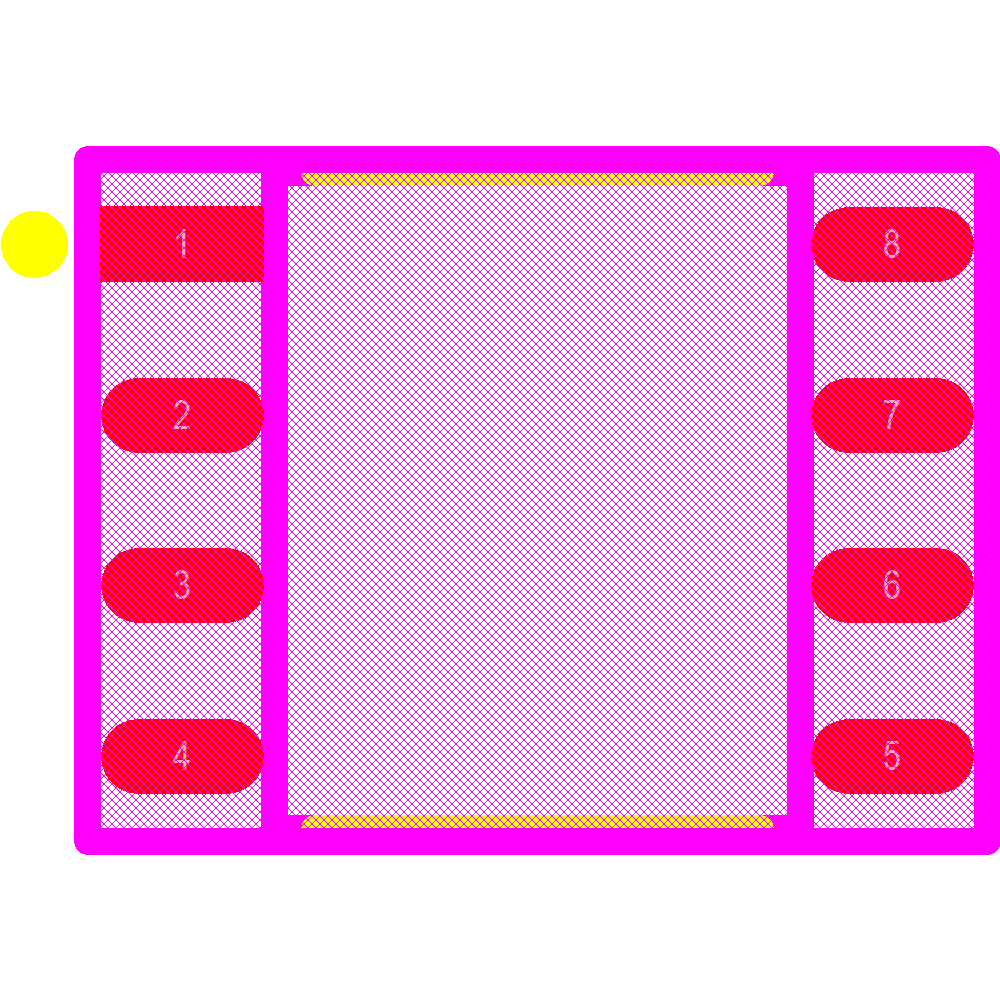

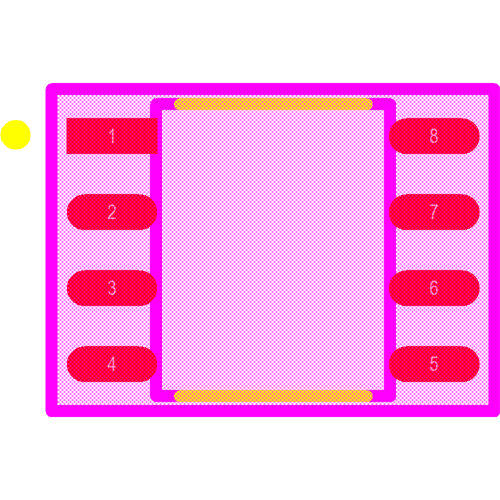

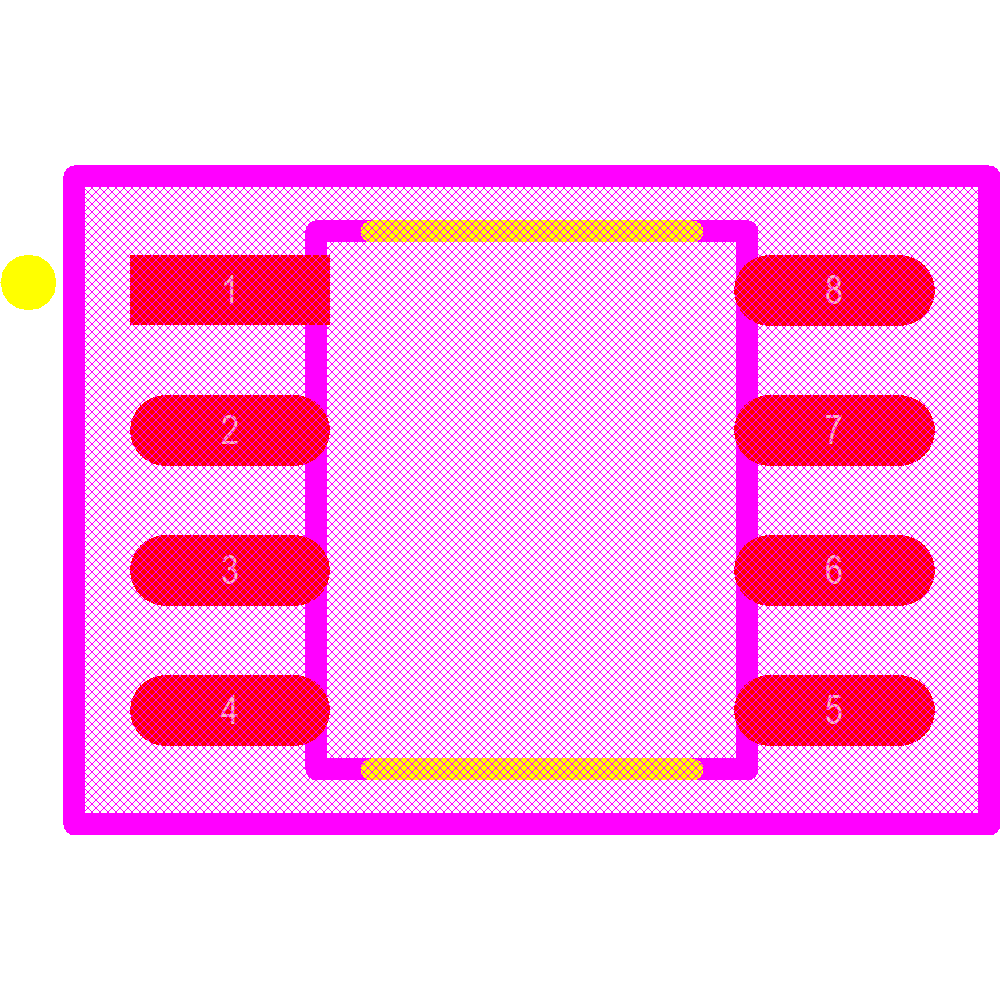

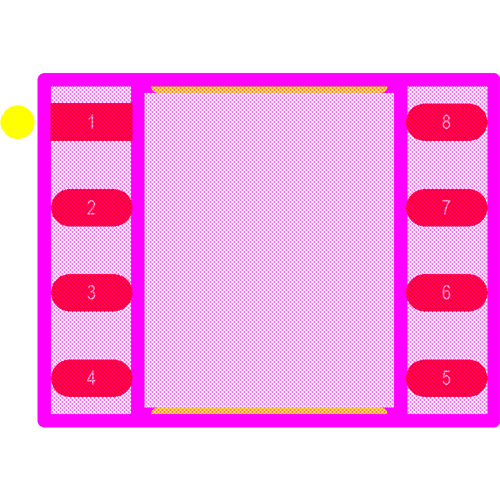

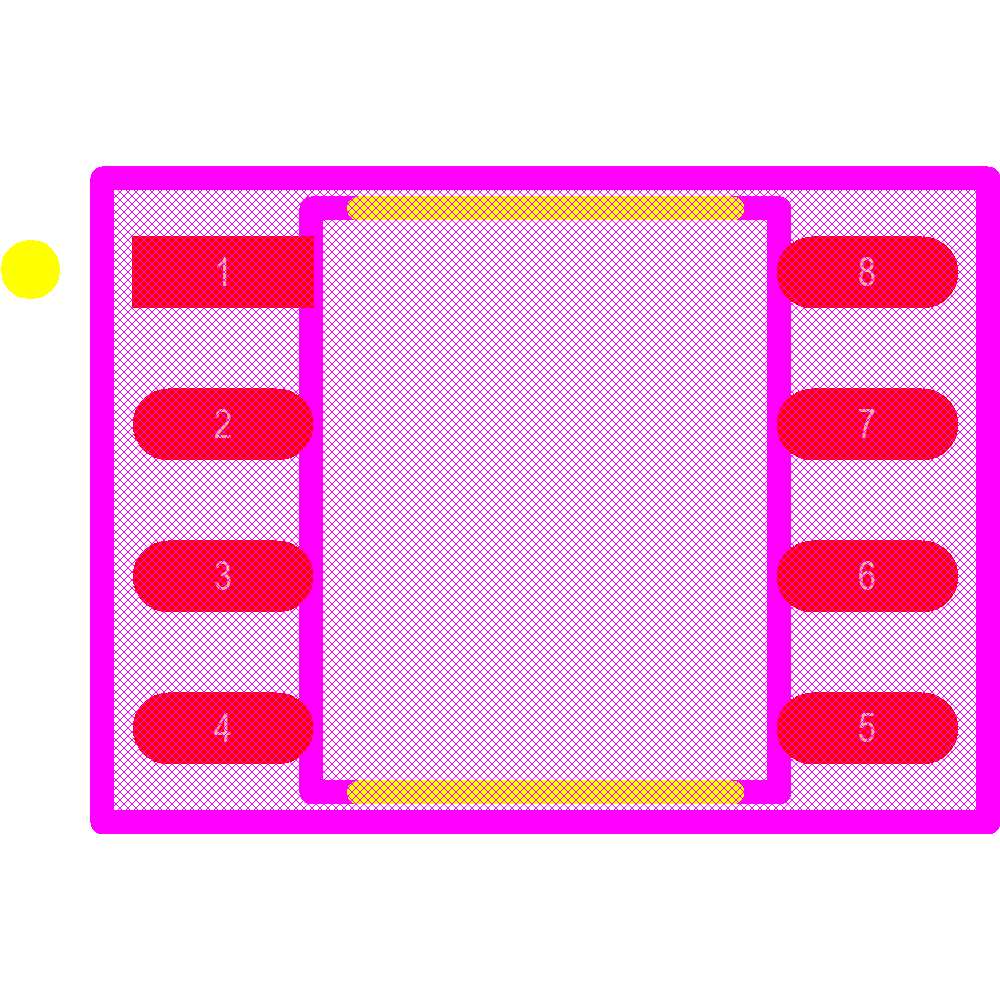

Footprint

Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Future Electronics
9961731
CA: 41535
 $ 0.23 0.22 0.21
 Historical Pricing  Historical Stock Levels
Quantity
Location
Future Electronics
9186557
CA: 6200
 $ 0.23 0.22 0.21
 Historical Pricing  Historical Stock Levels
Quantity
Location
RS
9175532P
DE: 4909
 $ 0.3501 0.2934 0.2934
 Historical Pricing  Historical Stock Levels
Quantity
Location
RS
1784821
DE: 4909
 $ 0.4721 0.4721 0.4721
 Historical Pricing  Historical Stock Levels
Quantity
Location
RS
9175532
DE: 50
 $ 0.4093 0.4093 0.3501 0.2934 0.2934
 Historical Pricing  Historical Stock Levels
Quantity
Location
Farnell
1021374
DE: 6797
 $ 1.0096 0.5325 0.5141 0.5054 0.4204 0.4204
 Historical Pricing  Historical Stock Levels
Quantity
Location
Master Electronics
MOCD217M
US: 6800
 $ 0.3191 0.3191 0.2885 0.2666
 Historical Pricing  Historical Stock Levels
Quantity
Location
Onlinecomponents.com
MOCD217M
US: 6800
 $ 0.3191 0.3191 0.2885 0.2666
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet
67K0805
US: 23291
 $ 0.904 0.507 0.507 0.484 0.384 0.364
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet
MOCD217M
US: 5347
 $ 0.2414 0.2262 0.2228 0.2228 0.2228 0.2228
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet
MOCD217M
US: 3910
 $ 0.2987
 Historical Pricing  Historical Stock Levels
Quantity
Location
Arrow Electronics
MOCD217M
US: 28267
 $ 0.2509
 Historical Pricing  Historical Stock Levels
Quantity
Location
Arrow Electronics
MOCD217M
US: 27750
 $ 0.2456 0.2456 0.2456 0.2456 0.2456 0.2456
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
MOCD217M
US: 27000
 $ 0.2509
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
MOCD217M
US: 15960
 $ 0.3746 0.3708 0.2778 0.2729
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
MOCD217M-ND
DE: 9904
 $ 0.9862 0.9862 0.554 0.9862 0.401 0.3384
 Historical Pricing  Historical Stock Levels
Quantity
Location
Flip Electronics
MOCD217M
US: 15910
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Mouser
512-MOCD217M
US: 6467
 $ 0.85 0.445 0.445 0.415 0.333 0.301
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet Silica
MOCD217M
EU: 12000
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
EBV Elektronik
MOCD217M
EU: 0
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
element14 APAC
1021374
SG: 14604
 $ 0.9106 0.4773 0.4606 0.4523 0.3764 0.3764
 Historical Pricing  Historical Stock Levels
Quantity
Location
element14 APAC
2127663
SG: 0
 $ 0.9258 0.4864 0.4697 0.4614 0.384 0.384
 Historical Pricing  Historical Stock Levels
Quantity
Location
Newark
MOCD217M
US: 0
 $ 0.982 0.563 0.563 0.53 0.396 0.383
 Historical Pricing  Historical Stock Levels
Quantity
Location
