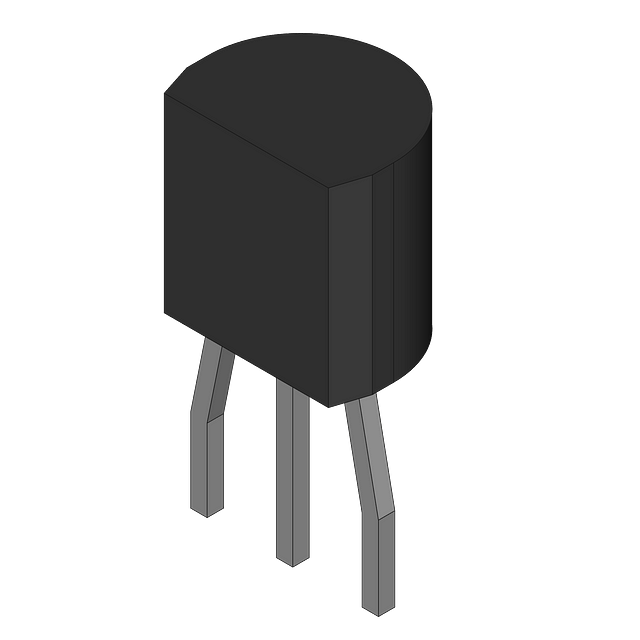

MPS4250ARLRM - onsemi
Small Signal Bipolar Transistor, 40V V(BR)CEO, 1-Element, PNP, Silicon, TO-92
Technical Details
| Case/Package | TO-92-3 |
| China RoHS | Non-Compliant |
| Collector Base Voltage (VCBO) | -40V |
| Collector Emitter Breakdown Voltage | 40V |
| Collector Emitter Saturation Voltage | -250mV |
| Collector Emitter Voltage (VCEO) | 40V |
| Current Rating | -10mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| hFE Min | 250 |
| Introduction Date | 1997-04-23 |
| Lead Free | Contains Lead |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 40V |
| Max Collector Current | 50mA |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 625mW |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Polarity | PNP |
| Power Dissipation | 625W |
| REACH SVHC | No |
| RoHS | Non-Compliant |
| Voltage Rating (DC) | -40V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
Images
Rochester Electronics
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 30000
|
$ | 0.0529 | 0.0439 | 0.0391 | |||||
| Verical |
US: 16000
|
$ | 0.0489 | |||||||
| Verical |
US: 14000
|
$ | 0.0489 | |||||||
