onsemi - MSD602-RT1G

MSD602-RT1G - onsemi

Small Signal Bipolar Transistor, 0.5A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon

 Datasheets

Technical Details

Case/Package SC
China RoHS Compliant
Collector Base Voltage (VCBO) 60V
Collector Emitter Breakdown Voltage 50V
Collector Emitter Voltage (VCEO) 50V
Contact Plating Tin
Country of Origin Mainland China
Current Rating 100mA
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Single
Emitter Base Voltage (VEBO) 7V
hFE Min 40
Introduction Date 1996-07-29
Lead Free Lead Free
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Breakdown Voltage 50V
Max Collector Current 500mA
Max Operating Temperature 150°C
Max Power Dissipation 200mW
Min Operating Temperature -55°C
Number of Elements 1
Number of Pins 3
Number of Terminals 3
Packaging Tape and Reel
Polarity NPN
Power Dissipation 200mW
Radiation Hardening No
REACH SVHC Yes
RoHS Compliant
Schedule B 8541210080, 8541210080|8541210080, 8541210080|8541210080|8541210080, 8541210080|8541210080|8541210080|8541210080
Voltage Rating (DC) 50V

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

onsemi MSD602-RT1G | Future Electronics

Future Electronics

Datasheets

 Future Electronics
 Future Electronics
 Avnet

Lifecycle Status Indicator

   Production
Symbol

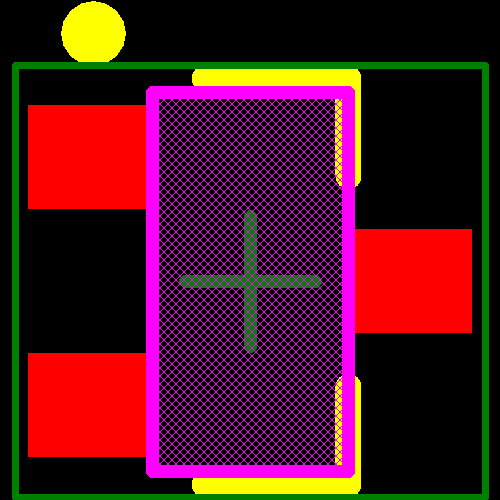

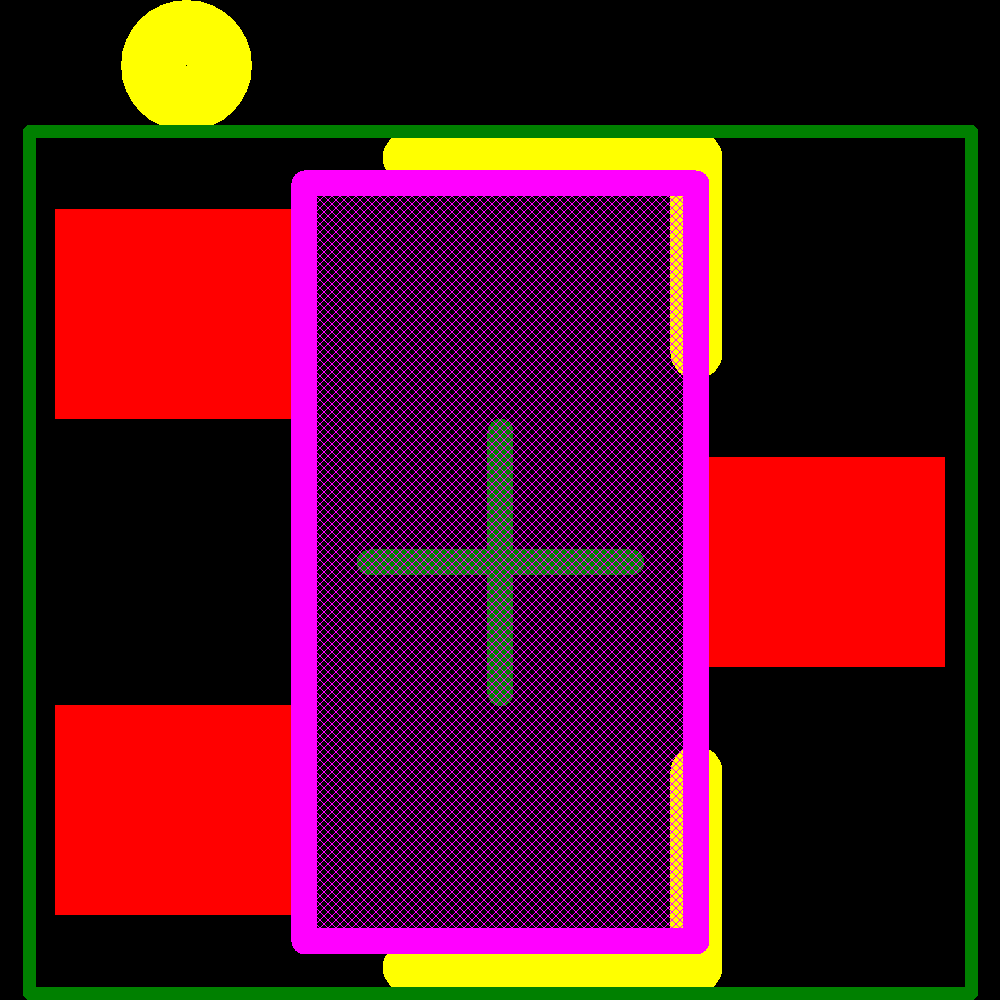

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
onsemi
MSD602-RT1
Obsolete
onsemi
MSD602-RT2
Obsolete
ROHM
MMST6428
Production
ROHM
BFS17T116
EOL
ROHM
2SC4128
Obsolete
ROHM
2SC4997
Obsolete
ROHM
2SD1484KT146R
Production
ROHM
2SC4642K
Obsolete
ROHM
2SC4699K
Obsolete
Sanyo
2SC4402-3
Obsolete

See more alternatives See less alternatives
