MSQA6V1W5T2 - onsemi
5-TSSOP SC-70-5SOT-353 4 Surface Mount 4 Zener Tvs Diode 6.1V 150W 90pF @ 1MHz -55C~150C TJ
Technical Details
| Breakdown Voltage | 6.6V |
| Case/Package | SOT-353 |
| China RoHS | Non-Compliant |
| Composition | Zener |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Forward Voltage | 1.25V |
| Height | 1.1mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2000-09-01 |
| Lead Free | Contains Lead |
| Length | 2.2mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Breakdown Voltage | 7.2V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 385mW |
| Min Breakdown Voltage | 6.1V |
| Min Operating Temperature | -55°C |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Number of Pins | 5 |
| Number of Terminals | 5 |
| Number of Unidirectional Channels | 4 |
| Operating Supply Voltage | 3V |
| Packaging | Tape and Reel |
| Peak Pulse Power | 150W |
| Peak Reverse Current | 1µA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Power Rating | 150W |
| REACH SVHC | No |
| Reverse Standoff Voltage | 3V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Voltage Rating (DC) | 6.6V |
| Width | 1.35mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

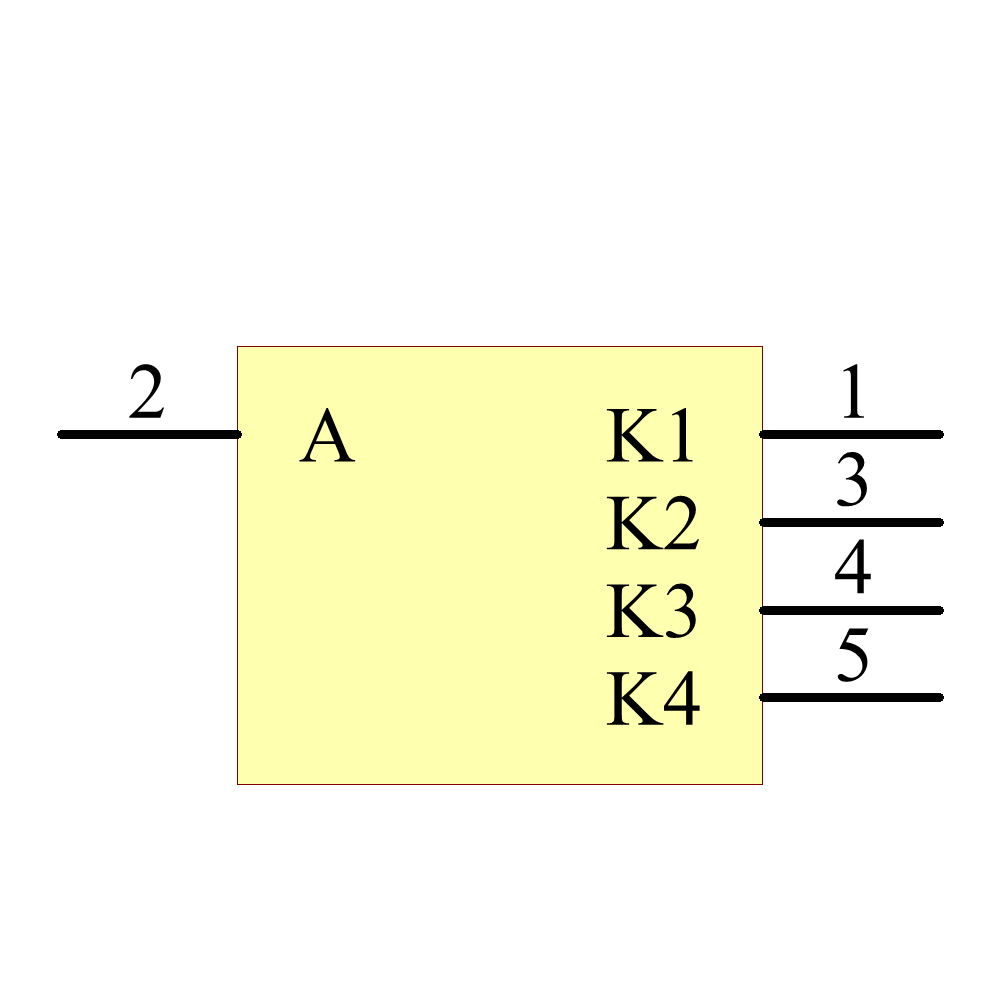

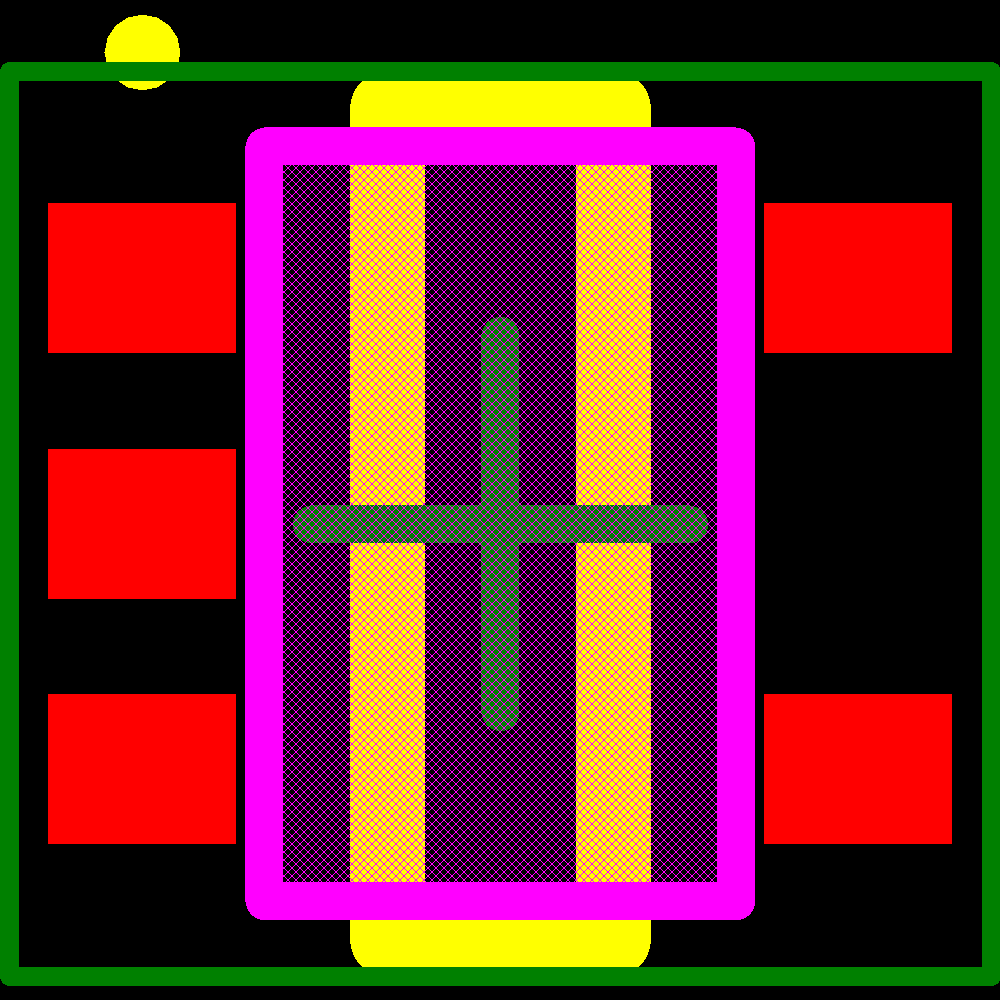

Images
